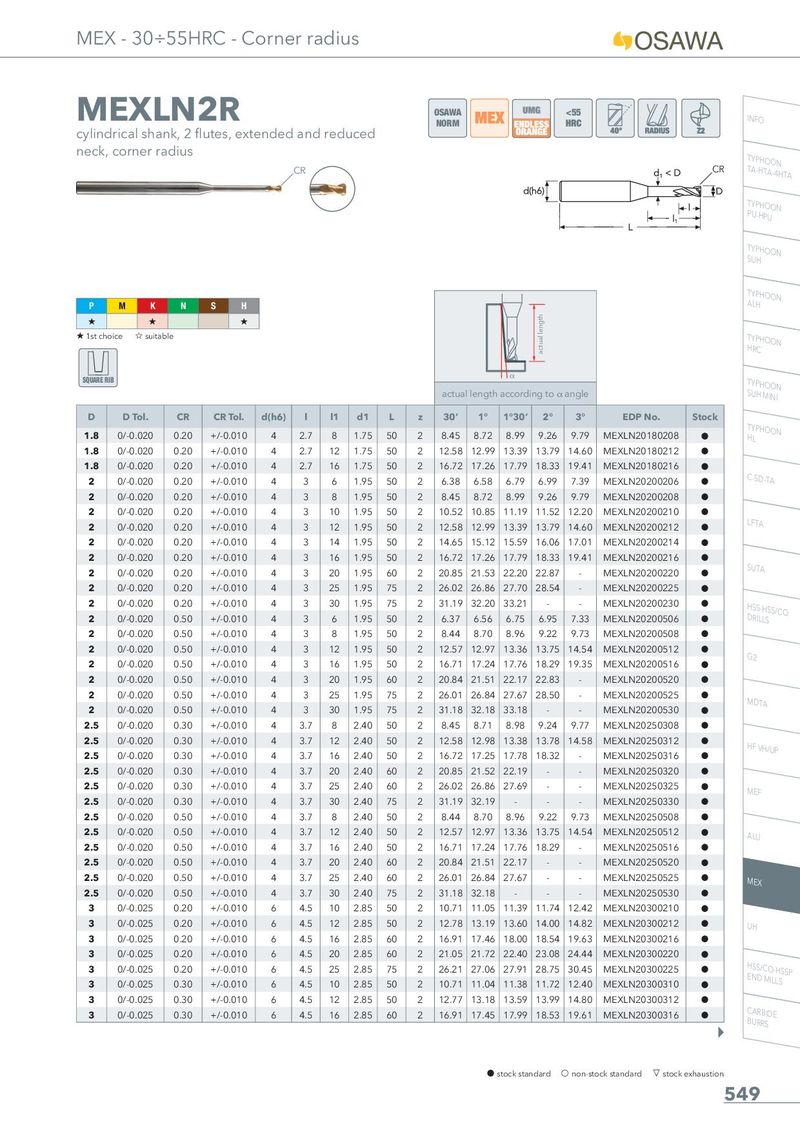

MEX - 30÷55HRC - Corner radius MEXLN2R OSAWA <55 INFO NORM cylindrical shank, 2 flutes, extended and reduced neck, corner radius TTYAP-HHTOAO-4NHTA CR CR TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + actual length + 1st choice , suitable THYRPCHOON SQUARE RIB α TSUYPHHMOIONIN actual length according to _ angle D D Tol. CR CR Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock 1.8 0/-0.020 0.20 +/-0.010 4 2.7 8 1.75 50 2 8.45 8.72 8.99 9.26 9.79 MEXLN20180208 h THYLPHOON 1.8 0/-0.020 0.20 +/-0.010 4 2.7 12 1.75 50 2 12.58 12.99 13.39 13.79 14.60 MEXLN20180212 h 1.8 0/-0.020 0.20 +/-0.010 4 2.7 16 1.75 50 2 16.72 17.26 17.79 18.33 19.41 MEXLN20180216 h 2 0/-0.020 0.20 +/-0.010 4 3 6 1.95 50 2 6.38 6.58 6.79 6.99 7.39 MEXLN20200206 h C-SD-TA 2 0/-0.020 0.20 +/-0.010 4 3 8 1.95 50 2 8.45 8.72 8.99 9.26 9.79 MEXLN20200208 h 2 0/-0.020 0.20 +/-0.010 4 3 10 1.95 50 2 10.52 10.85 11.19 11.52 12.20 MEXLN20200210 h 2 0/-0.020 0.20 +/-0.010 4 3 12 1.95 50 2 12.58 12.99 13.39 13.79 14.60 MEXLN20200212 h LFTA 2 0/-0.020 0.20 +/-0.010 4 3 14 1.95 50 2 14.65 15.12 15.59 16.06 17.01 MEXLN20200214 h 2 0/-0.020 0.20 +/-0.010 4 3 16 1.95 50 2 16.72 17.26 17.79 18.33 19.41 MEXLN20200216 h 2 0/-0.020 0.20 +/-0.010 4 3 20 1.95 60 2 20.85 21.53 22.20 22.87 - MEXLN20200220 h SUTA 2 0/-0.020 0.20 +/-0.010 4 3 25 1.95 75 2 26.02 26.86 27.70 28.54 - MEXLN20200225 h 2 0/-0.020 0.20 +/-0.010 4 3 30 1.95 75 2 31.19 32.20 33.21 - - MEXLN20200230 h HDSRSIL-LHSSS/CO 2 0/-0.020 0.50 +/-0.010 4 3 6 1.95 50 2 6.37 6.56 6.75 6.95 7.33 MEXLN20200506 h 2 0/-0.020 0.50 +/-0.010 4 3 8 1.95 50 2 8.44 8.70 8.96 9.22 9.73 MEXLN20200508 h 2 0/-0.020 0.50 +/-0.010 4 3 12 1.95 50 2 12.57 12.97 13.36 13.75 14.54 MEXLN20200512 h G2 2 0/-0.020 0.50 +/-0.010 4 3 16 1.95 50 2 16.71 17.24 17.76 18.29 19.35 MEXLN20200516 h 2 0/-0.020 0.50 +/-0.010 4 3 20 1.95 60 2 20.84 21.51 22.17 22.83 - MEXLN20200520 h 2 0/-0.020 0.50 +/-0.010 4 3 25 1.95 75 2 26.01 26.84 27.67 28.50 - MEXLN20200525 h MDTA 2 0/-0.020 0.50 +/-0.010 4 3 30 1.95 75 2 31.18 32.18 33.18 - - MEXLN20200530 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 8 2.40 50 2 8.45 8.71 8.98 9.24 9.77 MEXLN20250308 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 12 2.40 50 2 12.58 12.98 13.38 13.78 14.58 MEXLN20250312 h HF VH/UP 2.5 0/-0.020 0.30 +/-0.010 4 3.7 16 2.40 50 2 16.72 17.25 17.78 18.32 - MEXLN20250316 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 20 2.40 60 2 20.85 21.52 22.19 - - MEXLN20250320 h 2.5 0/-0.020 0.30 +/-0.010 4 3.7 25 2.40 60 2 26.02 26.86 27.69 - - MEXLN20250325 h MEF 2.5 0/-0.020 0.30 +/-0.010 4 3.7 30 2.40 75 2 31.19 32.19 - - - MEXLN20250330 h 2.5 0/-0.020 0.50 +/-0.010 4 3.7 8 2.40 50 2 8.44 8.70 8.96 9.22 9.73 MEXLN20250508 h 2.5 0/-0.020 0.50 +/-0.010 4 3.7 12 2.40 50 2 12.57 12.97 13.36 13.75 14.54 MEXLN20250512 h ALU 2.5 0/-0.020 0.50 +/-0.010 4 3.7 16 2.40 50 2 16.71 17.24 17.76 18.29 - MEXLN20250516 h 2.5 0/-0.020 0.50 +/-0.010 4 3.7 20 2.40 60 2 20.84 21.51 22.17 - - MEXLN20250520 h 2.5 0/-0.020 0.50 +/-0.010 4 3.7 25 2.40 60 2 26.01 26.84 27.67 - - MEXLN20250525 h MEX 2.5 0/-0.020 0.50 +/-0.010 4 3.7 30 2.40 75 2 31.18 32.18 - - - MEXLN20250530 h 3 0/-0.025 0.20 +/-0.010 6 4.5 10 2.85 50 2 10.71 11.05 11.39 11.74 12.42 MEXLN20300210 h 3 0/-0.025 0.20 +/-0.010 6 4.5 12 2.85 50 2 12.78 13.19 13.60 14.00 14.82 MEXLN20300212 h UH 3 0/-0.025 0.20 +/-0.010 6 4.5 16 2.85 60 2 16.91 17.46 18.00 18.54 19.63 MEXLN20300216 h 3 0/-0.025 0.20 +/-0.010 6 4.5 20 2.85 60 2 21.05 21.72 22.40 23.08 24.44 MEXLN20300220 h 3 0/-0.025 0.20 +/-0.010 6 4.5 25 2.85 75 2 26.21 27.06 27.91 28.75 30.45 MEXLN20300225 h HENSSD/CMOIL-LHSSSP 3 0/-0.025 0.30 +/-0.010 6 4.5 10 2.85 50 2 10.71 11.04 11.38 11.72 12.40 MEXLN20300310 h 3 0/-0.025 0.30 +/-0.010 6 4.5 12 2.85 50 2 12.77 13.18 13.59 13.99 14.80 MEXLN20300312 h 3 0/-0.025 0.30 +/-0.010 6 4.5 16 2.85 60 2 16.91 17.45 17.99 18.53 19.61 MEXLN20300316 h CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 549
