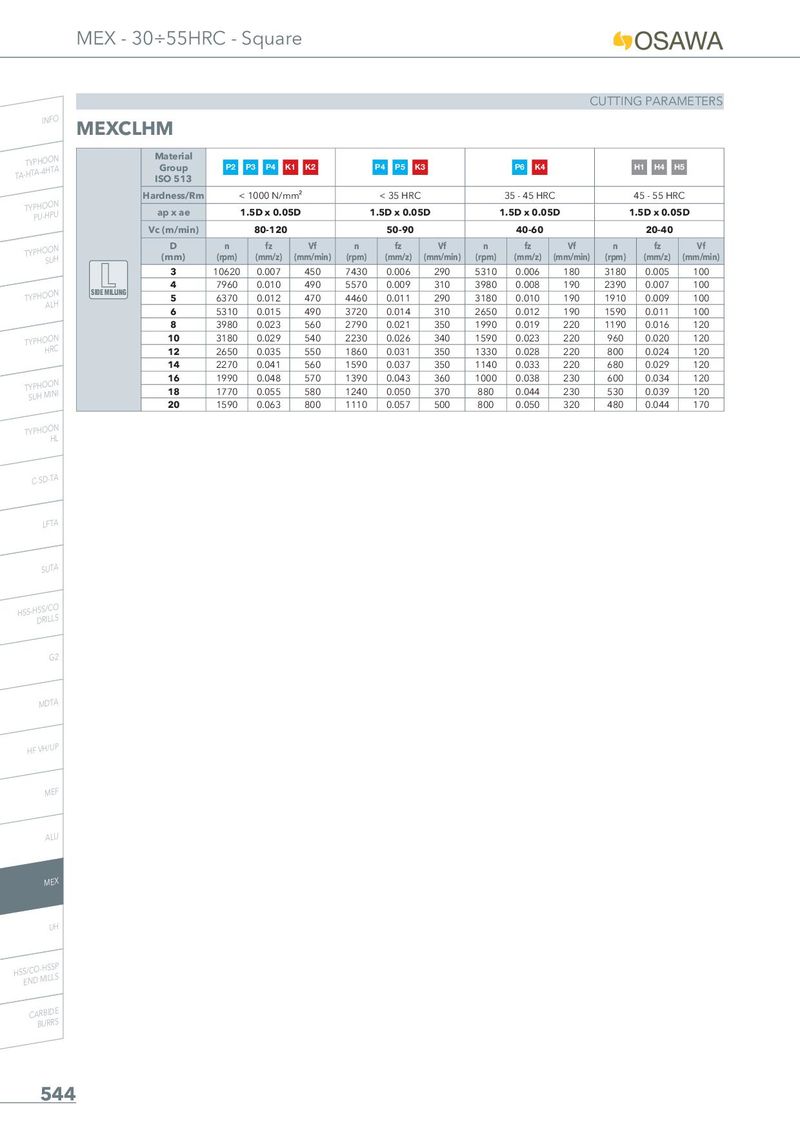

CUTTING PARAMETERS

INFO MEXCLHM

	Material Group ISO 513	P2	P3 P4 K	1 K2		P4 P5 K	3		P6 K4			H1 H4 H	5
	Hardness/Rm		1000 N/m	m²		< 35 HRC			35 - 45 HR	C		45 - 55 HR	C
	ap x ae	1	.5D x 0.05	D	1	.5D x 0.05	D	1	.5D x 0.05	D	1	.5D x 0.0	5D
	Vc (m/min)		80-120			50-90			40-60			20-40
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	3	10620	0.007	450	7430	0.006	290	5310	0.006	180	3180	0.005	100
	4	7960	0.010	490	5570	0.009	310	3980	0.008	190	2390	0.007	100
SIDE MILLING	5	6370	0.012	470	4460	0.011	290	3180	0.010	190	1910	0.009	100
	6	5310	0.015	490	3720	0.014	310	2650	0.012	190	1590	0.011	100
	8	3980	0.023	560	2790	0.021	350	1990	0.019	220	1190	0.016	120
	10	3180	0.029	540	2230	0.026	340	1590	0.023	220	960	0.020	120
	12	2650	0.035	550	1860	0.031	350	1330	0.028	220	800	0.024	120
	14	2270	0.041	560	1590	0.037	350	1140	0.033	220	680	0.029	120
	16	1990	0.048	570	1390	0.043	360	1000	0.038	230	600	0.034	120
	18	1770	0.055	580	1240	0.050	370	880	0.044	230	530	0.039	120
	20	1590	0.063	800	1110	0.057	500	800	0.050	320	480	0.044	170
