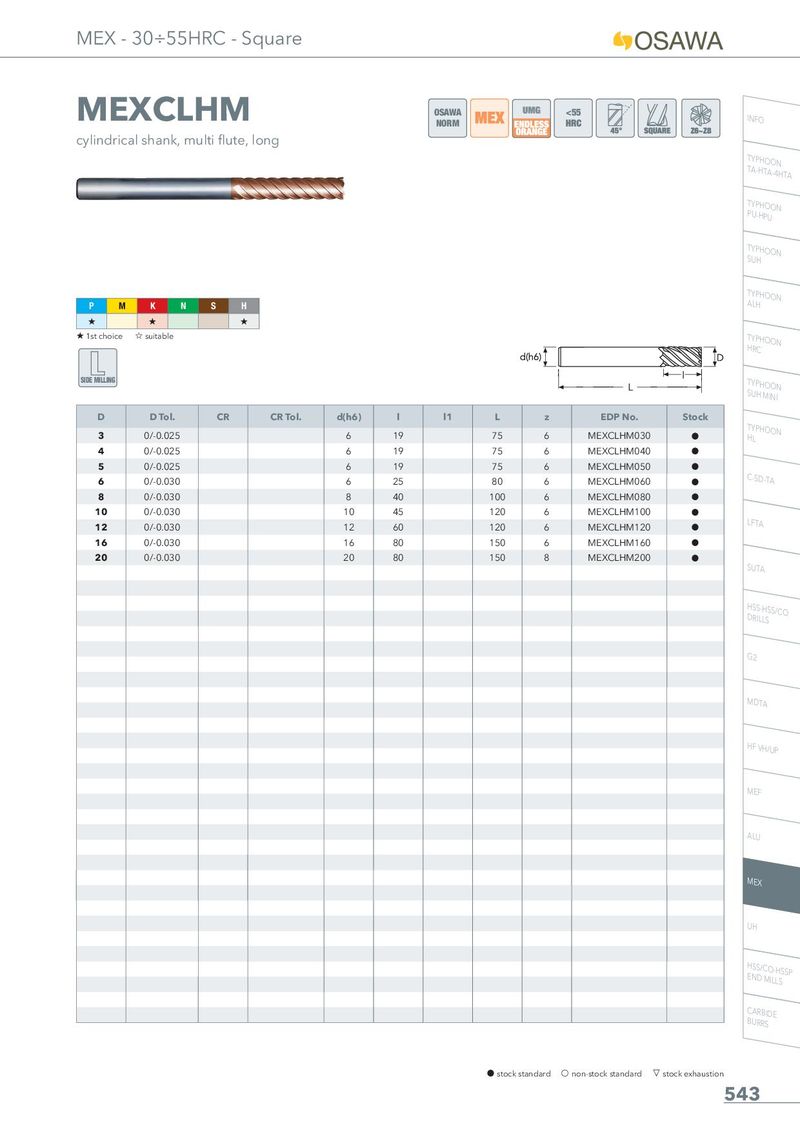

MEXCLHM
cylindrical shank, multi flute, long
OSAWA <55 NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S H | ||||||||
| � | � | � | ||||||||
| �1st choice | �suitable | |||||||||
| SIDE MILLING | ||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 3 | 0/-0.025 | 6 | 19 | 75 | 6 | MEXCLHM030 | h | |||
| 4 | 0/-0.025 | 6 | 19 | 75 | 6 | MEXCLHM040 | h | |||
| 5 | 0/-0.025 | 6 | 19 | 75 | 6 | MEXCLHM050 | h | |||
| 6 | 0/-0.030 | 6 | 25 | 80 | 6 | MEXCLHM060 | h | |||
| 8 | 0/-0.030 | 8 | 40 | 100 | 6 | MEXCLHM080 | h | |||
| 10 | 0/-0.030 | 10 | 45 | 120 | 6 | MEXCLHM100 | h | |||
| 12 | 0/-0.030 | 12 | 60 | 120 | 6 | MEXCLHM120 | h | |||
| 16 | 0/-0.030 | 16 | 80 | 150 | 6 | MEXCLHM160 | h | |||
| 20 | 0/-0.030 | 20 | 80 | 150 | 8 | MEXCLHM200 | h |
HRC
