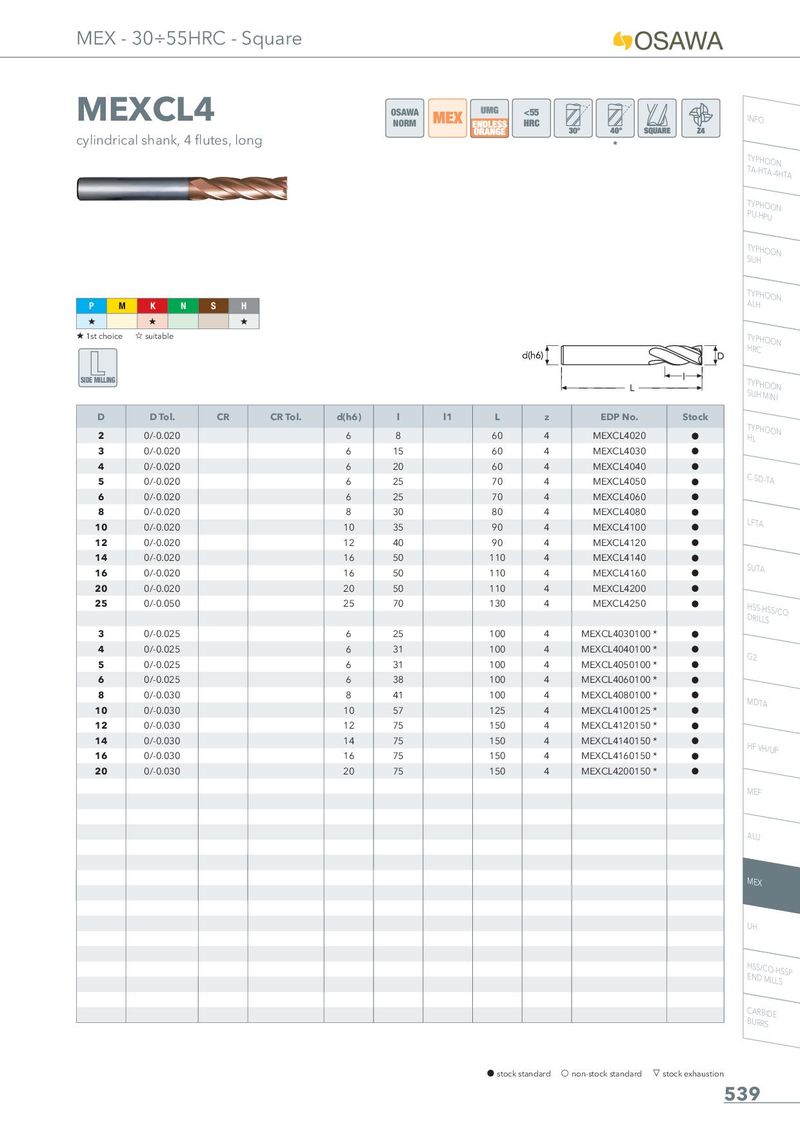

MEX - 30÷55HRC - Square MEXCL4 OSAWA <55 INFO NORM cylindrical shank, 4 flutes, long * TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + + 1st choice , suitable THYRPCHOON SIDE MILLING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 L z EDP No. Stock 2 0/-0.020 6 8 60 4 MEXCL4020 h THYLPHOON 3 0/-0.020 6 15 60 4 MEXCL4030 h 4 0/-0.020 6 20 60 4 MEXCL4040 h 5 0/-0.020 6 25 70 4 MEXCL4050 h C-SD-TA 6 0/-0.020 6 25 70 4 MEXCL4060 h 8 0/-0.020 8 30 80 4 MEXCL4080 h 10 0/-0.020 10 35 90 4 MEXCL4100 h LFTA 12 0/-0.020 12 40 90 4 MEXCL4120 h 14 0/-0.020 16 50 110 4 MEXCL4140 h 16 0/-0.020 16 50 110 4 MEXCL4160 h SUTA 20 0/-0.020 20 50 110 4 MEXCL4200 h 25 0/-0.050 25 70 130 4 MEXCL4250 h HDSRSIL-LHSSS/CO 3 0/-0.025 6 25 100 4 MEXCL4030100 * h 4 0/-0.025 6 31 100 4 MEXCL4040100 * h G2 5 0/-0.025 6 31 100 4 MEXCL4050100 * h 6 0/-0.025 6 38 100 4 MEXCL4060100 * h 8 0/-0.030 8 41 100 4 MEXCL4080100 * h MDTA 10 0/-0.030 10 57 125 4 MEXCL4100125 * h 12 0/-0.030 12 75 150 4 MEXCL4120150 * h 14 0/-0.030 14 75 150 4 MEXCL4140150 * h HF VH/UP 16 0/-0.030 16 75 150 4 MEXCL4160150 * h 20 0/-0.030 20 75 150 4 MEXCL4200150 * h MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 539
