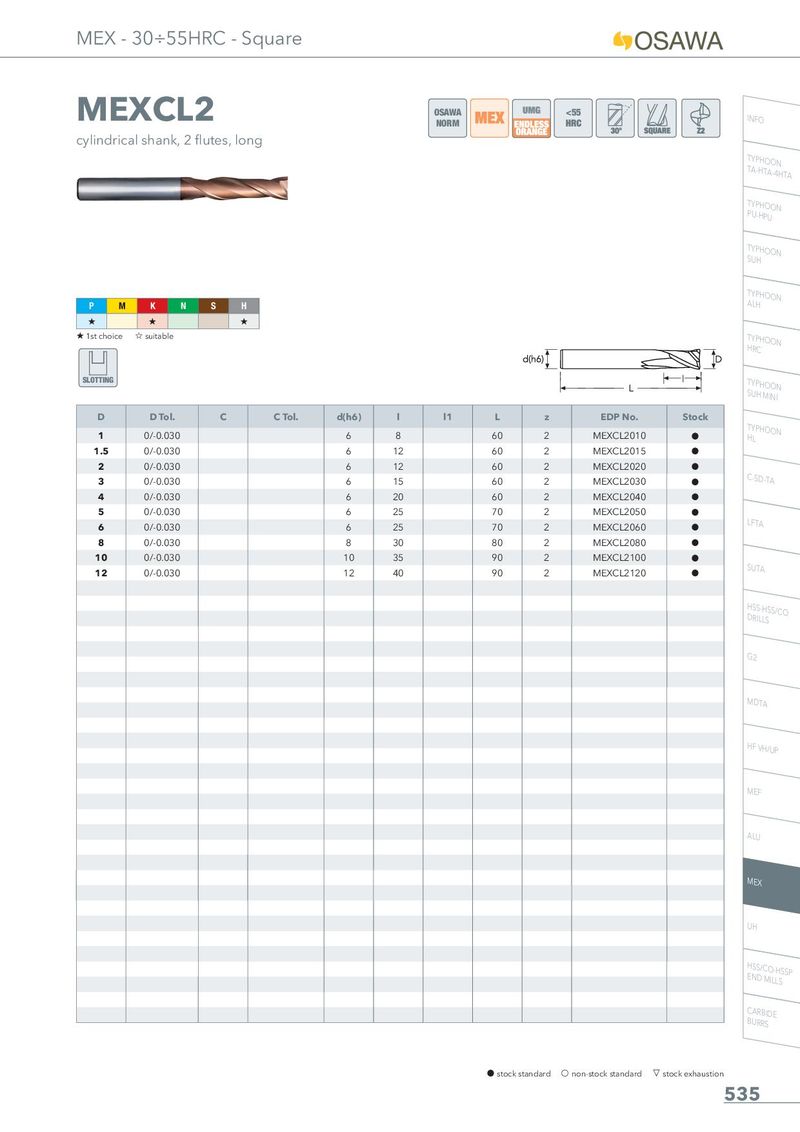

MEXCL2
cylindrical shank, 2 flutes, long
OSAWA <55 NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S H | ||||||||
| � | � | � | ||||||||
| �1st choice | �suitable | |||||||||
| SLOTTING | ||||||||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 1 | 0/-0.030 | 6 | 8 | 60 | 2 | MEXCL2010 | h | |||
| 1.5 | 0/-0.030 | 6 | 12 | 60 | 2 | MEXCL2015 | h | |||
| 2 | 0/-0.030 | 6 | 12 | 60 | 2 | MEXCL2020 | h | |||
| 3 | 0/-0.030 | 6 | 15 | 60 | 2 | MEXCL2030 | h | |||
| 4 | 0/-0.030 | 6 | 20 | 60 | 2 | MEXCL2040 | h | |||
| 5 | 0/-0.030 | 6 | 25 | 70 | 2 | MEXCL2050 | h | |||
| 6 | 0/-0.030 | 6 | 25 | 70 | 2 | MEXCL2060 | h | |||
| 8 | 0/-0.030 | 8 | 30 | 80 | 2 | MEXCL2080 | h | |||
| 10 | 0/-0.030 | 10 | 35 | 90 | 2 | MEXCL2100 | h | |||
| 12 | 0/-0.030 | 12 | 40 | 90 | 2 | MEXCL2120 | h |
