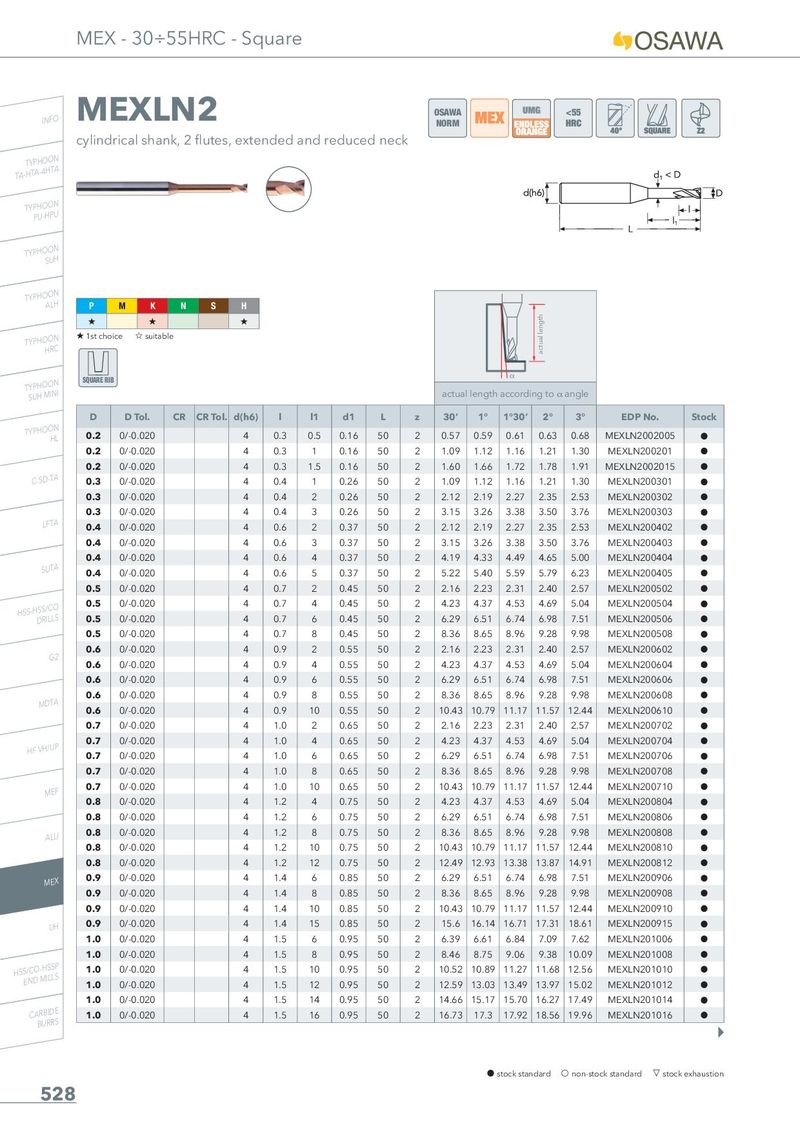

MEX - 30÷55HRC - Square INFO MEXLN2 OSAWA <55 NORM cylindrical shank, 2 flutes, extended and reduced neck TA-THYTPAH-4OHOTNA TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H + + + actual length TYPHOHORNC + 1st choice , suitable TSYUPHHOMOINNI SQUARE RIB α actual length according to _ angle D D Tol. CR CR Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock TYPHOOHNL 0.2 0/-0.020 4 0.3 0.5 0.16 50 2 0.57 0.59 0.61 0.63 0.68 MEXLN2002005 h 0.2 0/-0.020 4 0.3 1 0.16 50 2 1.09 1.12 1.16 1.21 1.30 MEXLN200201 h 0.2 0/-0.020 4 0.3 1.5 0.16 50 2 1.60 1.66 1.72 1.78 1.91 MEXLN2002015 h C-SD-TA 0.3 0/-0.020 4 0.4 1 0.26 50 2 1.09 1.12 1.16 1.21 1.30 MEXLN200301 h 0.3 0/-0.020 4 0.4 2 0.26 50 2 2.12 2.19 2.27 2.35 2.53 MEXLN200302 h 0.3 0/-0.020 4 0.4 3 0.26 50 2 3.15 3.26 3.38 3.50 3.76 MEXLN200303 h LFTA 0.4 0/-0.020 4 0.6 2 0.37 50 2 2.12 2.19 2.27 2.35 2.53 MEXLN200402 h 0.4 0/-0.020 4 0.6 3 0.37 50 2 3.15 3.26 3.38 3.50 3.76 MEXLN200403 h 0.4 0/-0.020 4 0.6 4 0.37 50 2 4.19 4.33 4.49 4.65 5.00 MEXLN200404 h SUTA 0.4 0/-0.020 4 0.6 5 0.37 50 2 5.22 5.40 5.59 5.79 6.23 MEXLN200405 h 0.5 0/-0.020 4 0.7 2 0.45 50 2 2.16 2.23 2.31 2.40 2.57 MEXLN200502 h HSS-HDSSR/ILCLOS 0.5 0/-0.020 4 0.7 4 0.45 50 2 4.23 4.37 4.53 4.69 5.04 MEXLN200504 h 0.5 0/-0.020 4 0.7 6 0.45 50 2 6.29 6.51 6.74 6.98 7.51 MEXLN200506 h 0.5 0/-0.020 4 0.7 8 0.45 50 2 8.36 8.65 8.96 9.28 9.98 MEXLN200508 h G2 0.6 0/-0.020 4 0.9 2 0.55 50 2 2.16 2.23 2.31 2.40 2.57 MEXLN200602 h 0.6 0/-0.020 4 0.9 4 0.55 50 2 4.23 4.37 4.53 4.69 5.04 MEXLN200604 h 0.6 0/-0.020 4 0.9 6 0.55 50 2 6.29 6.51 6.74 6.98 7.51 MEXLN200606 h MDTA 0.6 0/-0.020 4 0.9 8 0.55 50 2 8.36 8.65 8.96 9.28 9.98 MEXLN200608 h 0.6 0/-0.020 4 0.9 10 0.55 50 2 10.43 10.79 11.17 11.57 12.44 MEXLN200610 h 0.7 0/-0.020 4 1.0 2 0.65 50 2 2.16 2.23 2.31 2.40 2.57 MEXLN200702 h HF VH/UP 0.7 0/-0.020 4 1.0 4 0.65 50 2 4.23 4.37 4.53 4.69 5.04 MEXLN200704 h 0.7 0/-0.020 4 1.0 6 0.65 50 2 6.29 6.51 6.74 6.98 7.51 MEXLN200706 h 0.7 0/-0.020 4 1.0 8 0.65 50 2 8.36 8.65 8.96 9.28 9.98 MEXLN200708 h MEF 0.7 0/-0.020 4 1.0 10 0.65 50 2 10.43 10.79 11.17 11.57 12.44 MEXLN200710 h 0.8 0/-0.020 4 1.2 4 0.75 50 2 4.23 4.37 4.53 4.69 5.04 MEXLN200804 h 0.8 0/-0.020 4 1.2 6 0.75 50 2 6.29 6.51 6.74 6.98 7.51 MEXLN200806 h ALU 0.8 0/-0.020 4 1.2 8 0.75 50 2 8.36 8.65 8.96 9.28 9.98 MEXLN200808 h 0.8 0/-0.020 4 1.2 10 0.75 50 2 10.43 10.79 11.17 11.57 12.44 MEXLN200810 h 0.8 0/-0.020 4 1.2 12 0.75 50 2 12.49 12.93 13.38 13.87 14.91 MEXLN200812 h MEX 0.9 0/-0.020 4 1.4 6 0.85 50 2 6.29 6.51 6.74 6.98 7.51 MEXLN200906 h 0.9 0/-0.020 4 1.4 8 0.85 50 2 8.36 8.65 8.96 9.28 9.98 MEXLN200908 h 0.9 0/-0.020 4 1.4 10 0.85 50 2 10.43 10.79 11.17 11.57 12.44 MEXLN200910 h UH 0.9 0/-0.020 4 1.4 15 0.85 50 2 15.6 16.14 16.71 17.31 18.61 MEXLN200915 h 1.0 0/-0.020 4 1.5 6 0.95 50 2 6.39 6.61 6.84 7.09 7.62 MEXLN201006 h 1.0 0/-0.020 4 1.5 8 0.95 50 2 8.46 8.75 9.06 9.38 10.09 MEXLN201008 h HSSE/NCDO-MHISLSLPS 1.0 0/-0.020 4 1.5 10 0.95 50 2 10.52 10.89 11.27 11.68 12.56 MEXLN201010 h 1.0 0/-0.020 4 1.5 12 0.95 50 2 12.59 13.03 13.49 13.97 15.02 MEXLN201012 h 1.0 0/-0.020 4 1.5 14 0.95 50 2 14.66 15.17 15.70 16.27 17.49 MEXLN201014 h CARBIDE 1.0 0/-0.020 4 1.5 16 0.95 50 2 16.73 17.3 17.92 18.56 19.96 MEXLN201016 h BURRS h stock standard f non-stock standard m stock exhaustion 528
