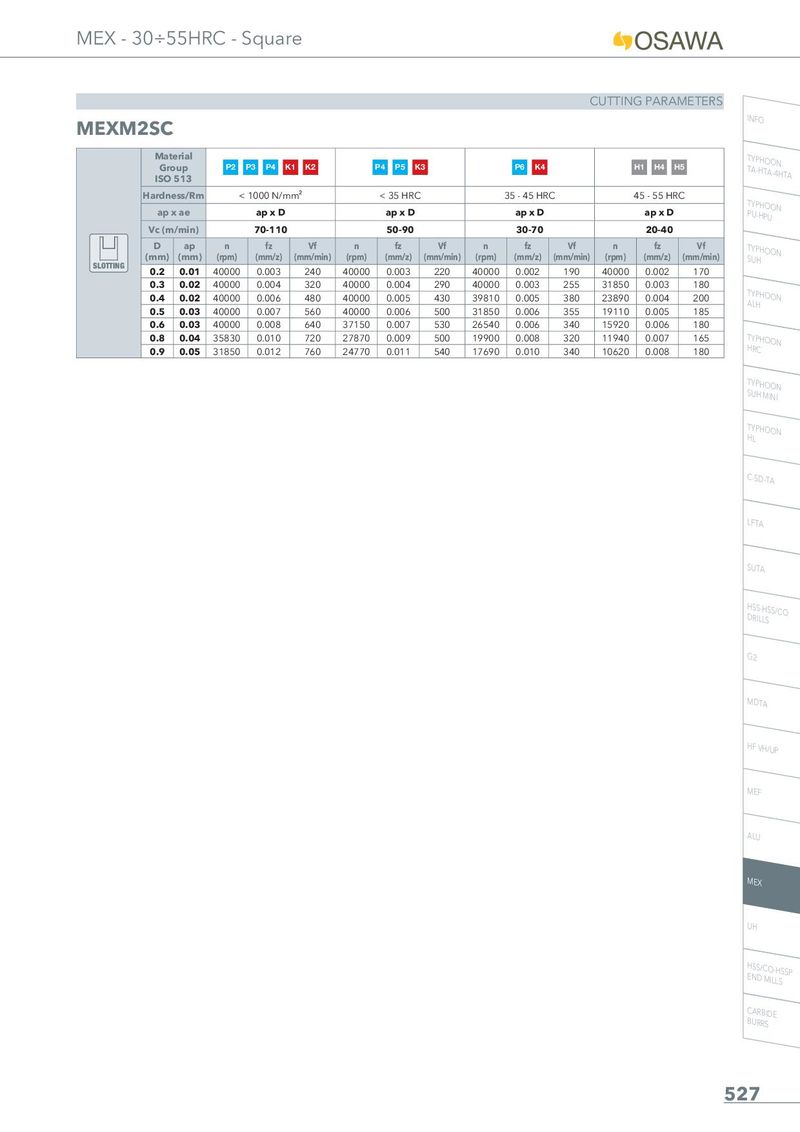

MEX - 30÷55HRC - Square CUTTING PARAMETERS MEXM2SC INFO Material TTYAP-HHTOAO-4NHTA Group P2 P3 P4 K1 K2 P4 P5 K3 P6 K4 H1 H4 H5 ISO 513 Hardness/Rm < 1000 N/mm² < 35 HRC 35 - 45 HRC 45 - 55 HRC TPYUP-HHPOUON ap x ae ap x D ap x D ap x D ap x D Vc (m/min) 70-110 50-90 30-70 20-40 D ap n fz Vf n fz Vf n fz Vf n fz Vf TSUYPHHOON (mm) (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) SLOTTING 0.2 0.01 40000 0.003 240 40000 0.003 220 40000 0.002 190 40000 0.002 170 0.3 0.02 40000 0.004 320 40000 0.004 290 40000 0.003 255 31850 0.003 180 TAYLPHHOON 0.4 0.02 40000 0.006 480 40000 0.005 430 39810 0.005 380 23890 0.004 200 0.5 0.03 40000 0.007 560 40000 0.006 500 31850 0.006 355 19110 0.005 185 0.6 0.03 40000 0.008 640 37150 0.007 530 26540 0.006 340 15920 0.006 180 0.8 0.04 35830 0.010 720 27870 0.009 500 19900 0.008 320 11940 0.007 165 THYRPCHOON 0.9 0.05 31850 0.012 760 24770 0.011 540 17690 0.010 340 10620 0.008 180 TSUYPHHMOIONIN THYLPHOON C-SD-TA LFTA SUTA HDSRSIL-LHSSS/CO G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE 527
