TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH

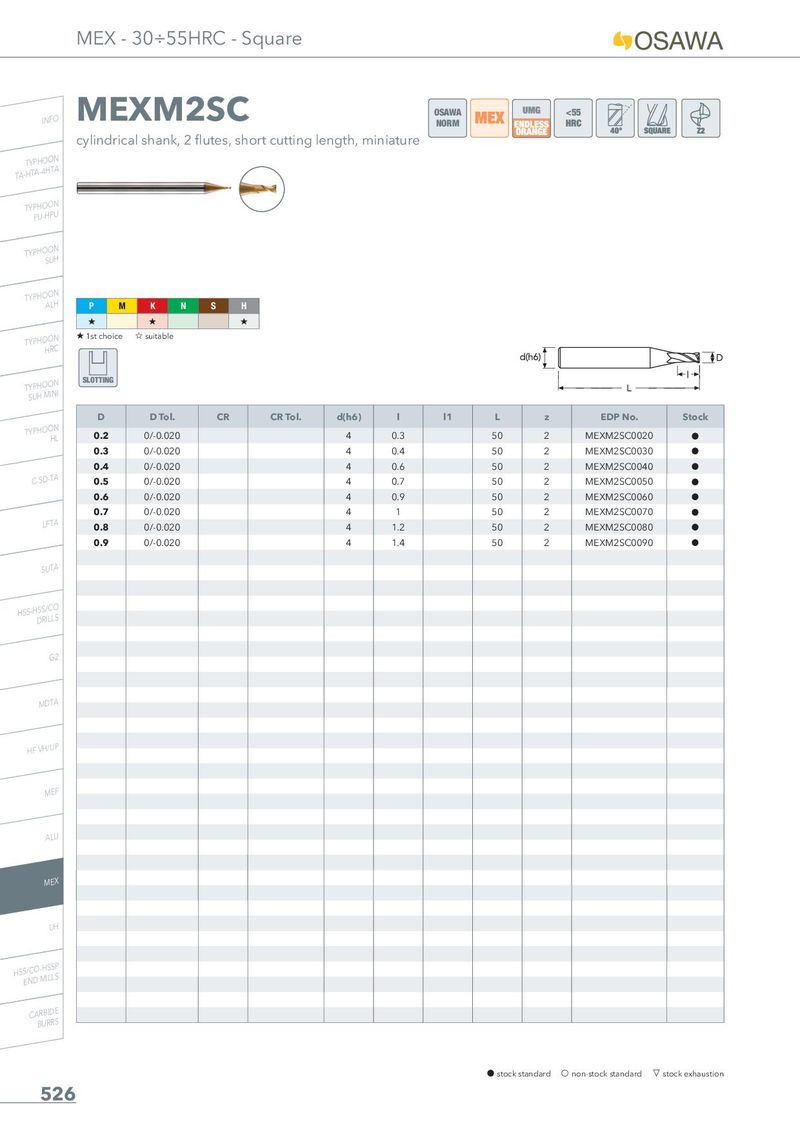

MEXM2SC
OSAWA <55 NORM
cylindrical shank, 2 flutes, short cutting length, miniature
| P M | K N | S H | ||||||||
| � | � | � | ||||||||
| �1st choice | �suitable | |||||||||
| SLOTTING | ||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 0.2 | 0/-0.020 | 4 | 0.3 | 50 | 2 | MEXM2SC0020 | h | |||
| 0.3 | 0/-0.020 | 4 | 0.4 | 50 | 2 | MEXM2SC0030 | h | |||
| 0.4 | 0/-0.020 | 4 | 0.6 | 50 | 2 | MEXM2SC0040 | h | |||
| 0.5 | 0/-0.020 | 4 | 0.7 | 50 | 2 | MEXM2SC0050 | h | |||
| 0.6 | 0/-0.020 | 4 | 0.9 | 50 | 2 | MEXM2SC0060 | h | |||
| 0.7 | 0/-0.020 | 4 | 1 | 50 | 2 | MEXM2SC0070 | h | |||
| 0.8 | 0/-0.020 | 4 | 1.2 | 50 | 2 | MEXM2SC0080 | h | |||
| 0.9 | 0/-0.020 | 4 | 1.4 | 50 | 2 | MEXM2SC0090 | h |
