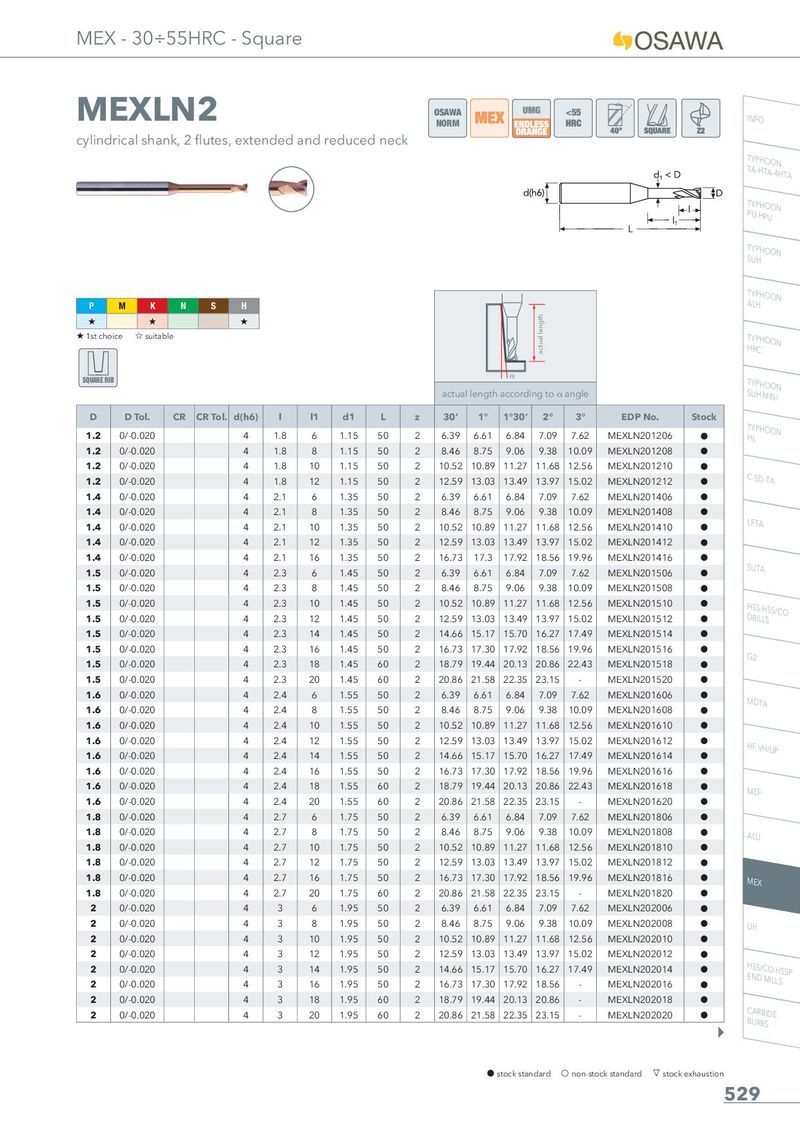

Общий каталог Osawa 2018 - страница 531

Общий каталог Osawa 2021

Общий каталог Osawa 2021

MEXLN2

cylindrical shank, 2 flutes, extended and reduced neck

OSAWA <55 NORM

INFO

TYPHOON TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON

P � �1st cho	M K � ice�suitab	N le	S H �									actual length
SQUARE RI	B								actual	length	α accordi	ng to�	angle
D	D Tol.	CR	CR Tol. d(h6)	l	l1	d1	L	z	30’	1°	1°30’	2°	3°	EDP No.	Stock
1.2	0/-0.020		4	1.8	6	1.15	50	2	6.39	6.61	6.84	7.09	7.62	MEXLN201206	h
1.2	0/-0.020		4	1.8	8	1.15	50	2	8.46	8.75	9.06	9.38	10.09	MEXLN201208	h
1.2	0/-0.020		4	1.8	10	1.15	50	2	10.52	10.89	11.27	11.68	12.56	MEXLN201210	h
1.2	0/-0.020		4	1.8	12	1.15	50	2	12.59	13.03	13.49	13.97	15.02	MEXLN201212	h
1.4	0/-0.020		4	2.1	6	1.35	50	2	6.39	6.61	6.84	7.09	7.62	MEXLN201406	h
1.4	0/-0.020		4	2.1	8	1.35	50	2	8.46	8.75	9.06	9.38	10.09	MEXLN201408	h
1.4	0/-0.020		4	2.1	10	1.35	50	2	10.52	10.89	11.27	11.68	12.56	MEXLN201410	h
1.4	0/-0.020		4	2.1	12	1.35	50	2	12.59	13.03	13.49	13.97	15.02	MEXLN201412	h
1.4	0/-0.020		4	2.1	16	1.35	50	2	16.73	17.3	17.92	18.56	19.96	MEXLN201416	h
1.5	0/-0.020		4	2.3	6	1.45	50	2	6.39	6.61	6.84	7.09	7.62	MEXLN201506	h
1.5	0/-0.020		4	2.3	8	1.45	50	2	8.46	8.75	9.06	9.38	10.09	MEXLN201508	h
1.5	0/-0.020		4	2.3	10	1.45	50	2	10.52	10.89	11.27	11.68	12.56	MEXLN201510	h
1.5	0/-0.020		4	2.3	12	1.45	50	2	12.59	13.03	13.49	13.97	15.02	MEXLN201512	h
1.5	0/-0.020		4	2.3	14	1.45	50	2	14.66	15.17	15.70	16.27	17.49	MEXLN201514	h
1.5	0/-0.020		4	2.3	16	1.45	50	2	16.73	17.30	17.92	18.56	19.96	MEXLN201516	h
1.5	0/-0.020		4	2.3	18	1.45	60	2	18.79	19.44	20.13	20.86	22.43	MEXLN201518	h
1.5	0/-0.020		4	2.3	20	1.45	60	2	20.86	21.58	22.35	23.15	-	MEXLN201520	h
1.6	0/-0.020		4	2.4	6	1.55	50	2	6.39	6.61	6.84	7.09	7.62	MEXLN201606	h
1.6	0/-0.020		4	2.4	8	1.55	50	2	8.46	8.75	9.06	9.38	10.09	MEXLN201608	h
1.6	0/-0.020		4	2.4	10	1.55	50	2	10.52	10.89	11.27	11.68	12.56	MEXLN201610	h
1.6	0/-0.020		4	2.4	12	1.55	50	2	12.59	13.03	13.49	13.97	15.02	MEXLN201612	h
1.6	0/-0.020		4	2.4	14	1.55	50	2	14.66	15.17	15.70	16.27	17.49	MEXLN201614	h
1.6	0/-0.020		4	2.4	16	1.55	50	2	16.73	17.30	17.92	18.56	19.96	MEXLN201616	h
1.6	0/-0.020		4	2.4	18	1.55	60	2	18.79	19.44	20.13	20.86	22.43	MEXLN201618	h
1.6	0/-0.020		4	2.4	20	1.55	60	2	20.86	21.58	22.35	23.15	-	MEXLN201620	h
1.8	0/-0.020		4	2.7	6	1.75	50	2	6.39	6.61	6.84	7.09	7.62	MEXLN201806	h
1.8	0/-0.020		4	2.7	8	1.75	50	2	8.46	8.75	9.06	9.38	10.09	MEXLN201808	h
1.8	0/-0.020		4	2.7	10	1.75	50	2	10.52	10.89	11.27	11.68	12.56	MEXLN201810	h
1.8	0/-0.020		4	2.7	12	1.75	50	2	12.59	13.03	13.49	13.97	15.02	MEXLN201812	h
1.8	0/-0.020		4	2.7	16	1.75	50	2	16.73	17.30	17.92	18.56	19.96	MEXLN201816	h
1.8	0/-0.020		4	2.7	20	1.75	60	2	20.86	21.58	22.35	23.15	-	MEXLN201820	h
2	0/-0.020		4	3	6	1.95	50	2	6.39	6.61	6.84	7.09	7.62	MEXLN202006	h
2	0/-0.020		4	3	8	1.95	50	2	8.46	8.75	9.06	9.38	10.09	MEXLN202008	h
2	0/-0.020		4	3	10	1.95	50	2	10.52	10.89	11.27	11.68	12.56	MEXLN202010	h
2	0/-0.020		4	3	12	1.95	50	2	12.59	13.03	13.49	13.97	15.02	MEXLN202012	h
2	0/-0.020		4	3	14	1.95	50	2	14.66	15.17	15.70	16.27	17.49	MEXLN202014	h
2	0/-0.020		4	3	16	1.95	50	2	16.73	17.30	17.92	18.56	-	MEXLN202016	h
2	0/-0.020		4	3	18	1.95	60	2	18.79	19.44	20.13	20.86	-	MEXLN202018	h
2	0/-0.020		4	3	20	1.95	60	2	20.86	21.58	22.35	23.15	-	MEXLN202020	h
