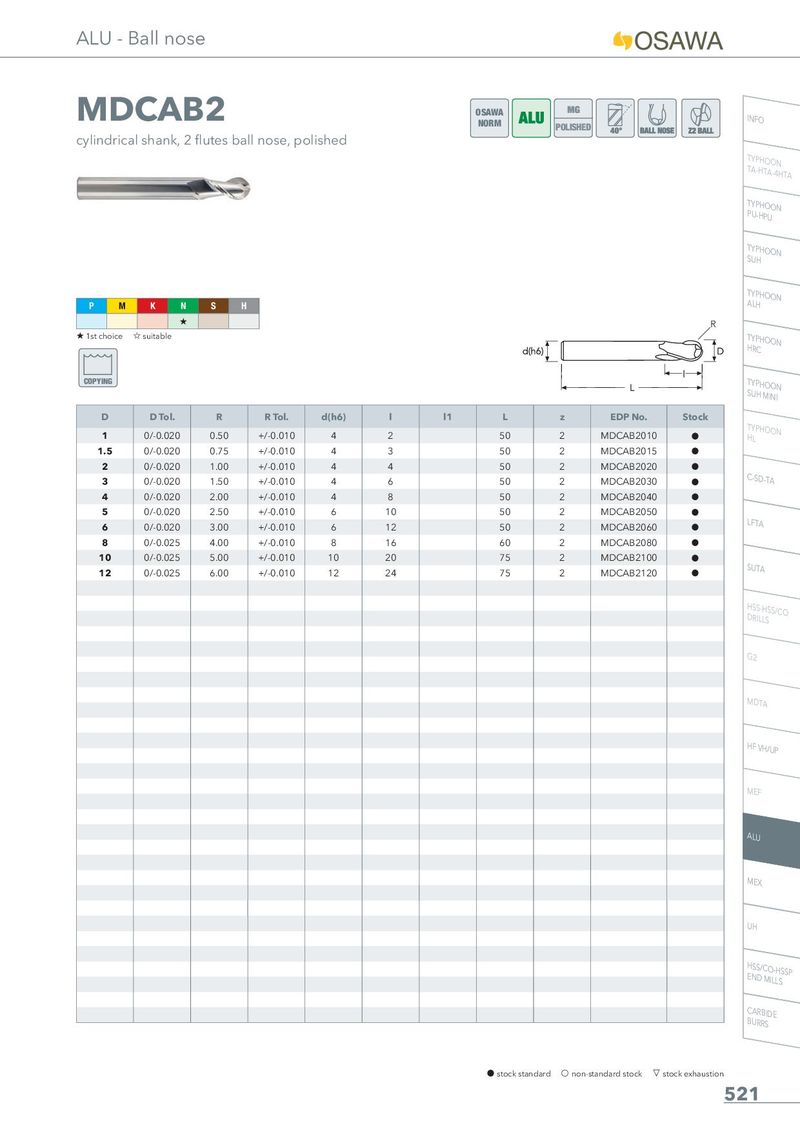

ALU - Ball nose
MDCAB2
cylindrical shank, 2 flutes ball nose, polished
OSAWA NORM
POLISHED
INFOINFO
TYPHOONTYPHOON TA-HTA-4HTATA-HTA-4HTA
TYPHOON TYPHOON PU-HPUPU-HPU
TYPHOON TYPHOON SUHSUH
TYPHOON TYPHOON
| P M | K N | S H | ||||||||
| �1st choice COPYING | � �suitable | |||||||||
| D | D Tol. | R | R Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 1 | 0/-0.020 | 0.50 | +/-0.010 | 4 | 2 | 50 | 2 | MDCAB2010 | h | |
| 1.5 | 0/-0.020 | 0.75 | +/-0.010 | 4 | 3 | 50 | 2 | MDCAB2015 | h | |
| 2 | 0/-0.020 | 1.00 | +/-0.010 | 4 | 4 | 50 | 2 | MDCAB2020 | h | |
| 3 | 0/-0.020 | 1.50 | +/-0.010 | 4 | 6 | 50 | 2 | MDCAB2030 | h | |
| 4 | 0/-0.020 | 2.00 | +/-0.010 | 4 | 8 | 50 | 2 | MDCAB2040 | h | |
| 5 | 0/-0.020 | 2.50 | +/-0.010 | 6 | 10 | 50 | 2 | MDCAB2050 | h | |
| 6 | 0/-0.020 | 3.00 | +/-0.010 | 6 | 12 | 50 | 2 | MDCAB2060 | h | |
| 8 | 0/-0.025 | 4.00 | +/-0.010 | 8 | 16 | 60 | 2 | MDCAB2080 | h | |
| 10 | 0/-0.025 | 5.00 | +/-0.010 | 10 | 20 | 75 | 2 | MDCAB2100 | h | |
| 12 | 0/-0.025 | 6.00 | +/-0.010 | 12 | 24 | 75 | 2 | MDCAB2120 | h |
