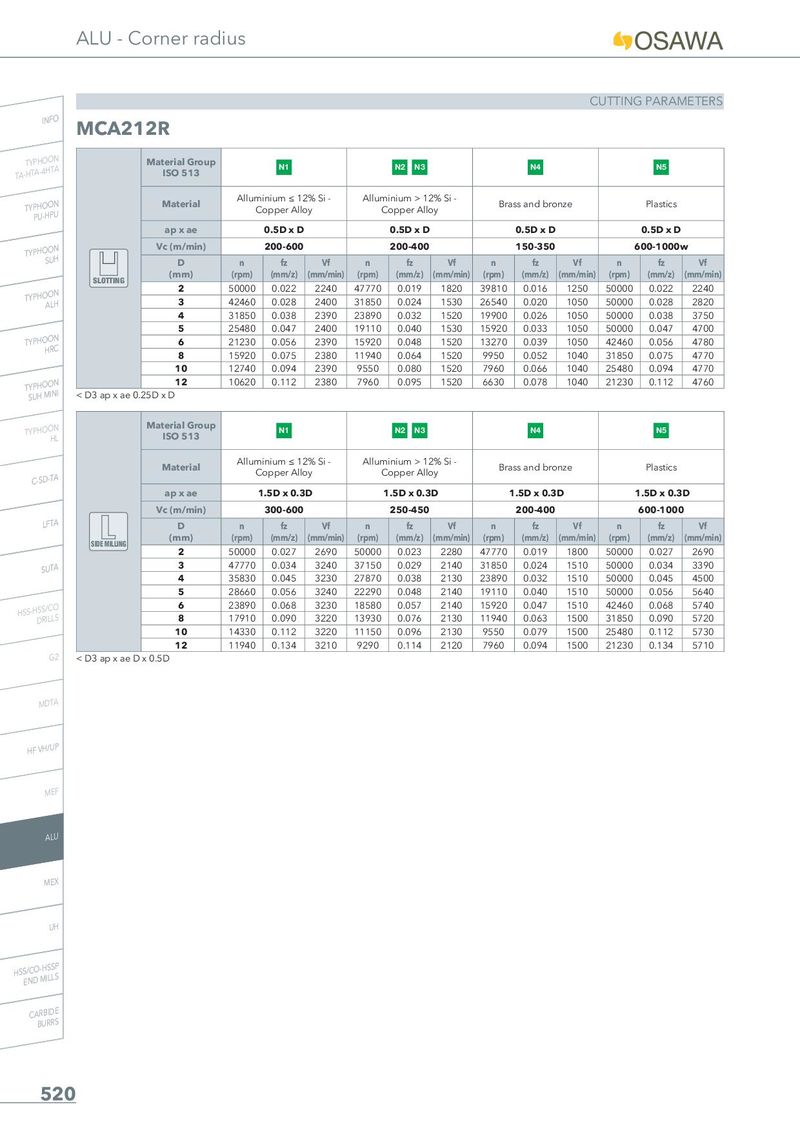

ALU - Corner radius CUTTING PARAMETERS INFO MCA212R TA-THYTPAH-4OHOTNA Material Group N1 N2 N3 N4 N5 ISO 513 TYPPHUO-HOPNU Material Alluminium ≤ 12% Si - Alluminium > 12% Si - Brass and bronze Plastics Copper Alloy Copper Alloy ap x ae 0.5D x D 0.5D x D 0.5D x D 0.5D x D TYPHOSOUNH Vc (m/min) 200-600 200-400 150-350 600-1000w D n fz Vf n fz Vf n fz Vf n fz Vf SLOTTING (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) TYPHOAOLNH 2 50000 0.022 2240 47770 0.019 1820 39810 0.016 1250 50000 0.022 2240 3 42460 0.028 2400 31850 0.024 1530 26540 0.020 1050 50000 0.028 2820 4 31850 0.038 2390 23890 0.032 1520 19900 0.026 1050 50000 0.038 3750 5 25480 0.047 2400 19110 0.040 1530 15920 0.033 1050 50000 0.047 4700 TYPHOHORNC 6 21230 0.056 2390 15920 0.048 1520 13270 0.039 1050 42460 0.056 4780 8 15920 0.075 2380 11940 0.064 1520 9950 0.052 1040 31850 0.075 4770 10 12740 0.094 2390 9550 0.080 1520 7960 0.066 1040 25480 0.094 4770 TSYUPHHOMOINNI 12 10620 0.112 2380 7960 0.095 1520 6630 0.078 1040 21230 0.112 4760 < D3 ap x ae 0.25D x D TYPHOOHNL Material Group N1 N2 N3 N4 N5 ISO 513 Material Alluminium ≤ 12% Si - Alluminium > 12% Si - Brass and bronze Plastics C-SD-TA Copper Alloy Copper Alloy ap x ae 1.5D x 0.3D 1.5D x 0.3D 1.5D x 0.3D 1.5D x 0.3D Vc (m/min) 300-600 250-450 200-400 600-1000 LFTA D n fz Vf n fz Vf n fz Vf n fz Vf SIDE MILLING (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 2 50000 0.027 2690 50000 0.023 2280 47770 0.019 1800 50000 0.027 2690 SUTA 3 47770 0.034 3240 37150 0.029 2140 31850 0.024 1510 50000 0.034 3390 4 35830 0.045 3230 27870 0.038 2130 23890 0.032 1510 50000 0.045 4500 5 28660 0.056 3240 22290 0.048 2140 19110 0.040 1510 50000 0.056 5640 HSS-HDSSR/ILCLOS 6 23890 0.068 3230 18580 0.057 2140 15920 0.047 1510 42460 0.068 5740 8 17910 0.090 3220 13930 0.076 2130 11940 0.063 1500 31850 0.090 5720 10 14330 0.112 3220 11150 0.096 2130 9550 0.079 1500 25480 0.112 5730 12 11940 0.134 3210 9290 0.114 2120 7960 0.094 1500 21230 0.134 5710 G2 < D3 ap x ae D x 0.5D MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS 520
