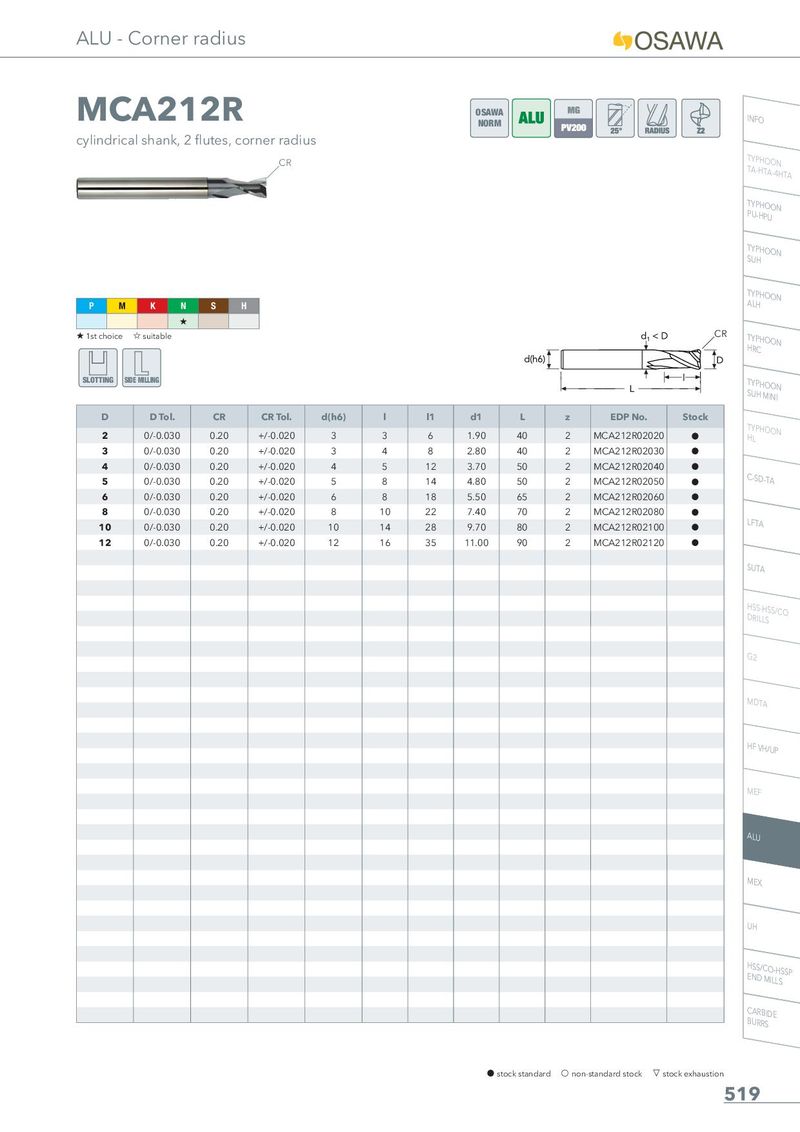

ALU - Corner radius
MCA212R
cylindrical shank, 2 flutes, corner radius
CR
OSAWA NORM
INFOINFO
TYPHOONTYPHOON TA-HTA-4HTATA-HTA-4HTA
TYPHOON TYPHOON PU-HPUPU-HPU
TYPHOON TYPHOON SUHSUH
TYPHOON TYPHOON
| P M | K N | S | H | |||||||||
| �1st choice | � �suitable | CR | ||||||||||
| SLOTTING | SIDE MILLING | |||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock | |
| 2 | 0/-0.030 | 0.20 | +/-0.020 | 3 | 3 | 6 | 1.90 | 40 | 2 | MCA212R02020 | h | |
| 3 | 0/-0.030 | 0.20 | +/-0.020 | 3 | 4 | 8 | 2.80 | 40 | 2 | MCA212R02030 | h | |
| 4 | 0/-0.030 | 0.20 | +/-0.020 | 4 | 5 | 12 | 3.70 | 50 | 2 | MCA212R02040 | h | |
| 5 | 0/-0.030 | 0.20 | +/-0.020 | 5 | 8 | 14 | 4.80 | 50 | 2 | MCA212R02050 | h | |
| 6 | 0/-0.030 | 0.20 | +/-0.020 | 6 | 8 | 18 | 5.50 | 65 | 2 | MCA212R02060 | h | |
| 8 | 0/-0.030 | 0.20 | +/-0.020 | 8 | 10 | 22 | 7.40 | 70 | 2 | MCA212R02080 | h | |
| 10 | 0/-0.030 | 0.20 | +/-0.020 | 10 | 14 | 28 | 9.70 | 80 | 2 | MCA212R02100 | h | |
| 12 | 0/-0.030 | 0.20 | +/-0.020 | 12 | 16 | 35 | 11.00 | 90 | 2 | MCA212R02120 | h |
