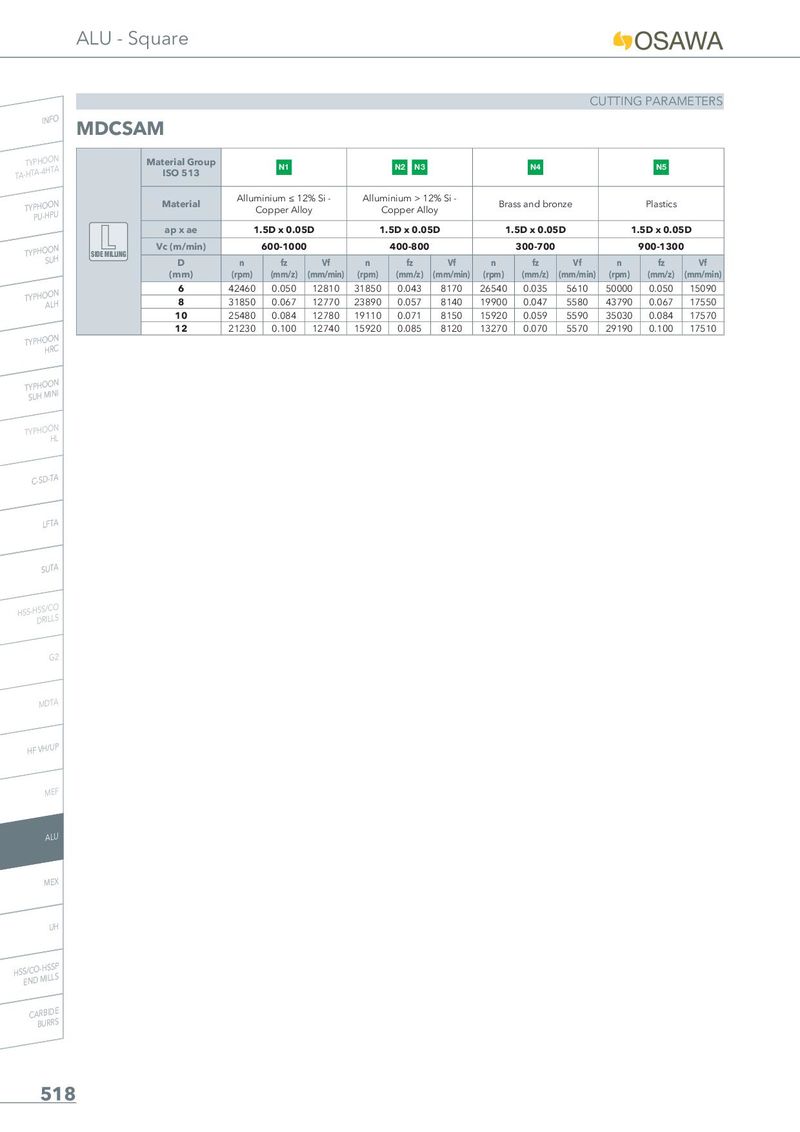

CUTTING PARAMETERS

INFOINFO MDCSAM

	Material Group ISO 513		N1			N2 N3			N4			N5
	Material	Allum C	inium ≤ 12 opper Allo	% Si - y	Allum C	inium > 12 opper Allo	% Si - y	Bra	ss and bro	nze		Plastics
	ap x ae	1.	5D x 0.05	D	1.	5D x 0.05	D	1.	5D x 0.05	D	1.	5D x 0.05	D
SIDE MILLING	Vc (m/min)		600-1000			400-800			300-700			900-1300
	D	n	fz	Vf	n	fz	Vf	n	fz	Vf	n	fz	Vf
	(mm)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)
	6	42460	0.050	12810	31850	0.043	8170	26540	0.035	5610	50000	0.050	15090
	8	31850	0.067	12770	23890	0.057	8140	19900	0.047	5580	43790	0.067	17550
	10	25480	0.084	12780	19110	0.071	8150	15920	0.059	5590	35030	0.084	17570
	12	21230	0.100	12740	15920	0.085	8120	13270	0.070	5570	29190	0.100	17510
