Общий каталог Osawa 2018 - страница 519
Навигация
Общий каталог Osawa 2021

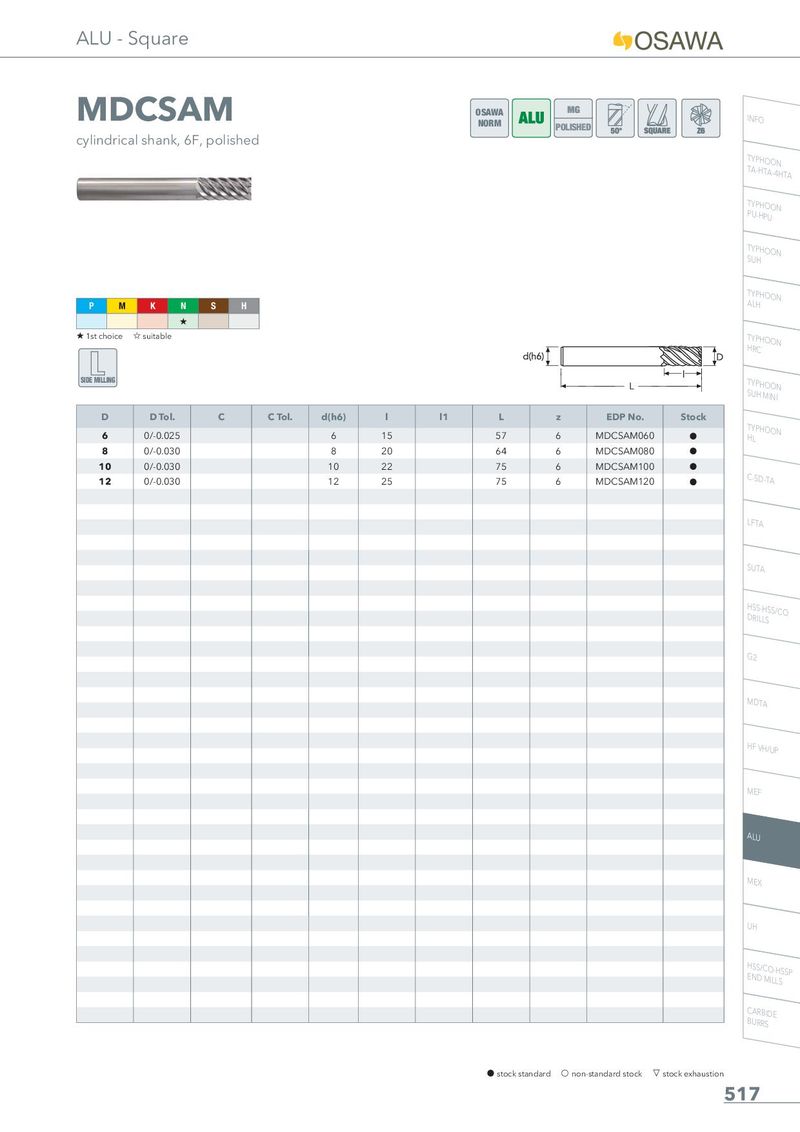

MDCSAM
cylindrical shank, 6F, polished
OSAWA NORM
POLISHED
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S H | ||||||||
| � | ||||||||||
| �1st choice | �suitable | |||||||||
| SIDE MILLING | ||||||||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 6 | 0/-0.025 | 6 | 15 | 57 | 6 | MDCSAM060 | h | |||
| 8 | 0/-0.030 | 8 | 20 | 64 | 6 | MDCSAM080 | h | |||
| 10 | 0/-0.030 | 10 | 22 | 75 | 6 | MDCSAM100 | h | |||
| 12 | 0/-0.030 | 12 | 25 | 75 | 6 | MDCSAM120 | h |
HRC
SUH MINI
TYPHOON
C-SD-TA
LFTA
SUTA
HSS-HSS/CO DRILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE BURRS
