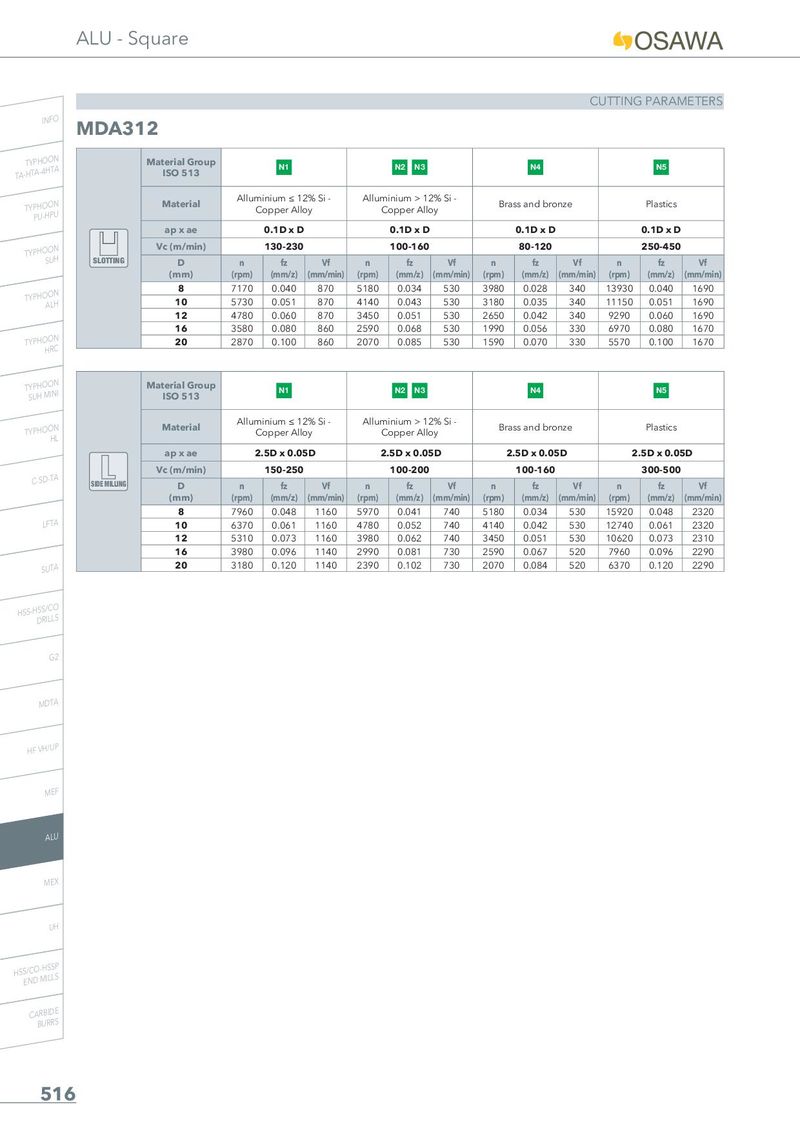

ALU - Square CUTTING PARAMETERS INFO MDA312 TA-THYTPAH-4OHOTNA Material Group N1 N2 N3 N4 N5 ISO 513 TYPPHUO-HOPNU Material Alluminium ≤ 12% Si - Alluminium > 12% Si - Brass and bronze Plastics Copper Alloy Copper Alloy ap x ae 0.1D x D 0.1D x D 0.1D x D 0.1D x D TYPHOSOUNH Vc (m/min) 130-230 100-160 80-120 250-450 SLOTTING D n fz Vf n fz Vf n fz Vf n fz Vf (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) TYPHOAOLNH 8 7170 0.040 870 5180 0.034 530 3980 0.028 340 13930 0.040 1690 10 5730 0.051 870 4140 0.043 530 3180 0.035 340 11150 0.051 1690 12 4780 0.060 870 3450 0.051 530 2650 0.042 340 9290 0.060 1690 16 3580 0.080 860 2590 0.068 530 1990 0.056 330 6970 0.080 1670 TYPHOHORNC 20 2870 0.100 860 2070 0.085 530 1590 0.070 330 5570 0.100 1670 TSYUPHHOMOINNI Material Group N1 N2 N3 N4 N5 ISO 513 TYPHOOHNL Material Alluminium ≤ 12% Si - Alluminium > 12% Si - Brass and bronze Plastics Copper Alloy Copper Alloy ap x ae 2.5D x 0.05D 2.5D x 0.05D 2.5D x 0.05D 2.5D x 0.05D C-SD-TA Vc (m/min) 150-250 100-200 100-160 300-500 SIDE MILLING D n fz Vf n fz Vf n fz Vf n fz Vf (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 8 7960 0.048 1160 5970 0.041 740 5180 0.034 530 15920 0.048 2320 LFTA 10 6370 0.061 1160 4780 0.052 740 4140 0.042 530 12740 0.061 2320 12 5310 0.073 1160 3980 0.062 740 3450 0.051 530 10620 0.073 2310 16 3980 0.096 1140 2990 0.081 730 2590 0.067 520 7960 0.096 2290 SUTA 20 3180 0.120 1140 2390 0.102 730 2070 0.084 520 6370 0.120 2290 HSS-HDSSR/ILCLOS G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS 516
