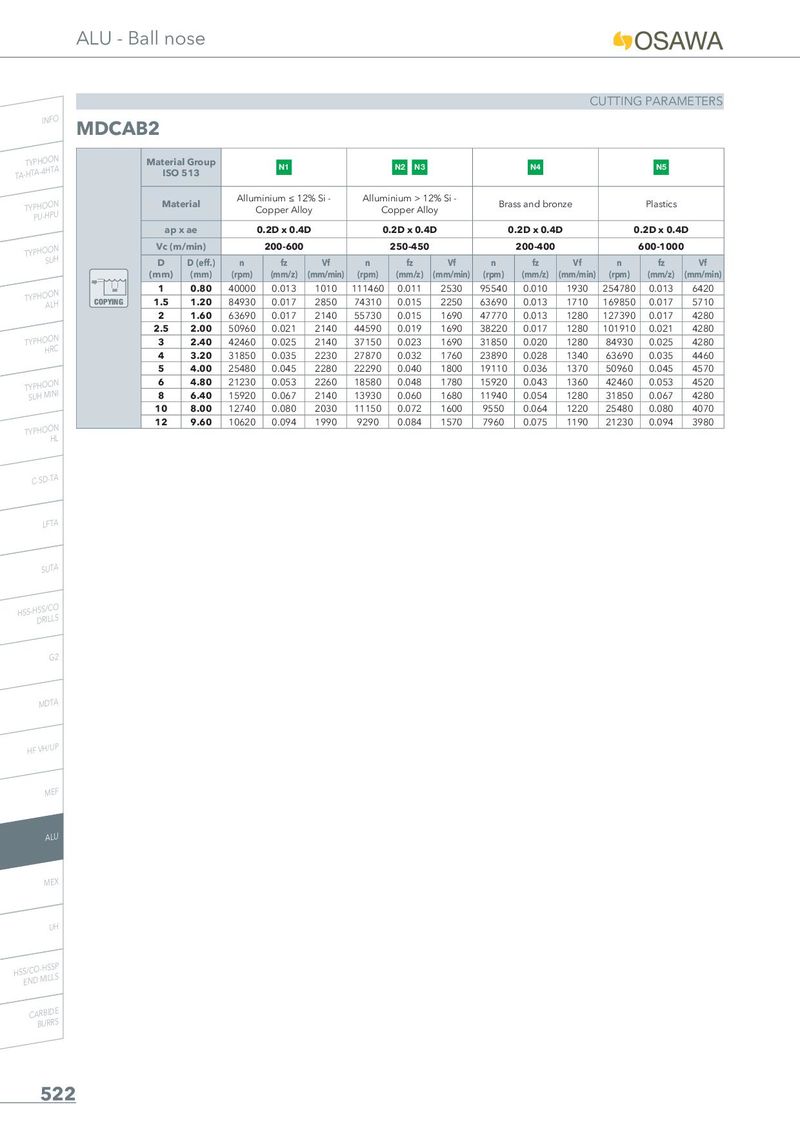

ALU - Ball nose

CUTTING PARAMETERS

INFO MDCAB2

	Materia ISO	l Group 513		N1			N2 N3			N4			N5
	Mat	erial	Allumi C	nium ≤ 12 opper Allo	% Si - y	Allum C	inium > 1 opper Allo	2% Si - y	Bra	ss and bro	nze		Plastics
	ap	x ae	0.	2D x 0.4	D	0	.2D x 0.4	D	0	.2D x 0.4	D	0	.2D x 0.4	D
	Vc (m	/min)		200-600			250-450			200-400			600-1000
	D	D (eff.)	n	fz	Vf	n	fz	Vf	n	fz	Vf	n	fz	Vf
	(mm)	(mm)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)
ae ap	1	0.80	40000	0.013	1010	111460	0.011	2530	95540	0.010	1930	254780	0.013	6420
COPYING	1.5	1.20	84930	0.017	2850	74310	0.015	2250	63690	0.013	1710	169850	0.017	5710
	2	1.60	63690	0.017	2140	55730	0.015	1690	47770	0.013	1280	127390	0.017	4280
	2.5	2.00	50960	0.021	2140	44590	0.019	1690	38220	0.017	1280	101910	0.021	4280
	3	2.40	42460	0.025	2140	37150	0.023	1690	31850	0.020	1280	84930	0.025	4280
	4	3.20	31850	0.035	2230	27870	0.032	1760	23890	0.028	1340	63690	0.035	4460
	5	4.00	25480	0.045	2280	22290	0.040	1800	19110	0.036	1370	50960	0.045	4570
	6	4.80	21230	0.053	2260	18580	0.048	1780	15920	0.043	1360	42460	0.053	4520
	8	6.40	15920	0.067	2140	13930	0.060	1680	11940	0.054	1280	31850	0.067	4280
	10	8.00	12740	0.080	2030	11150	0.072	1600	9550	0.064	1220	25480	0.080	4070
	12	9.60	10620	0.094	1990	9290	0.084	1570	7960	0.075	1190	21230	0.094	3980
