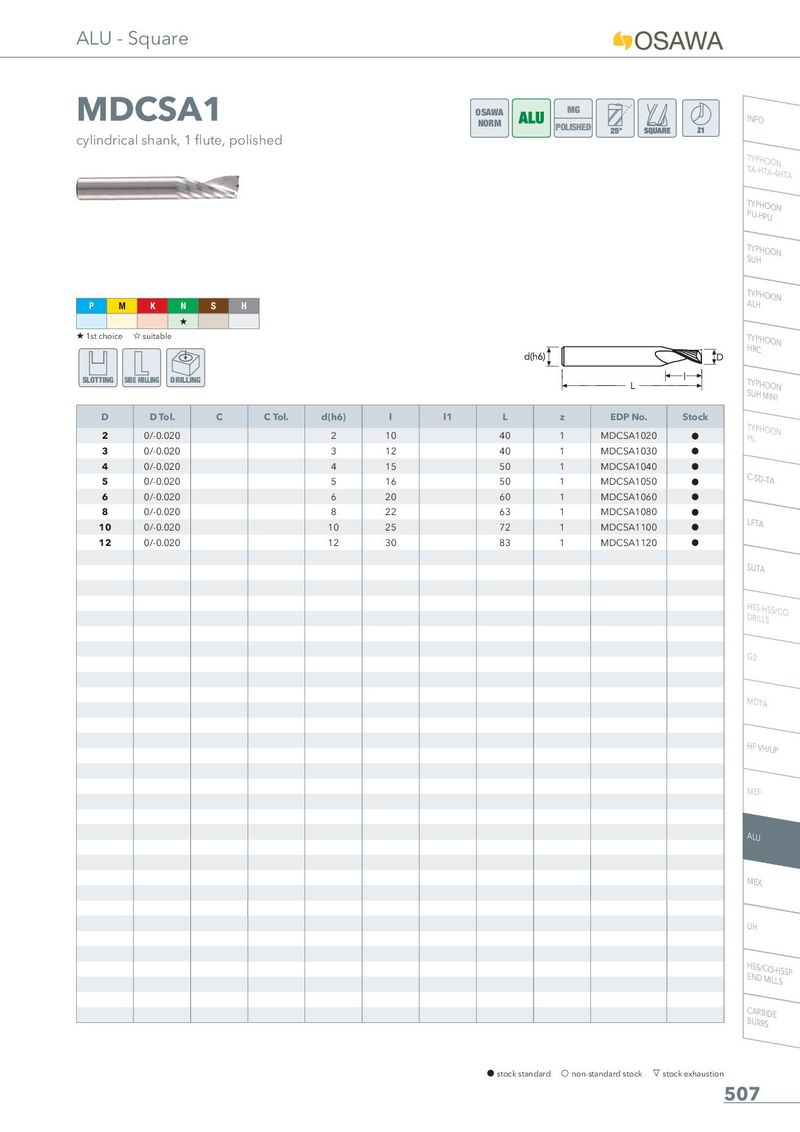

MDCSA1
cylindrical shank, 1 flute, polished
OSAWA NORM
POLISHED
INFOINFO
TYPHOONTYPHOON TA-HTA-4HTATA-HTA-4HTA
TYPHOON TYPHOON PU-HPUPU-HPU
TYPHOON TYPHOON SUHSUH
TYPHOON TYPHOON
| P M | K N | S | H | |||||||
| �1st choice | � �suitable | |||||||||
| SLOTTING S | IDE MILLING DRILLING | |||||||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 2 | 0/-0.020 | 2 | 10 | 40 | 1 | MDCSA1020 | h | |||
| 3 | 0/-0.020 | 3 | 12 | 40 | 1 | MDCSA1030 | h | |||
| 4 | 0/-0.020 | 4 | 15 | 50 | 1 | MDCSA1040 | h | |||
| 5 | 0/-0.020 | 5 | 16 | 50 | 1 | MDCSA1050 | h | |||
| 6 | 0/-0.020 | 6 | 20 | 60 | 1 | MDCSA1060 | h | |||
| 8 | 0/-0.020 | 8 | 22 | 63 | 1 | MDCSA1080 | h | |||
| 10 | 0/-0.020 | 10 | 25 | 72 | 1 | MDCSA1100 | h | |||
| 12 | 0/-0.020 | 12 | 30 | 83 | 1 | MDCSA1120 | h |
