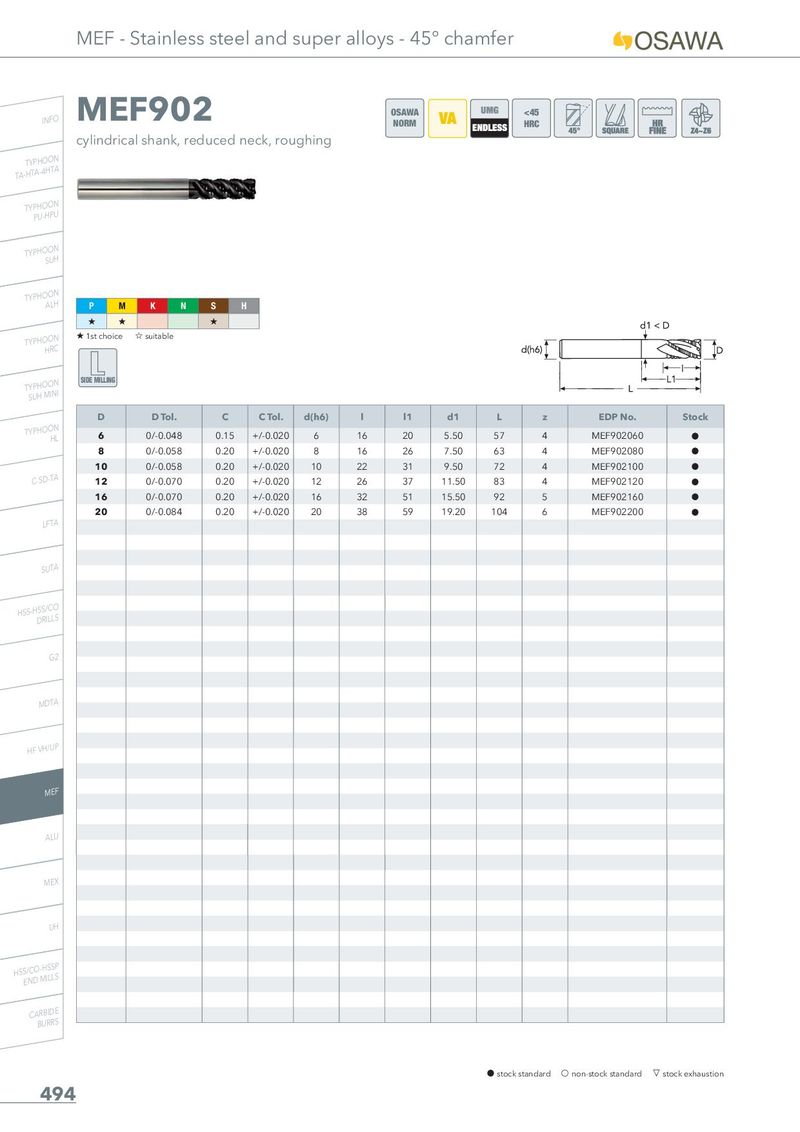

MEF902
OSAWA <45 NORM HRC
cylindrical shank, reduced neck, roughing
| P M | K N | S H | |||||||||
| � � | � | ||||||||||
| �1st choice SIDE MILLING | �suitable | ||||||||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock |
| 6 | 0/-0.048 | 0.15 | +/-0.020 | 6 | 16 | 20 | 5.50 | 57 | 4 | MEF902060 | h |
| 8 | 0/-0.058 | 0.20 | +/-0.020 | 8 | 16 | 26 | 7.50 | 63 | 4 | MEF902080 | h |
| 10 | 0/-0.058 | 0.20 | +/-0.020 | 10 | 22 | 31 | 9.50 | 72 | 4 | MEF902100 | h |
| 12 | 0/-0.070 | 0.20 | +/-0.020 | 12 | 26 | 37 | 11.50 | 83 | 4 | MEF902120 | h |
| 16 | 0/-0.070 | 0.20 | +/-0.020 | 16 | 32 | 51 | 15.50 | 92 | 5 | MEF902160 | h |
| 20 | 0/-0.084 | 0.20 | +/-0.020 | 20 | 38 | 59 | 19.20 | 104 | 6 | MEF902200 | h |
