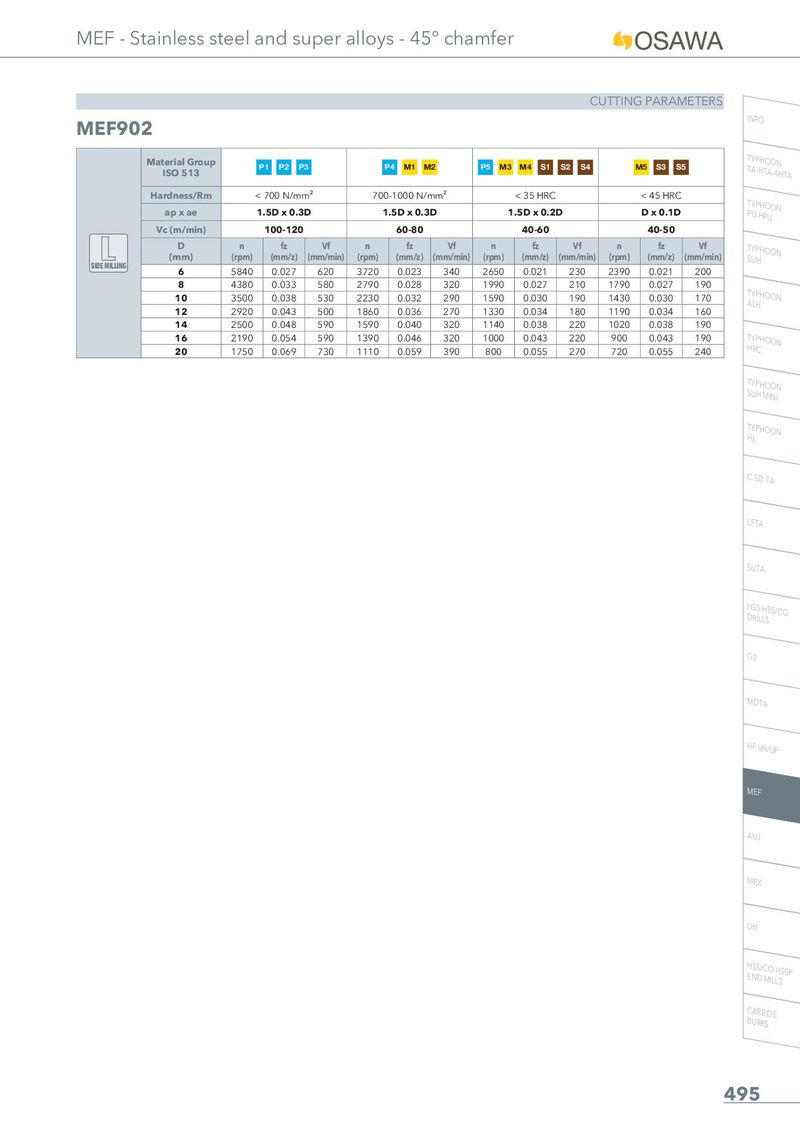

CUTTING PARAMETERS

MEF902 INFO

Material Group ISO 513		P1 P2 P3		P	4 M1 M2		P5 M3	M4 S1	S2 S4		M5 S3 S	5
Hardness/Rm		700 N/mm	²	700	-1000 N/m	m²		< 35 HRC			< 45 HRC
ap x ae	1	.5D x 0.3D		1	.5D x 0.3D		1	.5D x 0.2	D		D x 0.1D
Vc (m/min)		100-120			60-80			40-60			40-50
D (mm)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
SIDE MILLING 6	5840	0.027	620	3720	0.023	340	2650	0.021	230	2390	0.021	200
8	4380	0.033	580	2790	0.028	320	1990	0.027	210	1790	0.027	190
10	3500	0.038	530	2230	0.032	290	1590	0.030	190	1430	0.030	170
12	2920	0.043	500	1860	0.036	270	1330	0.034	180	1190	0.034	160
14	2500	0.048	590	1590	0.040	320	1140	0.038	220	1020	0.038	190
16	2190	0.054	590	1390	0.046	320	1000	0.043	220	900	0.043	190
20	1750	0.069	730	1110	0.059	390	800	0.055	270	720	0.055	240
