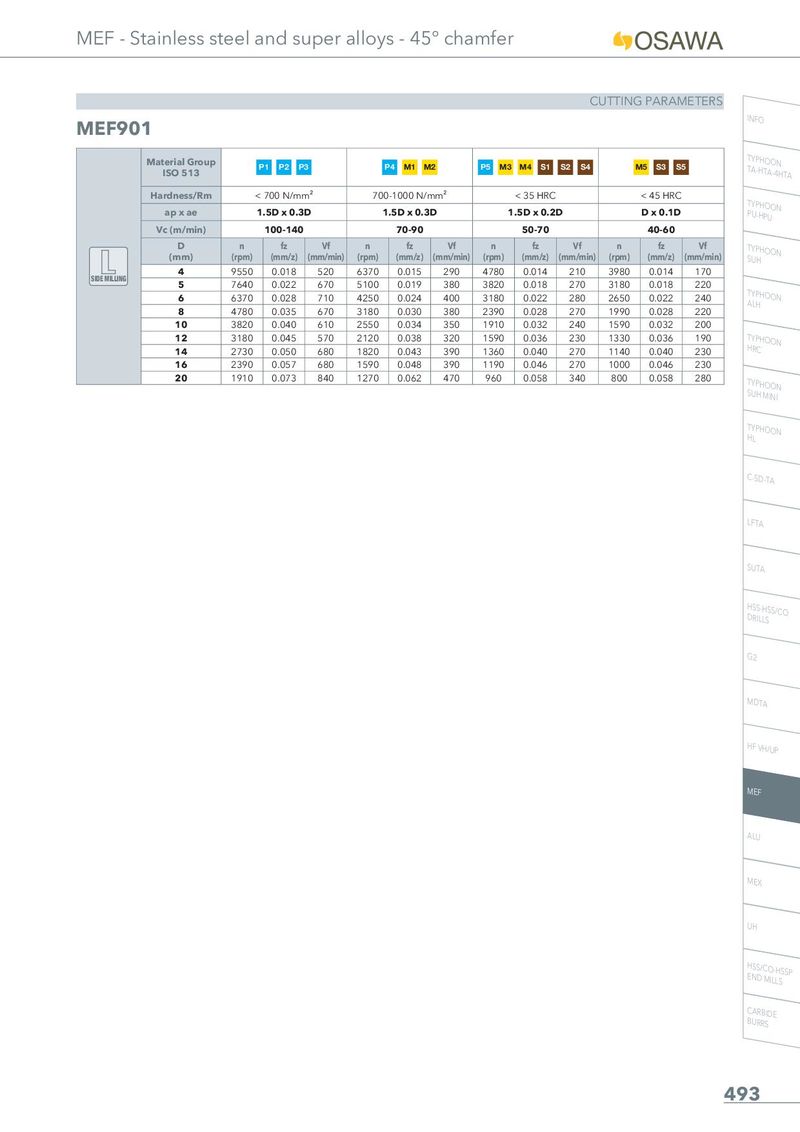

CUTTING PARAMETERS

MEF901 INFO

	Material Group ISO 513		P1 P2 P3		P	4 M1 M2		P5 M3	M4 S1	S2 S4		M5 S3 S	5
	Hardness/Rm		700 N/mm	²	700	-1000 N/m	m²		< 35 HRC			< 45 HRC
	ap x ae	1	.5D x 0.3D		1	.5D x 0.3D		1	.5D x 0.2	D		D x 0.1D
	Vc (m/min)		100-140			70-90			50-70			40-60
	D (mm)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	4	9550	0.018	520	6370	0.015	290	4780	0.014	210	3980	0.014	170
SIDE MILLING	5	7640	0.022	670	5100	0.019	380	3820	0.018	270	3180	0.018	220
	6	6370	0.028	710	4250	0.024	400	3180	0.022	280	2650	0.022	240
	8	4780	0.035	670	3180	0.030	380	2390	0.028	270	1990	0.028	220
	10	3820	0.040	610	2550	0.034	350	1910	0.032	240	1590	0.032	200
	12	3180	0.045	570	2120	0.038	320	1590	0.036	230	1330	0.036	190
	14	2730	0.050	680	1820	0.043	390	1360	0.040	270	1140	0.040	230
	16	2390	0.057	680	1590	0.048	390	1190	0.046	270	1000	0.046	230
	20	1910	0.073	840	1270	0.062	470	960	0.058	340	800	0.058	280
