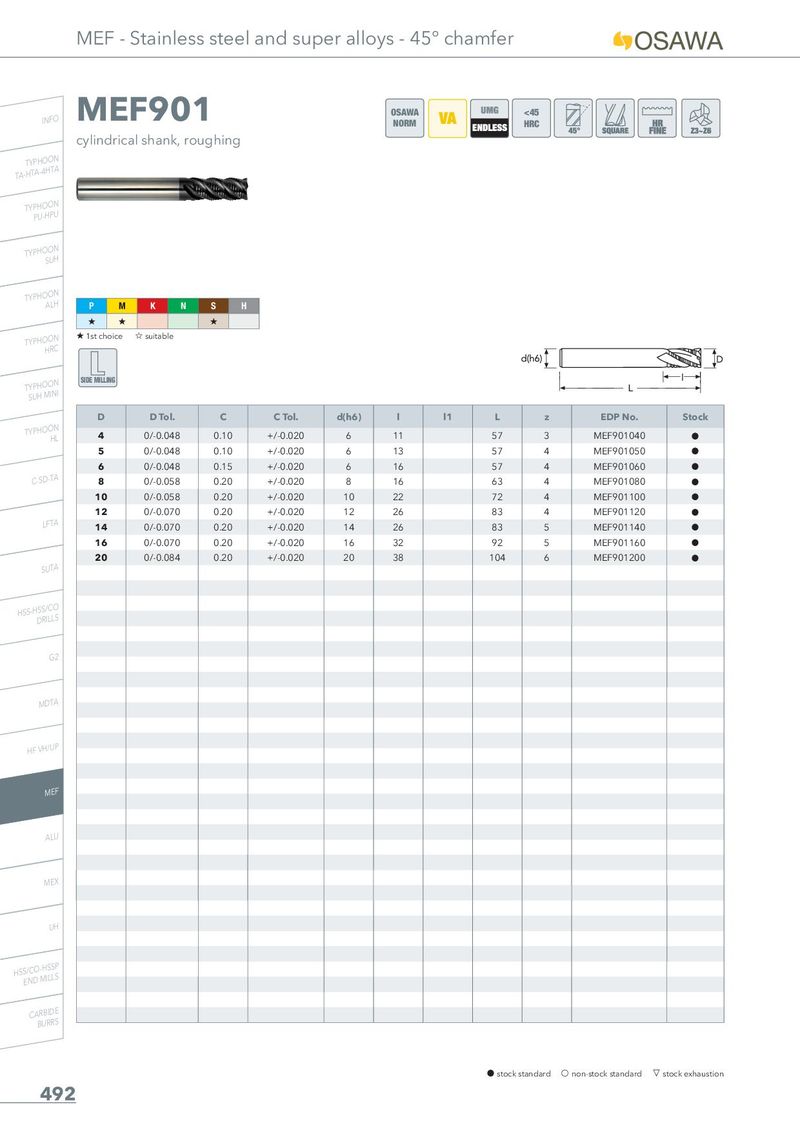

MEF901
OSAWA <45 NORM HRC
cylindrical shank, roughing
| P M | K | N | S | H |
| � � | � | |||
| �1st choice SIDE MILLING | �suitable |
ALH
TYPHOON HRC
TYPHOON SUH MINI
| D | D Tol. | C | C Tol. | d(h6) | l | l1 L | z | EDP No. | Stock |
| 4 | 0/-0.048 | 0.10 | +/-0.020 | 6 | 11 | 57 | 3 | MEF901040 | h |
| 5 | 0/-0.048 | 0.10 | +/-0.020 | 6 | 13 | 57 | 4 | MEF901050 | h |
| 6 | 0/-0.048 | 0.15 | +/-0.020 | 6 | 16 | 57 | 4 | MEF901060 | h |
| 8 | 0/-0.058 | 0.20 | +/-0.020 | 8 | 16 | 63 | 4 | MEF901080 | h |
| 10 | 0/-0.058 | 0.20 | +/-0.020 | 10 | 22 | 72 | 4 | MEF901100 | h |
| 12 | 0/-0.070 | 0.20 | +/-0.020 | 12 | 26 | 83 | 4 | MEF901120 | h |
| 14 | 0/-0.070 | 0.20 | +/-0.020 | 14 | 26 | 83 | 5 | MEF901140 | h |
| 16 | 0/-0.070 | 0.20 | +/-0.020 | 16 | 32 | 92 | 5 | MEF901160 | h |
| 20 | 0/-0.084 | 0.20 | +/-0.020 | 20 | 38 | 104 | 6 | MEF901200 | h |
