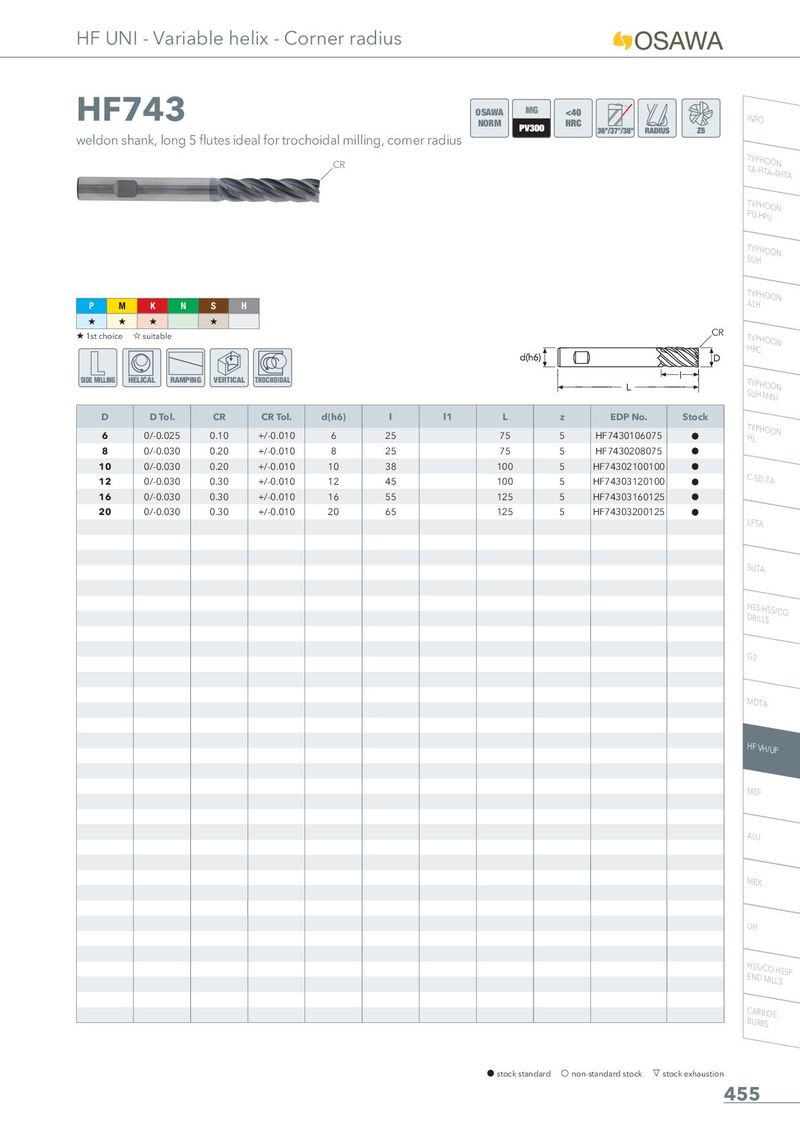

HF743
weldon shank, long 5 flutes ideal for trochoidal milling, corner radius
CR
OSAWA NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S H | |||||||
| � � �1st choice | � �suitable | � | CR | ||||||
| SIDE MILLING | HELICAL RAMPING | VERTICAL | TROCHOIDAL | ||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z EDP No. | Stock |
| 6 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 25 | 75 | 5 HF7430106075 | h | |
| 8 | 0/-0.030 | 0.20 | +/-0.010 | 8 | 25 | 75 | 5 HF7430208075 | h | |
| 10 | 0/-0.030 | 0.20 | +/-0.010 | 10 | 38 | 100 | 5 HF74302100100 | h | |
| 12 | 0/-0.030 | 0.30 | +/-0.010 | 12 | 45 | 100 | 5 HF74303120100 | h | |
| 16 | 0/-0.030 | 0.30 | +/-0.010 | 16 | 55 | 125 | 5 HF74303160125 | h | |
| 20 | 0/-0.030 | 0.30 | +/-0.010 | 20 | 65 | 125 | 5 HF74303200125 | h |
