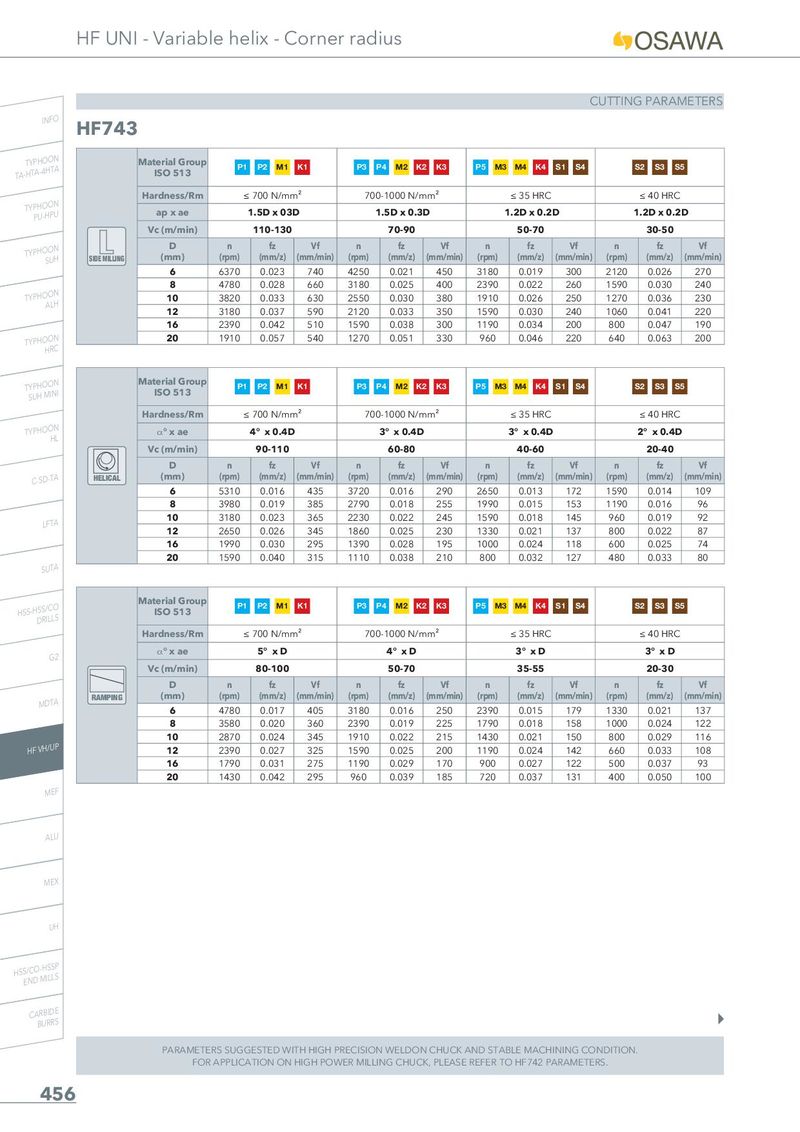

CUTTING PARAMETERS

INFO HF743

Material Group ISO 513	P1	P2 M1	K1	P3	P4 M2 K	2 K3	P5 M3	M4 K4	S1 S4		S2 S3 S	5
Hardness/Rm	≤	700 N/mm	²	70	0-1000 N/m	m²		≤ 35 HRC			≤ 40 HRC
ap x ae		1.5D x 03D			1.5D x 0.3	D		1.2D x 0.2	D		1.2D x 0.2	D
Vc (m/min)		110-130			70-90			50-70			30-50
SIDE MILLING D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
6	6370	0.023	740	4250	0.021	450	3180	0.019	300	2120	0.026	270
8	4780	0.028	660	3180	0.025	400	2390	0.022	260	1590	0.030	240
10	3820	0.033	630	2550	0.030	380	1910	0.026	250	1270	0.036	230
12	3180	0.037	590	2120	0.033	350	1590	0.030	240	1060	0.041	220
16	2390	0.042	510	1590	0.038	300	1190	0.034	200	800	0.047	190
20	1910	0.057	540	1270	0.051	330	960	0.046	220	640	0.063	200

PU-HPU

SUH

ALH

TYPHOON HRC

Mate IS	rial Group O 513	P1	P2 M1	K1	P3	P4 M2 K	2 K3	P5 M3	M4 K4	S1 S4		S2 S3 S5
Hard	ness/Rm	≤	700 N/mm	²	70	0-1000 N/m	m²		≤ 35 HRC			≤ 40 HRC
�	° x ae		4° x 0.4D			3° x 0.4D			3° x 0.4D			2° x 0.4D
Vc	(m/min)		90-110			60-80			40-60			20-40
HELICAL	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	6	5310	0.016	435	3720	0.016	290	2650	0.013	172	1590	0.014	109
	8	3980	0.019	385	2790	0.018	255	1990	0.015	153	1190	0.016	96
	10	3180	0.023	365	2230	0.022	245	1590	0.018	145	960	0.019	92
	12	2650	0.026	345	1860	0.025	230	1330	0.021	137	800	0.022	87
	16	1990	0.030	295	1390	0.028	195	1000	0.024	118	600	0.025	74
	20	1590	0.040	315	1110	0.038	210	800	0.032	127	480	0.033	80

TYPHOON SUH MINI

HL

C-SD-TA

LFTA

SUTA

	Material Group ISO 513	P1	P2 M1	K1	P3	P4 M2 K2	K3	P5 M3	M4 K4	S1 S4		S2 S3 S	5
	Hardness/Rm	≤	700 N/mm	²	70	0-1000 N/m	m²		≤ 35 HRC			≤ 40 HRC
	�° x ae		5° x D			4° x D			3° x D			3° x D
	Vc (m/min)		80-100			50-70			35-55			20-30
	D	n	fz	Vf	n	fz	Vf	n	fz	Vf	n	fz	Vf
RAMPING	(mm)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)
	6	4780	0.017	405	3180	0.016	250	2390	0.015	179	1330	0.021	137
	8	3580	0.020	360	2390	0.019	225	1790	0.018	158	1000	0.024	122
	10	2870	0.024	345	1910	0.022	215	1430	0.021	150	800	0.029	116
	12	2390	0.027	325	1590	0.025	200	1190	0.024	142	660	0.033	108
	16	1790	0.031	275	1190	0.029	170	900	0.027	122	500	0.037	93
	20	1430	0.042	295	960	0.039	185	720	0.037	131	400	0.050	100
