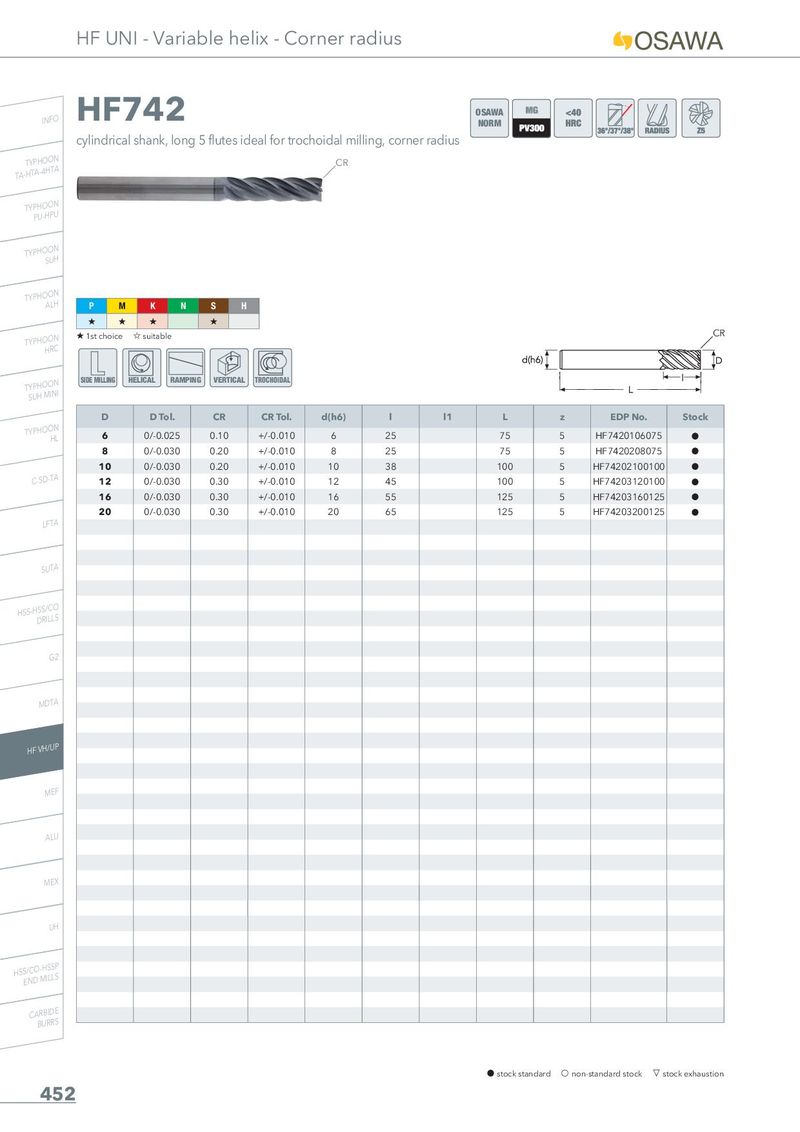

HF742
OSAWA NORM
cylindrical shank, long 5 flutes ideal for trochoidal milling, corner radius
CR
| P M | K N | S H | |||||||
| � � | � | � | |||||||
| �1st choice | �suitable | CR | |||||||
| SIDE MILLING | HELICAL RAMPING | VERTICAL | TROCHOIDAL | ||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l l1 | L | z | EDP No. | Stock |
| 6 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 25 | 75 | 5 | HF7420106075 | h |
| 8 | 0/-0.030 | 0.20 | +/-0.010 | 8 | 25 | 75 | 5 | HF7420208075 | h |
| 10 | 0/-0.030 | 0.20 | +/-0.010 | 10 | 38 | 100 | 5 | HF74202100100 | h |
| 12 | 0/-0.030 | 0.30 | +/-0.010 | 12 | 45 | 100 | 5 | HF74203120100 | h |
| 16 | 0/-0.030 | 0.30 | +/-0.010 | 16 | 55 | 125 | 5 | HF74203160125 | h |
| 20 | 0/-0.030 | 0.30 | +/-0.010 | 20 | 65 | 125 | 5 | HF74203200125 | h |
