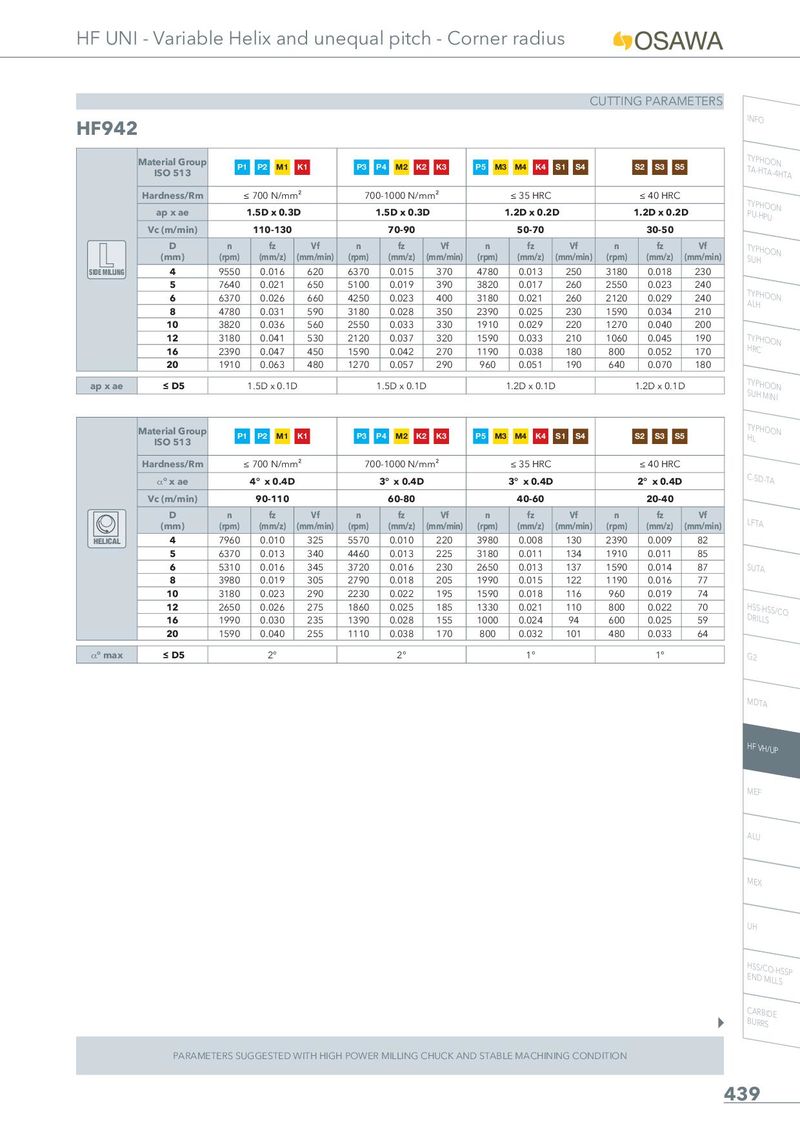

HF UNI - Variable Helix and unequal pitch - Corner radius CUTTING PARAMETERS HF942 INFO Material Group P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5 TTYAP-HHTOAO-4NHTA ISO 513 Hardness/Rm ≤ 700 N/mm² 700-1000 N/mm² ≤ 35 HRC ≤ 40 HRC TPYUP-HHPOUON ap x ae 1.5D x 0.3D 1.5D x 0.3D 1.2D x 0.2D 1.2D x 0.2D Vc (m/min) 110-130 70-90 50-70 30-50 D n fz Vf n fz Vf n fz Vf n fz Vf TSUYPHHOON (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) SIDE MILLING 4 9550 0.016 620 6370 0.015 370 4780 0.013 250 3180 0.018 230 5 7640 0.021 650 5100 0.019 390 3820 0.017 260 2550 0.023 240 TAYLPHHOON 6 6370 0.026 660 4250 0.023 400 3180 0.021 260 2120 0.029 240 8 4780 0.031 590 3180 0.028 350 2390 0.025 230 1590 0.034 210 10 3820 0.036 560 2550 0.033 330 1910 0.029 220 1270 0.040 200 12 3180 0.041 530 2120 0.037 320 1590 0.033 210 1060 0.045 190 THYRPCHOON 16 2390 0.047 450 1590 0.042 270 1190 0.038 180 800 0.052 170 20 1910 0.063 480 1270 0.057 290 960 0.051 190 640 0.070 180 ap x ae ≤ D5 1.5D x 0.1D 1.5D x 0.1D 1.2D x 0.1D 1.2D x 0.1D TSUYPHHMOIONIN Material Group P1 P2 M1 K1 P3 P4 M2 K2 K3 P5 M3 M4 K4 S1 S4 S2 S3 S5 THYLPHOON ISO 513 Hardness/Rm ≤ 700 N/mm² 700-1000 N/mm² ≤ 35 HRC ≤ 40 HRC _° x ae 4° x 0.4D 3° x 0.4D 3° x 0.4D 2° x 0.4D C-SD-TA Vc (m/min) 90-110 60-80 40-60 20-40 D n fz Vf n fz Vf n fz Vf n fz Vf LFTA (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) HELICAL 4 7960 0.010 325 5570 0.010 220 3980 0.008 130 2390 0.009 82 5 6370 0.013 340 4460 0.013 225 3180 0.011 134 1910 0.011 85 6 5310 0.016 345 3720 0.016 230 2650 0.013 137 1590 0.014 87 SUTA 8 3980 0.019 305 2790 0.018 205 1990 0.015 122 1190 0.016 77 10 3180 0.023 290 2230 0.022 195 1590 0.018 116 960 0.019 74 12 2650 0.026 275 1860 0.025 185 1330 0.021 110 800 0.022 70 HDSRSIL-LHSSS/CO 16 1990 0.030 235 1390 0.028 155 1000 0.024 94 600 0.025 59 20 1590 0.040 255 1110 0.038 170 800 0.032 101 480 0.033 64 _° max ≤ D5 2° 2° 1° 1° G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION 439
