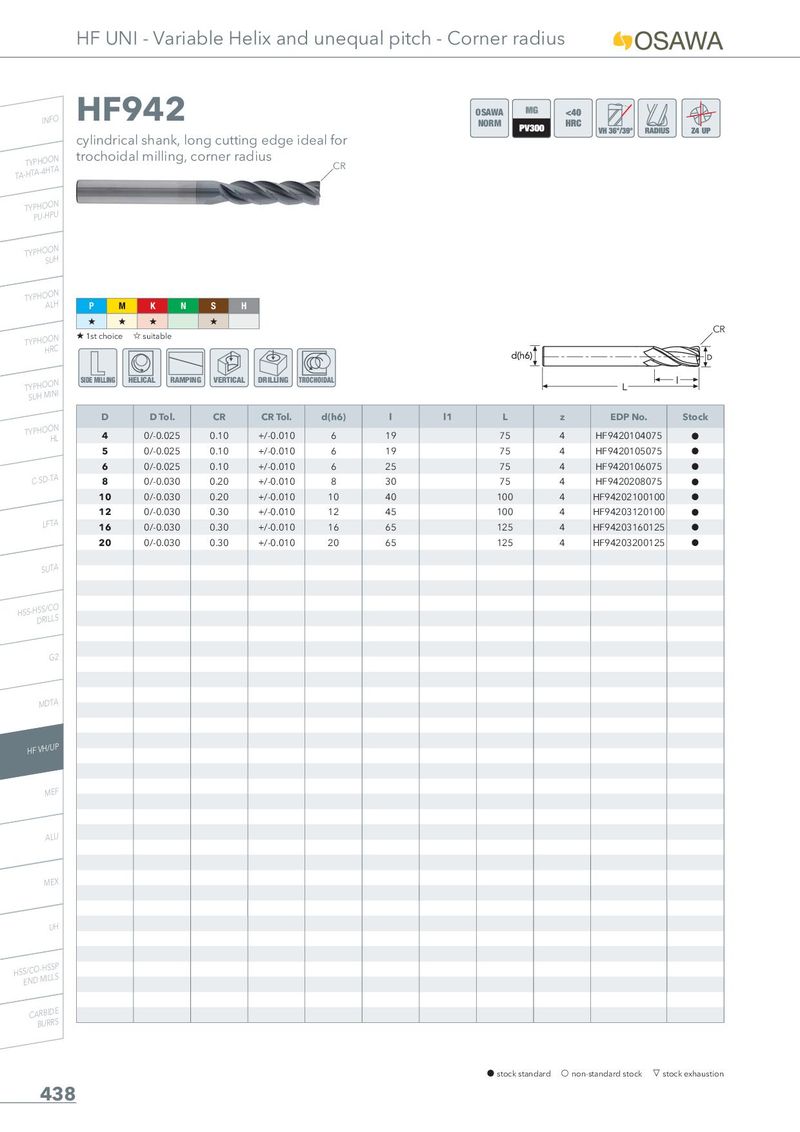

HF942
OSAWA NORM
cylindrical shank, long cutting edge ideal for
trochoidal milling, corner radius
CR
| P M | K N | S H | ||||||||
| � � | � | � | ||||||||
| �1st choice | �suitable | |||||||||
| SIDE MILLING | HELICAL RAMPIN | G VERTICAL | DRILLING | TROCHOIDAL | ||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 4 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 19 | 75 | 4 | HF9420104075 | h | |
| 5 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 19 | 75 | 4 | HF9420105075 | h | |
| 6 | 0/-0.025 | 0.10 | +/-0.010 | 6 | 25 | 75 | 4 | HF9420106075 | h | |
| 8 | 0/-0.030 | 0.20 | +/-0.010 | 8 | 30 | 75 | 4 | HF9420208075 | h | |
| 10 | 0/-0.030 | 0.20 | +/-0.010 | 10 | 40 | 100 | 4 | HF94202100100 | h | |
| 12 | 0/-0.030 | 0.30 | +/-0.010 | 12 | 45 | 100 | 4 | HF94203120100 | h | |
| 16 | 0/-0.030 | 0.30 | +/-0.010 | 16 | 65 | 125 | 4 | HF94203160125 | h | |
| 20 | 0/-0.030 | 0.30 | +/-0.010 | 20 | 65 | 125 | 4 | HF94203200125 | h |
