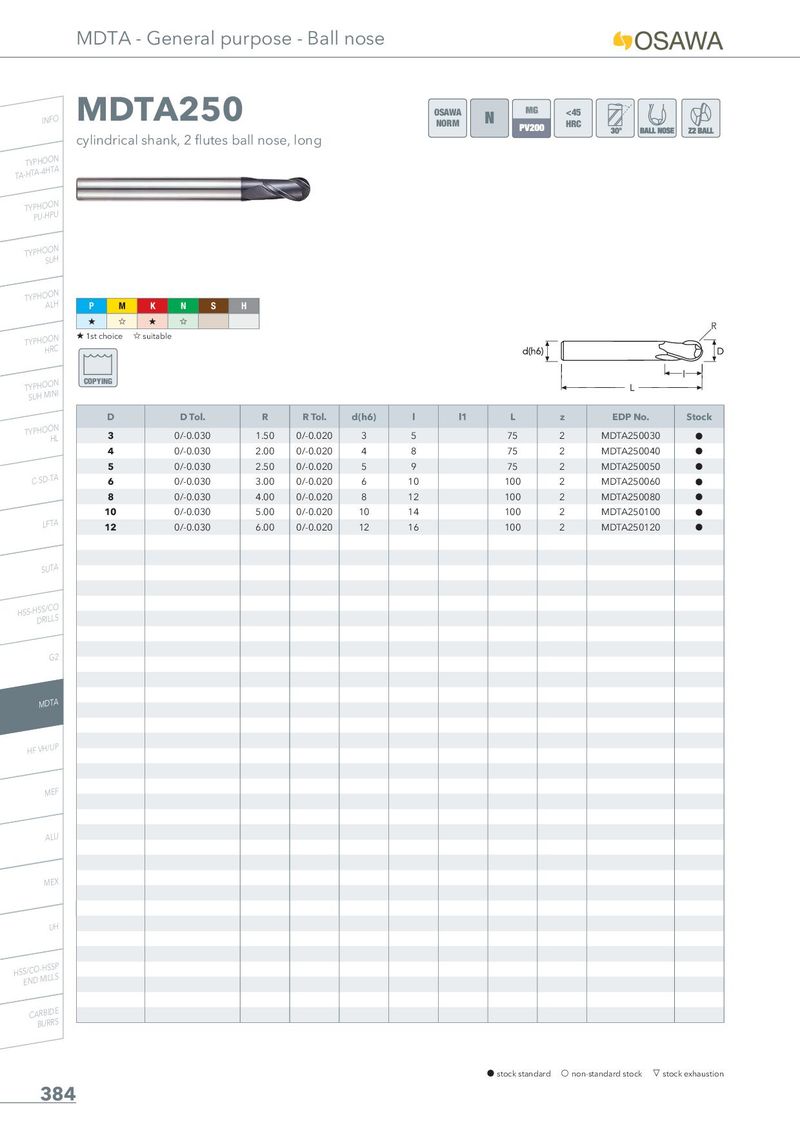

MDTA250
OSAWA <45 NORM HRC
cylindrical shank, 2 flutes ball nose, long
| P M | K N S | H | ||||||||
| � � | � � | R | ||||||||
| �1st choice COPYING | �suitable | |||||||||
| D | D Tol. | R | R Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 3 | 0/-0.030 | 1.50 | 0/-0.020 | 3 | 5 | 75 | 2 | MDTA250030 | h | |
| 4 | 0/-0.030 | 2.00 | 0/-0.020 | 4 | 8 | 75 | 2 | MDTA250040 | h | |
| 5 | 0/-0.030 | 2.50 | 0/-0.020 | 5 | 9 | 75 | 2 | MDTA250050 | h | |
| 6 | 0/-0.030 | 3.00 | 0/-0.020 | 6 | 10 | 100 | 2 | MDTA250060 | h | |
| 8 | 0/-0.030 | 4.00 | 0/-0.020 | 8 | 12 | 100 | 2 | MDTA250080 | h | |
| 10 | 0/-0.030 | 5.00 | 0/-0.020 | 10 | 14 | 100 | 2 | MDTA250100 | h | |
| 12 | 0/-0.030 | 6.00 | 0/-0.020 | 12 | 16 | 100 | 2 | MDTA250120 | h |
