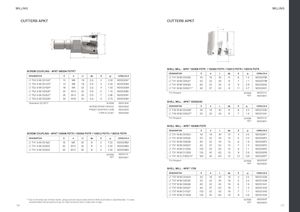

CUTTERS APKT CUTTERS APKT
d
Ap
L d D
L1
SCREW COUPLING - APKT 060204 PDTR**
90° Ap
D SHELL MILL - APKT 100308 PDTR / 100304 PDTR / 100312 PDTR / 100316 PDTR
| DESIGNATION | D | d | L | Ap | Z | α | CATALOG # |
| LT 741 M-W-D040/6 | 40 | 16 | 40 | 9 | 6 | 1.5 | M2002798 |
| LT 741 M-W-D050/7 | 50 | 22 | 40 | 9 | 7 | 1.1 | M2002799 |
| LT 741 M-W-D063/8 | 63 | 22 | 40 | 9 | 8 | 0.9 | M2002800 |
| LT 741 M-W-D080/11 | 80 | 27 | 50 | 9 | 11 | 0.7 | M2002801 |
| On Request | SCREW KEY | M2002181 M2000601 |
| DESIGNATION | D | d | L1 | Ap | Z | αo | CATALOG # |
| LT 752 S-W-D010/2 | 10 | M6 | 19 | 0.5 | 2 | 3.00 | M2003087 |
| LT 752 S-W-D012/3 | 12 | M6 | 19 | 0.5 | 3 | 2.20 | M2003088 |
| LT 752 S-W-D016/4 | 16 | M8 | 22 | 0.5 | 4 | 1.50 | M2003089 |
| LT 752 S-W-D020/5 | 20 | M10 | 25 | 0.5 | 5 | 1.15 | M2003090 |
| LT 752 S-W-D025/7 | 25 | M12 | 25 | 0.5 | 7 | 0.90 | M2003091 |
| LT 752 S-W-D032/8 | 32 | M16 | 30 | 0.5 | 8 | 0.70 | M2003094 |
| Available Q3 2017 | SCREW | M2001640 | |||||
| SCREW | DRIVER | HANDLE | M2002922 | ||||
| PRESET | ADAPT | ER 0.4NM | M2002923 | ||||
| TORX | PLUS BIT | M2003064 |
SHELL MILL - APKT 100332/40
| DESIGNATION | D | d | L | Ap | Z | α | CATALOG # |
| LT 745 M-W-D040/6 | 40 | 16 | 40 | 9 | 6 | 2.0 | M2001580 |
| LT 745 M-W-D050/7 | 50 | 22 | 40 | 9 | 7 | 1.8 | M2001581 |
| On Request | SCREW KEY | M2002181 M2000601 |
SHELL MILL - APKT 160408 PDTR
| DESIGNATION | D | d | L | Ap | Z | α | CATALOG # |
| LT 731 M-W-D040/4 | 40 | 16 | 40 | 15 | 4 | 2.5 | M2002971 |
| LT 731 M-W-D050/5 | 50 | 22 | 40 | 15 | 5 | 2.2 | M2002972 |
| LT 731 M-W-D063/6 | 63 | 22 | 40 | 15 | 6 | 1.8 | M2002973 |
| LT 731 M-W-D080/7 | 80 | 27 | 50 | 15 | 7 | 1.4 | M2002974 |
| LT 731 M-W-D100/8 | 100 | 32 | 50 | 15 | 8 | 1.1 | M2002975 |
| LT 731 M-W-D125/9 | 125 | 40 | 63 | 15 | 9 | 0.8 | M2002976 |
| LT 731 M-D-D160/10 | 160 | 40 | 63 | 15 | 10 | N/A | M2002977 |
| On Request | SCREW KEY | M2000597 M2000602 |
| DESIGNATION | D | d | L1 | Ap | Z | α | CATALOG # |
| LT 741 S-W-D016/2 | 16 | M8 | 25 | 9 | 2 | 7.50 | M2002962 |
| LT 741 S-W-D020/3 | 20 | M10 | 30 | 9 | 3 | 5.00 | M2002963 |
| LT 741 S-W-D025/4 | 25 | M12 | 35 | 9 | 4 | 3.30 | M2002964 |
| SCREW KEY | M2002181 M2000601 |
SHELL MILL - APKT 1705
| DESIGNATION | D | d | L | Ap | Z | α | CATALOG # |
| LT 737 M-W-D040/4 | 40 | 16 | 40 | 16 | 4 | 2.5 | M2001838 |
| LT 737 M-W-D050/5 | 50 | 22 | 40 | 16 | 5 | 2.2 | M2001839 |
| LT 737 M-W-D063/6 | 63 | 22 | 40 | 16 | 6 | 1.8 | M2001841 |
| LT 737 M-W-D080/7 | 80 | 27 | 50 | 16 | 7 | 1.4 | M2001842 |
| LT 737 M-W-D100/7 | 100 | 32 | 50 | 16 | 7 | 1.1 | M2001843 |
| LT 737 M-W-D125/9 | 125 | 40 | 63 | 16 | 9 | 0.8 | M2001844 |
| SCREW KEY | M2000597 M2000602 |
