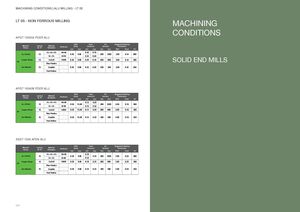

MACHINING CONDITIONS | ALU MILLING - LT 05 USER GUIDE
LT 05 - NON FERROUS MILLING MACHINING
CONDITIONS
APGT 100304 PDER ALU
| Material Group | Lamina Gr. N° | Material Examples | Hardness | D [m min | OC m] max | Fe [mm min | ed /rev] max | V [m/ min | C min] max | Suggeste Para DOC | d Starting meters Feed | VC |
| AL ( | 13 | 4% < Si < 8% | 100 HB | 0.30 | 9.00 | 0.10 | 0.18 | 200 | 1200 | 3.00 | 0.14 | 800 |
| Si < 4% | 60 HB | 0.12 | 0.20 | |||||||||
| NF Copper Alloys | 14 | CuZn30 | 100HB | 0.30 | 9.00 | 0.10 | 0.18 | 200 | 800 | 3.00 | 0.14 | 500 |
| Fiber Plastics | - | |||||||||||
| Non Metallic | 15 | Graphite | - | 0.30 | 9.00 | 0.12 | 0.20 | 180 | 300 | 3.00 | 0.12 | 250 |
| Hard Rubber | - |
APGT 160408 PDER ALU
| Material Group | Lamina Gr. N° | Material Examples | Hardness | D [m min | OC m] max | Fe [mm min | ed /rev] max | V [m/ min | C min] max | Suggeste Para DOC | d Starting meters Feed | VC |
| AL ( | 13 | 4% < Si < 8% | 100 HB | 0.50 | 15.00 | 0.13 | 0.29 | 200 | 1200 | 4.00 | 0.16 | 800 |
| Si < 4% | 60 HB | 0.15 | 0.32 | |||||||||
| NF Copper Alloys | 14 | CuZn30 | 100HB | 0.50 | 15.00 | 0.13 | 0.29 | 200 | 800 | 4.00 | 0.16 | 500 |
| Fiber Plastics | - | |||||||||||
| Non Metallic | 15 | Graphite | - | 0.50 | 15.00 | 0.15 | 0.32 | 180 | 300 | 4.00 | 0.16 | 250 |
| Hard Rubber | - |
SEGT 1204 AFEN ALU
| Material Group | Lamina Gr. N° | Material Examples | Hardness | D [m min | OC m] max | Fe [mm min | ed /rev] max | V [m/ min | C min] max | Suggeste Para DOC | d Starting meters Feed | VC |
| AL ( | 13 | 4% < Si < 8% Si < 4% | 100 HB 60 HB | 0.30 | 9.00 | 0.10 0.12 | 0.35 | 200 | 1200 | 3.00 | 0.25 | 800 |
| NF Copper Alloys | 14 | CuZn30 | 100HB | 0.30 | 9.00 | 0.10 | 0.35 | 200 | 800 | 3.00 | 0.25 | 500 |
| Fiber Plastics | - | |||||||||||
| Non Metallic | 15 | Graphite | - | 0.30 | 9.00 | 0.12 | 0.35 | 180 | 300 | 3.00 | 0.25 | 250 |
| Hard Rubber | - |
