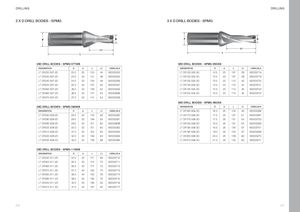

2 X D DRILL BODIES - SPMG 3 X D DRILL BODIES - SPMG
L1 L
2XD DRILL BODIES - SPMG 07T308 3XD DRILL BODIES - SPMG 050204
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR220 S07-2D | 22.0 | 25 | 123 | 44 | M2003253 |
| LT DR230 S07-2D | 23.0 | 32 | 131 | 46 | M2003255 |
| LT DR240 S07-2D | 24.0 | 32 | 134 | 48 | M2003256 |
| LT DR250 S07-2D | 25.0 | 32 | 137 | 50 | M2003257 |
| LT DR260 S07-2D | 26.0 | 32 | 139 | 52 | M2003258 |
| LT DR265 S07-2D | 26.5 | 32 | 141 | 54 | M2003698 |
| LT DR270 S07-2D | 27.0 | 32 | 141 | 54 | M2003259 |
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR125 S05-3D | 12.5 | 20 | 107 | 39 | M2003718 |
| LT DR130 S05-3D | 13.0 | 20 | 107 | 39 | M2003719 |
| LT DR135 S05-3D | 13.5 | 20 | 110 | 42 | M2003720 |
| LT DR140 S05-3D | 14.0 | 20 | 110 | 42 | M2003721 |
| LT DR145 S05-3D | 14.5 | 20 | 114 | 45 | M2003722 |
| LT DR150 S05-3D | 15.0 | 20 | 114 | 45 | M2003723 |
3XD DRILL BODIES - SPMG 060204
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR160 S06-3D | 16.0 | 25 | 124 | 48 | M2003266 |
| LT DR170 S06-3D | 17.0 | 25 | 127 | 51 | M2003267 |
| LT DR175 S06-3D | 17.5 | 25 | 131 | 54 | M2003700 |
| LT DR180 S06-3D | 18.0 | 25 | 131 | 54 | M2003268 |
| LT DR185 S06-3D | 18.5 | 25 | 134 | 57 | M2003701 |
| LT DR190 S06-3D | 19.0 | 25 | 134 | 57 | M2003269 |
| LT DR200 S06-3D | 20.0 | 25 | 139 | 60 | M2003270 |
| LT DR210 S06-3D | 21.0 | 25 | 142 | 63 | M2003271 |
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR280 S09-2D | 28.0 | 32 | 144 | 56 | M2003260 |
| LT DR290 S09-2D | 29.0 | 32 | 146 | 58 | M2003261 |
| LT DR295 S09-2D | 29.5 | 32 | 151 | 60 | M2003699 |
| LT DR300 S09-2D | 30.0 | 32 | 151 | 60 | M2003262 |
| LT DR310 S09-2D | 31.0 | 32 | 154 | 62 | M2003263 |
| LT DR320 S09-2D | 32.0 | 32 | 156 | 64 | M2003264 |
| LT DR330 S09-2D | 33.0 | 32 | 159 | 66 | M2003265 |
2XD DRILL BODIES - SPMG 110408
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR340 S11-2D | 34.0 | 40 | 171 | 68 | M2003710 |
| LT DR350 S11-2D | 35.0 | 40 | 174 | 70 | M2003711 |
| LT DR360 S11-2D | 36.0 | 40 | 177 | 72 | M2003712 |
| LT DR370 S11-2D | 37.0 | 40 | 180 | 74 | M2003713 |
| LT DR380 S11-2D | 38.0 | 40 | 183 | 76 | M2003714 |
| LT DR390 S11-2D | 39.0 | 40 | 185 | 78 | M2003715 |
| LT DR400 S11-2D | 40.0 | 40 | 188 | 80 | M2003716 |
| LT DR410 S11-2D | 41.0 | 40 | 191 | 82 | M2003717 |
