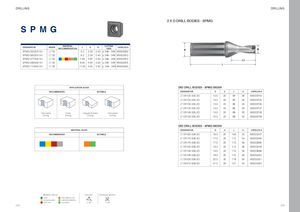

2 X D DRILL BODIES - SPMG
SPMG
| DESIGNATION | GRADE | MATERIAL RECOMMENDATION | L | S | R | CUTTING DATA | CATALOG # |
| SPMG 050204 NN | LT 30 | | 5.0 | 2.38 | 0.40 | p.346 - 349 | M3003882 |
| SPMG 060204 NN | LT 30 | | 6.0 | 2.38 | 0.40 | p.346 - 349 | M3002913 |
| SPMG 07T308 NN | LT 30 | | 7.94 | 3.97 | 0.80 | p.346 - 349 | M3002914 |
| SPMG 090408 NN | LT 30 | | 9.80 | 4.30 | 0.80 | p.346 - 349 | M3002915 |
| SPMG 110408 NN | LT 30 | | 11.50 | 4.80 | 0.80 | p. 346 - 349 | M3003883 |
| RECOM | APPLICAT MENDED | ION GUI | DE | SUIT | ABLE | |
| Interr Dril | upted ling | Cross Drilling | Irreg | ular Surf Drilling | ace | Interrupt Drilling | ed |
L1 L
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR125 S05-2D | 12.5 | 20 | 94 | 26 | M2003704 |
| LT DR130 S05-2D | 13.0 | 20 | 94 | 26 | M2003705 |
| LT DR135 S05-2D | 13.5 | 20 | 96 | 28 | M2003706 |
| LT DR140 S05-2D | 14.0 | 20 | 96 | 28 | M2003707 |
| LT DR145 S05-2D | 14.5 | 20 | 99 | 30 | M2003708 |
| LT DR150 S05-2D | 15.0 | 20 | 99 | 30 | M2003709 |
2XD DRILL BODIES - SPMG 060204
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR160 S06-2D | 16.0 | 25 | 108 | 32 | M2003247 |
| LT DR170 S06-2D | 17.0 | 25 | 110 | 34 | M2003248 |
| LT DR175 S06-2D | 17.5 | 25 | 113 | 36 | M2003695 |
| LT DR180 S06-2D | 18.0 | 25 | 113 | 36 | M2003249 |
| LT DR185 S06-2D | 18.5 | 25 | 115 | 38 | M2003696 |
| LT DR190 S06-2D | 19.0 | 25 | 115 | 38 | M2003250 |
| LT DR200 S06-2D | 20.0 | 25 | 119 | 40 | M2003251 |
| LT DR210 S06-2D | 21.0 | 25 | 121 | 42 | M2003252 |
| MATERIAL GROUP | | COOLANT | TECHNICAL SECTION | |
| STEEL | HIGH TEMP ALLOYS | | | |
| STAINLESS STEEL | HARDENED MATERIAL | | | |
| CAST IRON | ALU(>8%Si) | p. 357 | | p. 370 |
