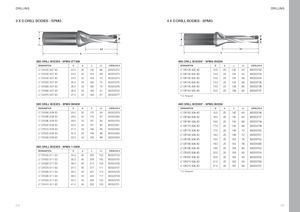

3 X D DRILL BODIES - SPMG 4 X D DRILL BODIES - SPMG
3XD DRILL BODIES - SPMG 07T308 4XD DRILL BODIES* - SPMG 050204
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR220 S07-3D | 22.0 | 25 | 145 | 66 | M2003272 |
| LT DR230 S07-3D | 23.0 | 32 | 154 | 69 | M2003273 |
| LT DR240 S07-3D | 24.0 | 32 | 158 | 72 | M2003274 |
| LT DR250 S07-3D | 25.0 | 32 | 162 | 75 | M2003275 |
| LT DR260 S07-3D | 26.0 | 32 | 165 | 78 | M2003276 |
| LT DR265 S07-3D | 26.5 | 32 | 168 | 81 | M2003702 |
| LT DR270 S07-3D | 27.0 | 32 | 168 | 81 | M2003277 |
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR125 S05-4D | 12.5 | 20 | 120 | 52 | M2003732 |
| LT DR130 S05-4D | 13.0 | 20 | 120 | 52 | M2003733 |
| LT DR135 S05-4D | 13.5 | 20 | 124 | 56 | M2003434 |
| LT DR140 S05-4D | 14.0 | 20 | 124 | 56 | M2003735 |
| LT DR145 S05-4D | 14.5 | 20 | 129 | 60 | M2003736 |
| LT DR150 S05-4D | 15.0 | 20 | 129 | 60 | M2003737 |
3XD DRILL BODIES - SPMG 090408 4XD DRILL BODIES* - SPMG 060204
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR280 S09-3D | 28.0 | 32 | 172 | 84 | M2003278 |
| LT DR290 S09-3D | 29.0 | 32 | 175 | 87 | M2003280 |
| LT DR295 S09-3D | 29.5 | 32 | 181 | 90 | M2003703 |
| LT DR300 S09-3D | 30.0 | 32 | 181 | 90 | M2003281 |
| LT DR310 S09-3D | 31.0 | 32 | 185 | 93 | M2003282 |
| LT DR320 S09-3D | 32.0 | 32 | 188 | 96 | M2003283 |
| LT DR330 S09-3D | 33.0 | 32 | 192 | 99 | M2003284 |
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR155 S06-4D | 15.5 | 25 | 140 | 64 | M2003746 |
| LT DR160 S06-4D | 16.0 | 25 | 140 | 64 | M2003747 |
| LT DR165 S06-4D | 16.5 | 25 | 144 | 68 | M2003748 |
| LT DR170 S06-4D | 17.0 | 25 | 144 | 68 | M2003749 |
| LT DR175 S06-4D | 17.5 | 25 | 149 | 72 | M2003750 |
| LT DR180 S06-4D | 18.0 | 25 | 149 | 72 | M2003751 |
| LT DR185 S06-4D | 18.5 | 25 | 153 | 76 | M2003752 |
| LT DR190 S06-4D | 19.0 | 25 | 153 | 76 | M2004380 |
| LT DR195 S06-4D | 19.5 | 25 | 159 | 80 | M2003753 |
| LT DR200 S06-4D | 20.0 | 25 | 159 | 80 | M2003754 |
| LT DR205 S06-4D | 20.5 | 25 | 163 | 84 | M2003755 |
| LT DR210 S06-4D | 21.0 | 25 | 163 | 84 | M2003756 |
| LT DR215 S06-4D | 21.5 | 25 | 167 | 88 | M2003757 |
| DESIGNATION | D | d | L | L1 | CATALOG # |
| LT DR340 S11-3D | 34.0 | 40 | 205 | 102 | M2003724 |
| LT DR350 S11-3D | 35.0 | 40 | 209 | 105 | M2003725 |
| LT DR360 S11-3D | 36.0 | 40 | 213 | 108 | M2003726 |
| LT DR370 S11-3D | 37.0 | 40 | 217 | 111 | M2003727 |
| LT DR380 S11-3D | 38.0 | 40 | 221 | 114 | M2003728 |
| LT DR390 S11-3D | 39.0 | 40 | 224 | 117 | M2003729 |
| LT DR400 S11-3D | 40.0 | 40 | 228 | 120 | M2003730 |
| LT DR410 S11-3D | 41.0 | 40 | 232 | 123 | M2003731 |
