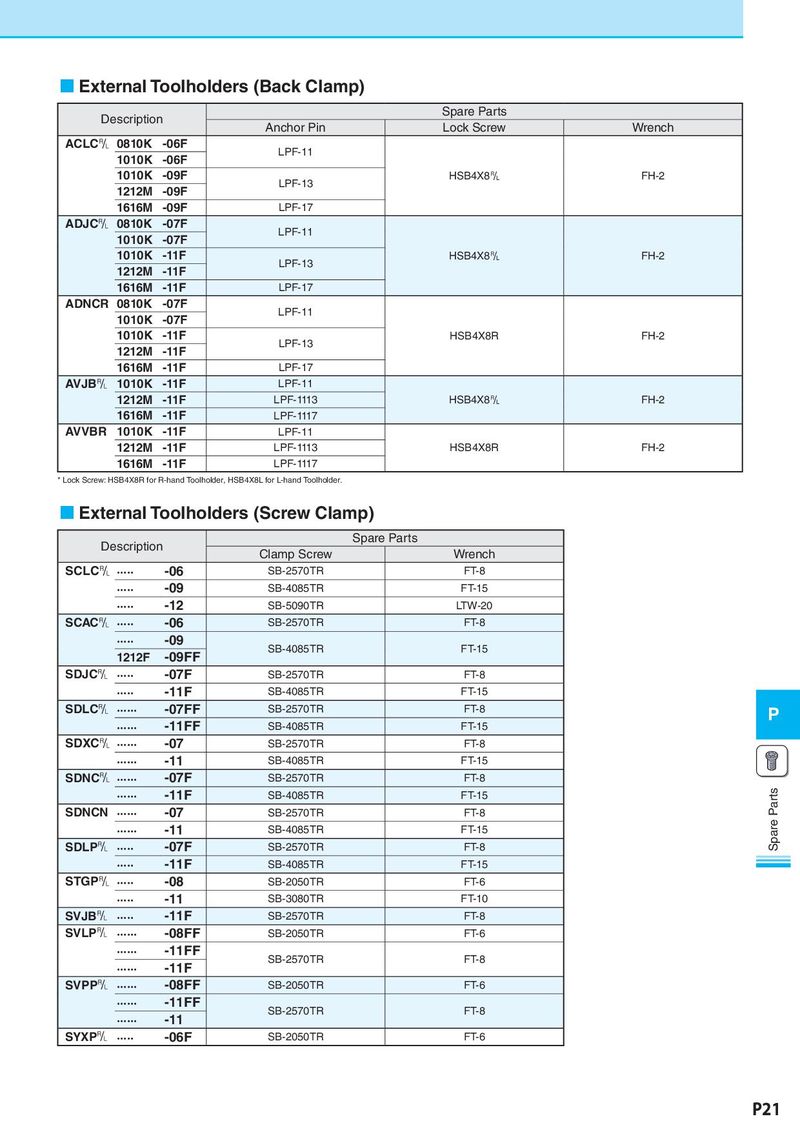

¢ External Toolholders (Back Clamp) Description Spare Parts Anchor Pin Lock Screw Wrench ACLC& 0810K -06F LPF-11 1010K -06F 1010K -09F LPF-13 HSB4X8& FH-2 1212M -09F 1616M -09F LPF-17 ADJC& 0810K -07F LPF-11 1010K -07F 1010K -11F LPF-13 HSB4X8& FH-2 1212M -11F 1616M -11F LPF-17 ADNCR 0810K -07F LPF-11 1010K -07F 1010K -11F LPF-13 HSB4X8R FH-2 1212M -11F 1616M -11F LPF-17 AVJB& 1010K -11F LPF-11 1212M -11F LPF-1113 HSB4X8& FH-2 1616M -11F LPF-1117 AVVBR 1010K -11F LPF-11 1212M -11F LPF-1113 HSB4X8R FH-2 1616M -11F LPF-1117 * Lock Screw: HSB4X8R for R-hand Toolholder, HSB4X8L for L-hand Toolholder. ¢ External Toolholders (Screw Clamp) Description Spare Parts Clamp Screw Wrench SCLC& ····· -06 SB-2570TR FT-8 ····· -09 SB-4085TR FT-15 ····· -12 SB-5090TR LTW-20 SCAC& ····· -06 SB-2570TR FT-8 ····· -09 SB-4085TR FT-15 1212F -09FF SDJC& ····· -07F SB-2570TR FT-8 ····· -11F SB-4085TR FT-15 SDLC& ······ -07FF SB-2570TR FT-8 P ······ -11FF SB-4085TR FT-15 SDXC& ······ -07 SB-2570TR FT-8 ······ -11 SB-4085TR FT-15 SDNC& ······ -07F SB-2570TR FT-8 ······ -11F SB-4085TR FT-15 Spare Parts SDNCN ······ -07 SB-2570TR FT-8 ······ -11 SB-4085TR FT-15 SDLP& ····· -07F SB-2570TR FT-8 ····· -11F SB-4085TR FT-15 STGP& ····· -08 SB-2050TR FT-6 ····· -11 SB-3080TR FT-10 SVJB& ····· -11F SB-2570TR FT-8 SVLP& ······ -08FF SB-2050TR FT-6 ······ -11FF SB-2570TR FT-8 ······ -11F SVPP& ······ -08FF SB-2050TR FT-6 ······ -11FF SB-2570TR FT-8 ······ -11 SYXP& ····· -06F SB-2050TR FT-6 P21
