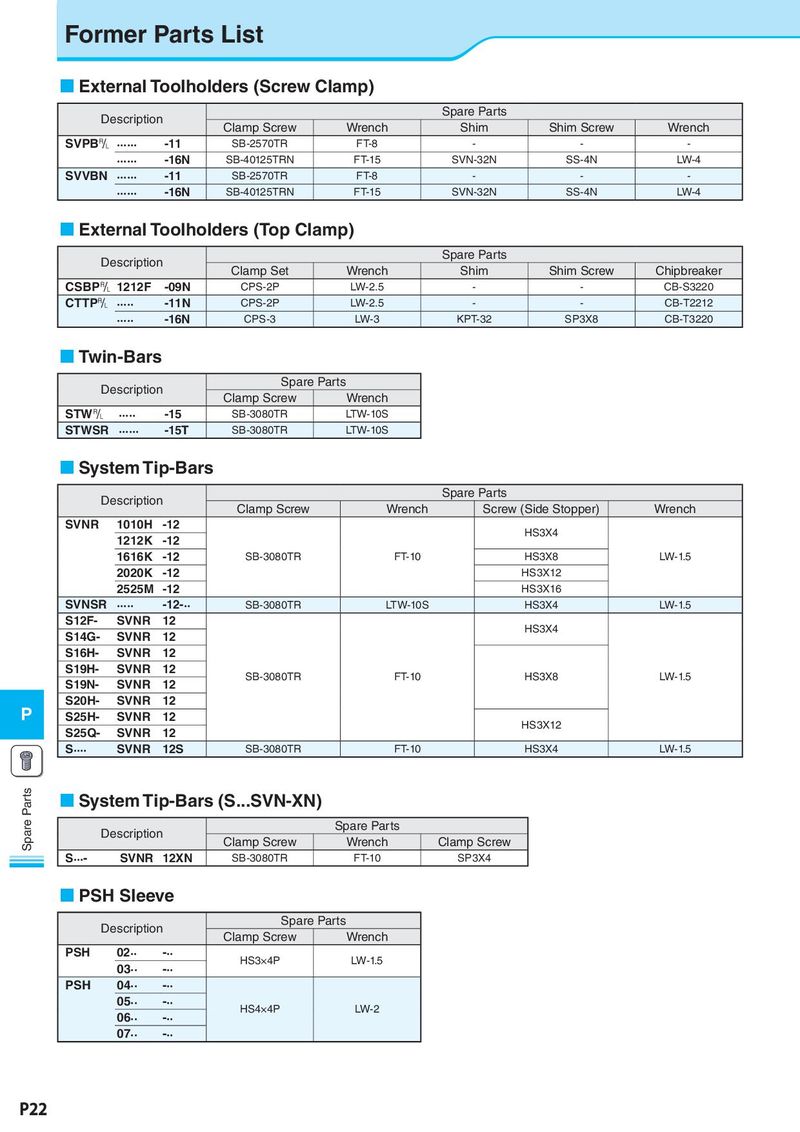

Former Parts List ¢ External Toolholders (Screw Clamp) Description Spare Parts Clamp Screw Wrench Shim Shim Screw Wrench SVPB& ······ -11 SB-2570TR FT-8 - - - ······ -16N SB-40125TRN FT-15 SVN-32N SS-4N LW-4 SVVBN ······ -11 SB-2570TR FT-8 - - - ······ -16N SB-40125TRN FT-15 SVN-32N SS-4N LW-4 ¢ External Toolholders (Top Clamp) Description Spare Parts Clamp Set Wrench Shim Shim Screw Chipbreaker CSBP& 1212F -09N CPS-2P LW-2.5 - - CB-S3220 CTTP& ····· -11N CPS-2P LW-2.5 - - CB-T2212 ····· -16N CPS-3 LW-3 KPT-32 SP3X8 CB-T3220 ¢ Twin-Bars Description Spare Parts Clamp Screw Wrench STW& ····· -15 SB-3080TR LTW-10S STWSR ······ -15T SB-3080TR LTW-10S ¢ System Tip-Bars Description Spare Parts Clamp Screw Wrench Screw (Side Stopper) Wrench SVNR 1010H -12 HS3X4 1212K -12 1616K -12 SB-3080TR FT-10 HS3X8 LW-1.5 2020K -12 HS3X12 2525M -12 HS3X16 SVNSR ····· -12-·· SB-3080TR LTW-10S HS3X4 LW-1.5 S12F- SVNR 12 HS3X4 S14G- SVNR 12 S16H- SVNR 12 S19H- SVNR 12 SB-3080TR FT-10 HS3X8 LW-1.5 S19N- SVNR 12 S20H- SVNR 12 P S25H- SVNR 12 HS3X12 S25Q- SVNR 12 S···· SVNR 12S SB-3080TR FT-10 HS3X4 LW-1.5 Spare Parts ¢ System Tip-Bars (S...SVN-XN) Description Spare Parts Clamp Screw Wrench Clamp Screw S···- SVNR 12XN SB-3080TR FT-10 SP3X4 ¢ PSH Sleeve Description Spare Parts Clamp Screw Wrench PSH 02·· -·· HS3×4P LW-1.5 03·· -·· PSH 04·· -·· 05·· -·· HS4×4P LW-2 06·· -·· 07·· -·· P22
