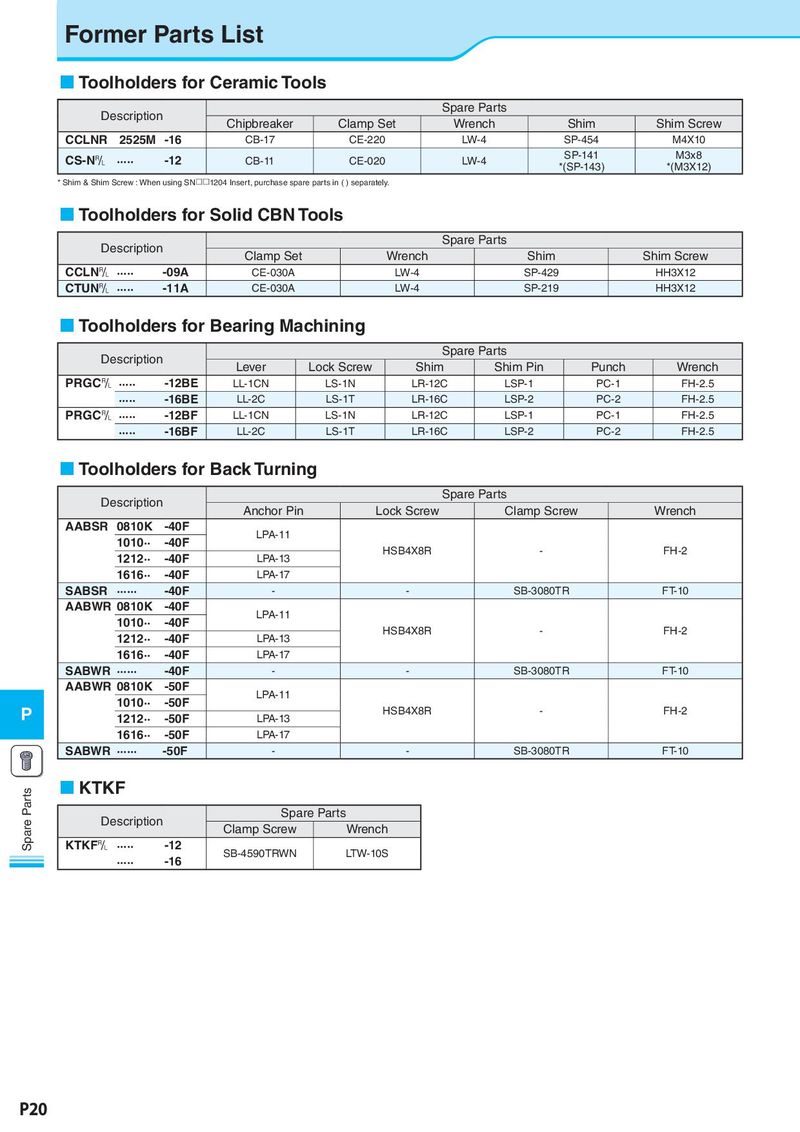

Former Parts List ¢ Toolholders for Ceramic Tools Description Spare Parts Chipbreaker Clamp Set Wrench Shim Shim Screw CCLNR 2525M -16 CB-17 CE-220 LW-4 SP-454 M4X10 CS-N& ····· -12 CB-11 CE-020 LW-4 SP-141 M3x8 *(SP-143) *(M3X12) * Shim & Shim Screw : When using SN1204 Insert, purchase spare parts in ( ) separately. ¢ Toolholders for Solid CBN Tools Description Spare Parts Clamp Set Wrench Shim Shim Screw CCLN& ····· -09A CE-030A LW-4 SP-429 HH3X12 CTUN& ····· -11A CE-030A LW-4 SP-219 HH3X12 ¢ Toolholders for Bearing Machining Description Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench PRGC& ····· -12BE LL-1CN LS-1N LR-12C LSP-1 PC-1 FH-2.5 ····· -16BE LL-2C LS-1T LR-16C LSP-2 PC-2 FH-2.5 PRGC& ····· -12BF LL-1CN LS-1N LR-12C LSP-1 PC-1 FH-2.5 ····· -16BF LL-2C LS-1T LR-16C LSP-2 PC-2 FH-2.5 ¢ Toolholders for Back Turning Description Spare Parts Anchor Pin Lock Screw Clamp Screw Wrench AABSR 0810K -40F LPA-11 1010·· -40F HSB4X8R - FH-2 1212·· -40F LPA-13 1616·· -40F LPA-17 SABSR ······ -40F - - SB-3080TR FT-10 AABWR 0810K -40F LPA-11 1010·· -40F HSB4X8R - FH-2 1212·· -40F LPA-13 1616·· -40F LPA-17 SABWR ······ -40F - - SB-3080TR FT-10 AABWR 0810K -50F LPA-11 P 1010·· -50F HSB4X8R - FH-2 1212·· -50F LPA-13 1616·· -50F LPA-17 SABWR ······ -50F - - SB-3080TR FT-10 Spare Parts ¢ KTKF Description Spare Parts Clamp Screw Wrench KTKF& ····· -12 SB-4590TRWN LTW-10S ····· -16 P20
