Основной каталог Kyocera 2016-2017 - страница 911

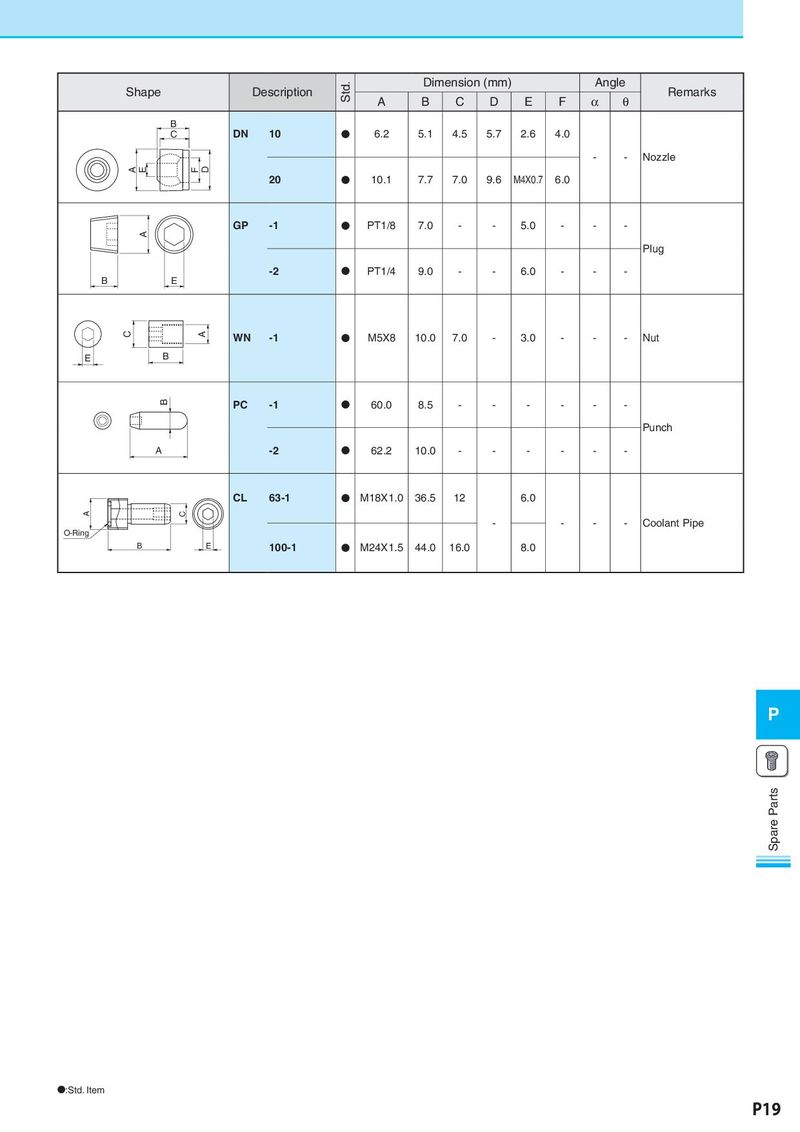

Shape Description Std. Dimension (mm) Angle Remarks A B C D E F α θ B C DN 10 N 6.2 5.1 4.5 5.7 2.6 4.0 - - Nozzle A E F D 20 N 10.1 7.7 7.0 9.6 M4X0.7 6.0 GP -1 N PT1/8 7.0 - - 5.0 - - - A Plug -2 N PT1/4 9.0 - - 6.0 - - - B E C A WN -1 N M5X8 10.0 7.0 - 3.0 - - - Nut E B B PC -1 N 60.0 8.5 - - - - - - Punch A -2 N 62.2 10.0 - - - - - - CL 63-1 N M18X1.0 36.5 12 6.0 A C - - - - Coolant Pipe O-Ring B E 100-1 N M24X1.5 44.0 16.0 8.0 P Spare Parts N:Std. Item P19
