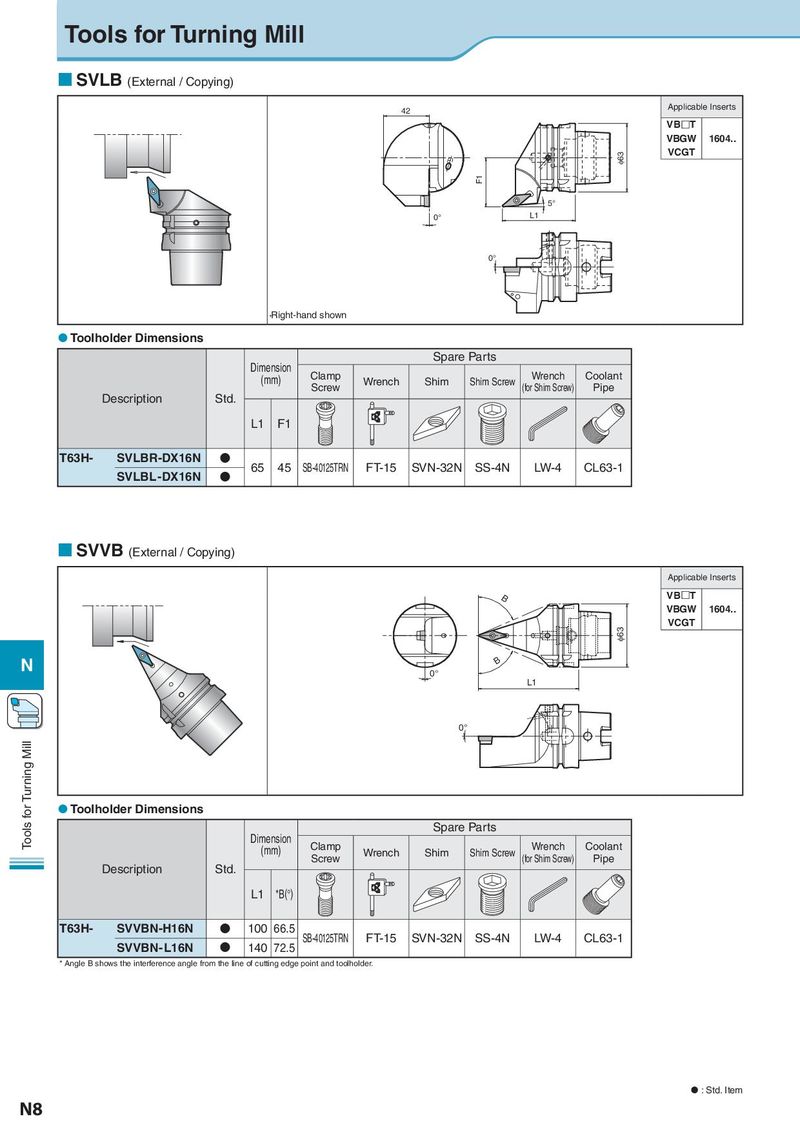

Tools for Turning Mill  SVLB (External / Copying) 42 Applicable Inserts VBT VBGW 1604.. φ63 VCGT F1 5° 0° L1 0° •Right-hand shown  Toolholder Dimensions Spare Parts Dimension Clamp Wrench Coolant (mm) Screw Wrench Shim Shim Screw (for Shim Screw) Pipe Description Std. L1 F1 T63H- SVLBR-DX16N N 65 45 SB-40125TRN FT-15 SVN-32N SS-4N LW-4 CL63-1 SVLBL -DX16N N  SVVB (External / Copying) Applicable Inserts B VBT VBGW 1604.. φ63 VCGT N B 0° L1 0° Tools for Turning Mill  Toolholder Dimensions Spare Parts Dimension Clamp Wrench Coolant (mm) Screw Wrench Shim Shim Screw (for Shim Screw) Pipe Description Std. L1 *B(°) T63H- SVVBN-H16N N 100 66.5 SB-40125TRN FT-15 SVN-32N SS-4N LW-4 CL63-1 SVVBN- L16N N 140 72.5 * Angle B shows the interference angle from the line of cutting edge point and toolholder.  : Std. Item N8
