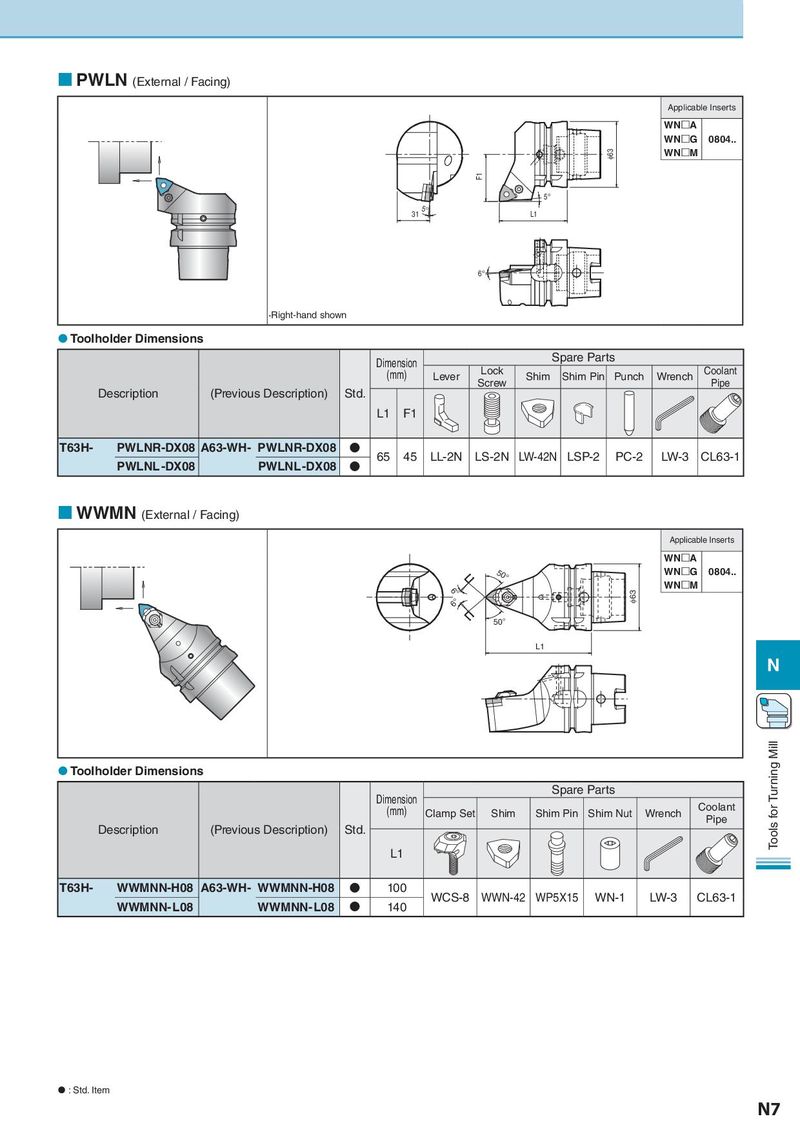

 PWLN (External / Facing) Applicable Inserts WNA WNG 0804.. φ63 WNM F1 5° 31 5° L1 6° •Right-hand shown  Toolholder Dimensions Dimension Spare Parts (mm) Lever Lock Shim Shim Pin Punch Wrench Coolant Screw Pipe Description (Previous Description) Std. L1 F1 T63H- PWLNR-DX08 A63-WH- PWLNR-DX08 N 65 45 LL-2N LS-2N LW-42N LSP-2 PC-2 LW-3 CL63-1 PWLNL -DX08 PWLNL -DX08 N  WWMN (External / Facing) Applicable Inserts WNA 50° WNG 0804.. 6° φ63 WNM 6° 50° L1 N  Toolholder Dimensions Tools for Turning Mill Dimension Spare Parts (mm) Clamp Set Shim Shim Pin Shim Nut Wrench Coolant Pipe Description (Previous Description) Std. L1 T63H- WWMNN-H08 A63-WH- WWMNN-H08 N 100 WCS-8 WWN-42 WP5X15 WN-1 LW-3 CL63-1 WWMNN- L08 WWMNN- L08 N 140  : Std. Item N7
