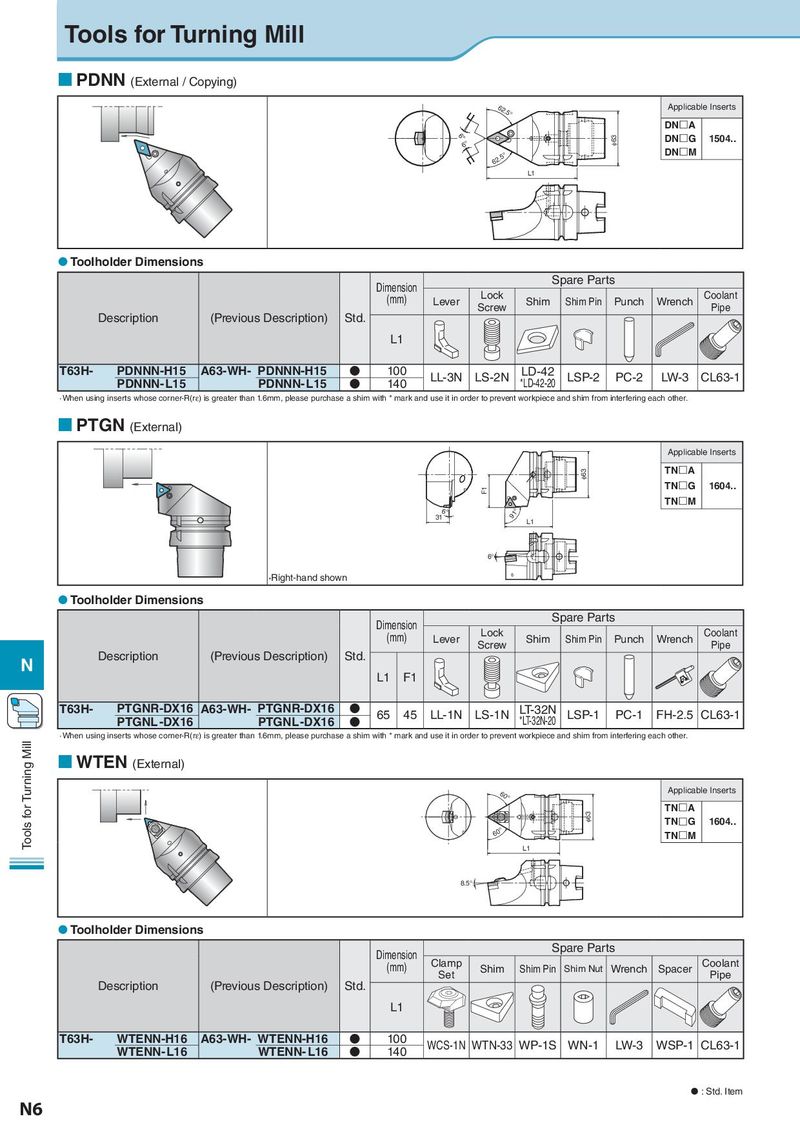

Tools for Turning Mill  PDNN (External / Copying) 62.5° Applicable Inserts DNA 6° φ63 DNG 1504.. 6° DNM 62.5° L1  Toolholder Dimensions Dimension Spare Parts (mm) Lever Lock Shim Shim Pin Punch Wrench Coolant Screw Pipe Description (Previous Description) Std. L1 T63H- PDNNN-H15 A63-WH- PDNNN-H15 N 100 LL-3N LS-2N LD-42 LSP-2 PC-2 LW-3 CL63-1 PDNNN- L15 PDNNN- L15 N 140 *LD-42-20 ·When using inserts whose corner-R(rε) is greater than 1.6mm, please purchase a shim with * mark and use it in order to prevent workpiece and shim from interfering each other.  PTGN (External) Applicable Inserts φ63 TNA F1 TNG 1604.. TNM 6° 91° 31 L1 6°v •Right-hand shown  Toolholder Dimensions Dimension Spare Parts (mm) Lever Lock Shim Shim Pin Punch Wrench Coolant Screw Pipe N Description (Previous Description) Std. L1 F1 T63H- PTGNR-DX16 A63-WH- PTGNR-DX16 N 65 45 LL-1N LS-1N LT-32N LSP-1 PC-1 FH-2.5 CL63-1 PTGNL -DX16 PTGNL -DX16 N *LT-32N-20 ·When using inserts whose corner-R(rε) is greater than 1.6mm, please purchase a shim with * mark and use it in order to prevent workpiece and shim from interfering each other. Mill  WTEN (External) Turning 60° Applicable Inserts Tools for φ63 TNA TNG 1604.. 60° TNM L1 8.5°  Toolholder Dimensions Dimension Spare Parts (mm) Clamp Shim Shim Pin Shim Nut Wrench Spacer Coolant Set Pipe Description (Previous Description) Std. L1 T63H- WTENN-H16 A63-WH- WTENN-H16 N 100 WCS-1N WTN-33 WP-1S WN-1 LW-3 WSP-1 CL63-1 WTENN- L16 WTENN- L16 N 140  : Std. Item N6
