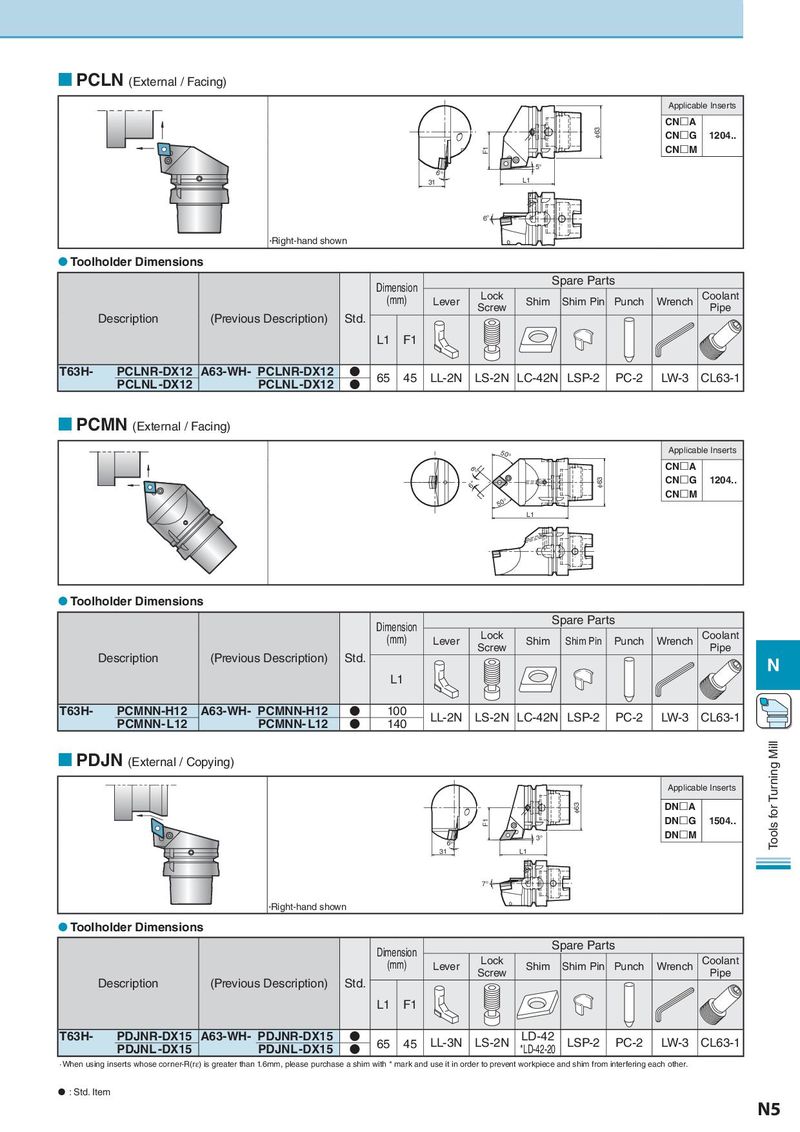

 PCLN (External / Facing) Applicable Inserts φ63 CNA CNG 1204.. F1 CNM 6° 5° 31 L1 6° •Right-hand shown  Toolholder Dimensions Dimension Spare Parts (mm) Lever Lock Shim Shim Pin Punch Wrench Coolant Screw Pipe Description (Previous Description) Std. L1 F1 T63H- PCLNR-DX12 A63-WH- PCLNR-DX12 N 65 45 LL-2N LS-2N LC-42N LSP-2 PC-2 LW-3 CL63-1 PCLNL -DX12 PCLNL -DX12 N  PCMN (External / Facing) 50° Applicable Inserts 6° CNA 6° φ63 CNG 1204.. 50° CNM L1  Toolholder Dimensions Dimension Spare Parts (mm) Lever Lock Shim Shim Pin Punch Wrench Coolant Screw Pipe Description (Previous Description) Std. N L1 T63H- PCMNN-H12 A63-WH- PCMNN-H12 N 100 LL-2N LS-2N LC-42N LSP-2 PC-2 LW-3 CL63-1 PCMNN- L12 PCMNN- L12 N 140  PDJN (External / Copying) Mill Applicable Inserts Tools for Turning φ63 DNA F1 DNG 1504.. 3° DNM 6° 31 L1 7° •Right-hand shown  Toolholder Dimensions Dimension Spare Parts (mm) Lever Lock Shim Shim Pin Punch Wrench Coolant Screw Pipe Description (Previous Description) Std. L1 F1 T63H- PDJNR-DX15 A63-WH- PDJNR-DX15 N 65 45 LL-3N LS-2N LD-42 LSP-2 PC-2 LW-3 CL63-1 PDJNL -DX15 PDJNL -DX15 N *LD-42-20 ·When using inserts whose corner-R(rε) is greater than 1.6mm, please purchase a shim with * mark and use it in order to prevent workpiece and shim from interfering each other.  : Std. Item N5
