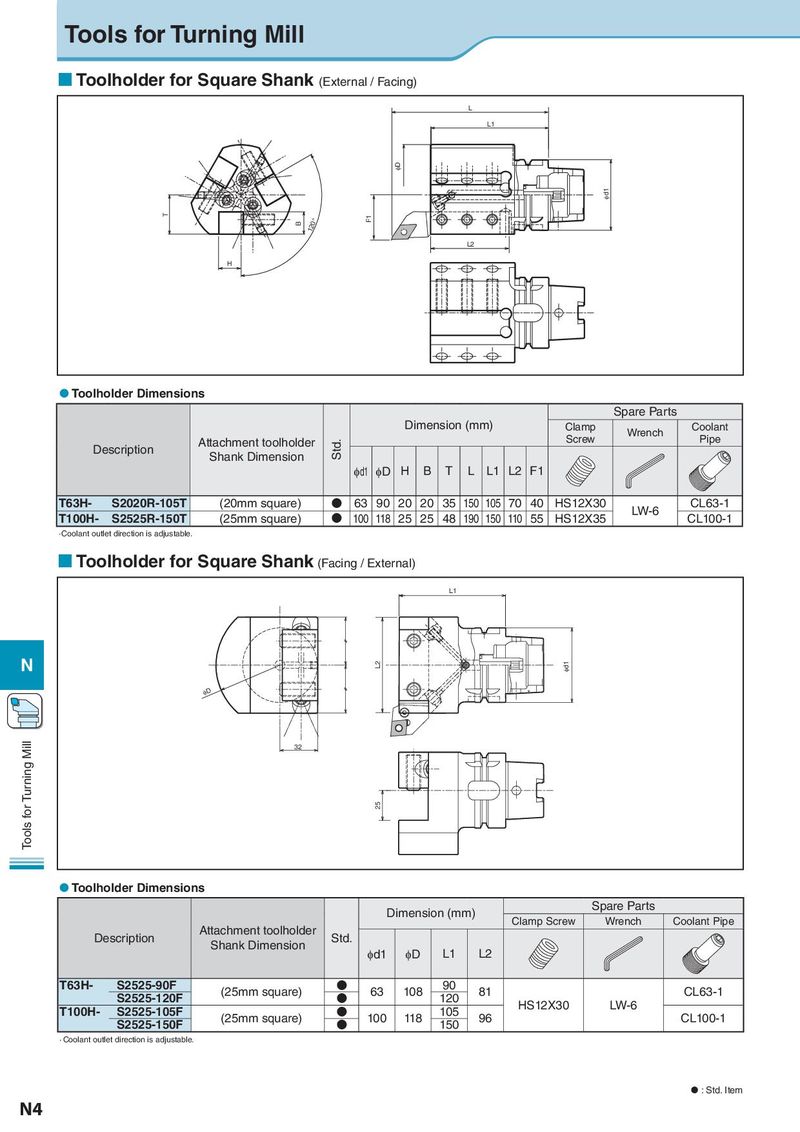

Tools for Turning Mill  Toolholder for Square Shank (External / Facing) L L1 φD φd1 T F1 B 120° L2 H  Toolholder Dimensions Spare Parts Dimension (mm) Clamp Wrench Coolant Attachment toolholder Std. Screw Pipe Description Shank Dimension φd1 φD H B T L L1 L2 F1 T63H- S2020R-105T (20mm square) N 63 90 20 20 35 150 105 70 40 HS12X30 LW-6 CL63-1 T100H- S2525R-150T (25mm square) N 100 118 25 25 48 190 150 110 55 HS12X35 CL100-1 · Coolant outlet direction is adjustable.  Toolholder for Square Shank (Facing / External) L1 N L2 φd1 φD Mill 32 for Turning 25 Tools  Toolholder Dimensions Dimension (mm) Spare Parts Attachment toolholder Clamp Screw Wrench Coolant Pipe Description Shank Dimension Std. φd1 φD L1 L2 T63H- S2525-90F (25mm square) N 63 108 90 81 CL63-1 S2525-120F N 120 HS12X30 LW-6 T100H- S2525-105F (25mm square) N 100 118 105 96 CL100-1 S2525-150F N 150 · Coolant outlet direction is adjustable.  : Std. Item N4
