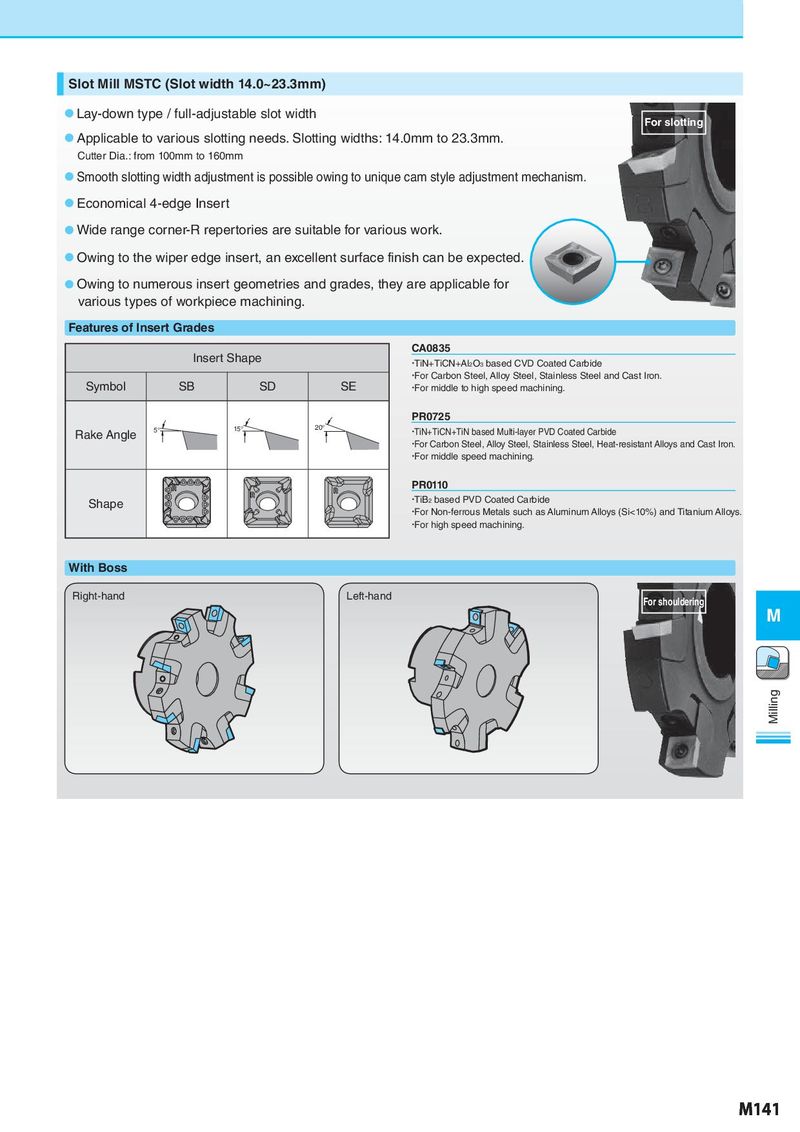

Slot Mill MSTC (Slot width 14.0~23.3mm) ● Lay-down type / full-adjustable slot width For slotting ● Applicable to various slotting needs. Slotting widths: 14.0mm to 23.3mm. Cutter Dia.: from 100mm to 160mm ● Smooth slotting width adjustment is possible owing to unique cam style adjustment mechanism. ● Economical 4-edge Insert ● Wide range corner-R repertories are suitable for various work. ● Owing to the wiper edge insert, an excellent surface finish can be expected. ● Owing to numerous insert geometries and grades, they are applicable for various types of workpiece machining. Features of Insert Grades Insert Shape CA0835 ・TiN+TiCN+Al2O3 based CVD Coated Carbide ・For Carbon Steel, Alloy Steel, Stainless Steel and Cast Iron. Symbol SB SD SE ・For middle to high speed machining. PR0725 Rake Angle 5° 15° 20° ・TiN+TiCN+TiN based Multi-layer PVD Coated Carbide ・For Carbon Steel, Alloy Steel, Stainless Steel, Heat-resistant Alloys and Cast Iron. ・For middle speed machining. PR0110　 Shape ・TiB2 based PVD Coated Carbide ・For Non-ferrous Metals such as Aluminum Alloys (Si<10%) and Titanium Alloys. ・For high speed machining. With Boss Right-hand Left-hand For shouldering M Milling M141
