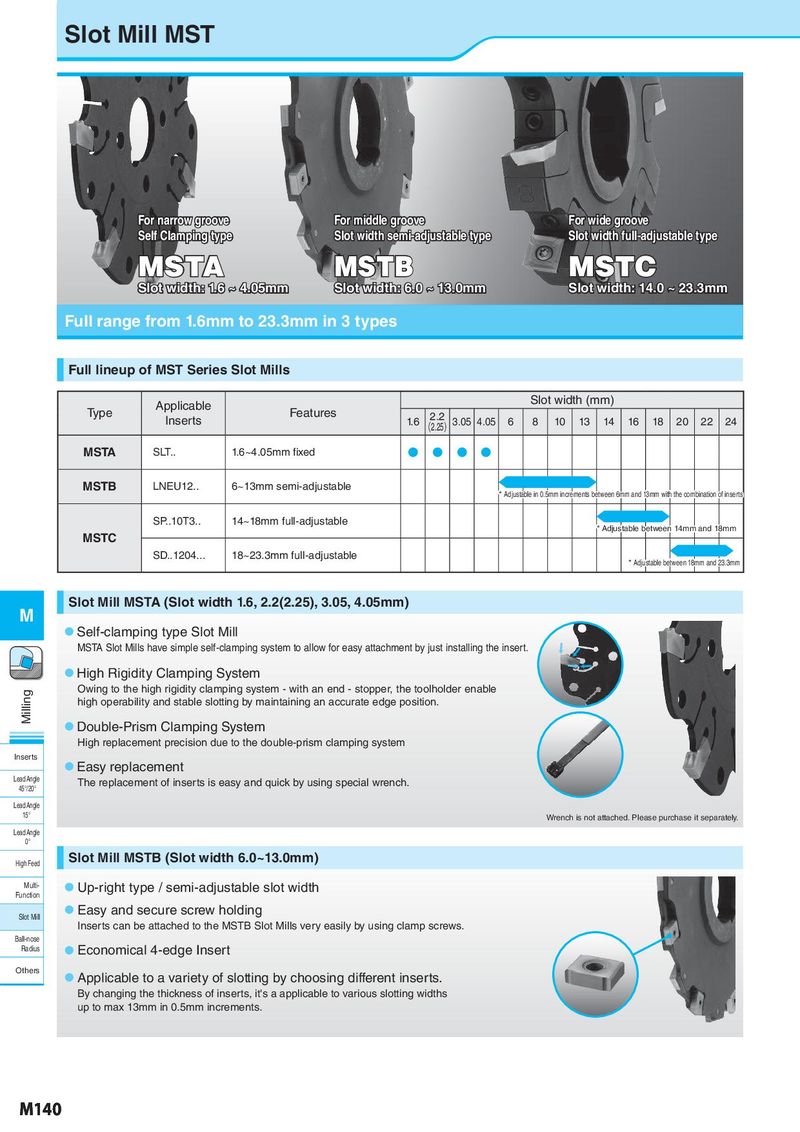

Slot Mill MST For narrow groove For middle groove For wide groove Self Clamping type Slot width semi-adjustable type Slot width full-adjustable type MSTA MSTB MSTC Slot width: 1.6 ~ 4.05mm Slot width: 6.0 ~ 13.0mm Slot width: 14.0 ~ 23.3mm Full range from 1.6mm to 23.3mm in 3 types Full lineup of MST Series Slot Mills Applicable Slot width (mm) Type Inserts Features 1.6 2.2 3.05 4.05 6 8 10 13 14 16 18 20 22 24 （2.25） MSTA SLT.. 1.6~4.05mm fixed ● ● ● ● MSTB LNEU12.. 6~13mm semi-adjustable * Adjustable in 0.5mm increments between 6mm and 13mm with the combination of inserts SP..10T3.. 14~18mm full-adjustable * Adjustable between 14mm and 18mm MSTC SD..1204... 18~23.3mm full-adjustable * Adjustable between 18mm and 23.3mm M Slot Mill MSTA (Slot width 1.6, 2.2(2.25), 3.05, 4.05mm) ● Self-clamping type Slot Mill MSTA Slot Mills have simple self-clamping system to allow for easy attachment by just installing the insert. ● High Rigidity Clamping System Milling Owing to the high rigidity clamping system - with an end - stopper, the toolholder enable high operability and stable slotting by maintaining an accurate edge position. ● Double-Prism Clamping System High replacement precision due to the double-prism clamping system Inserts ● Easy replacement Lead Angle The replacement of inserts is easy and quick by using special wrench. 45°/20° Lead Angle 15° Wrench is not attached. Please purchase it separately. Lead Angle 0° High Feed Slot Mill MSTB (Slot width 6.0~13.0mm) Multi- ● Up-right type / semi-adjustable slot width Function Slot Mill ● Easy and secure screw holding Inserts can be attached to the MSTB Slot Mills very easily by using clamp screws. Ball-nose Radius ● Economical 4-edge Insert Others ● Applicable to a variety of slotting by choosing different inserts. By changing the thickness of inserts, it's a applicable to various slotting widths up to max 13mm in 0.5mm increments. M140
