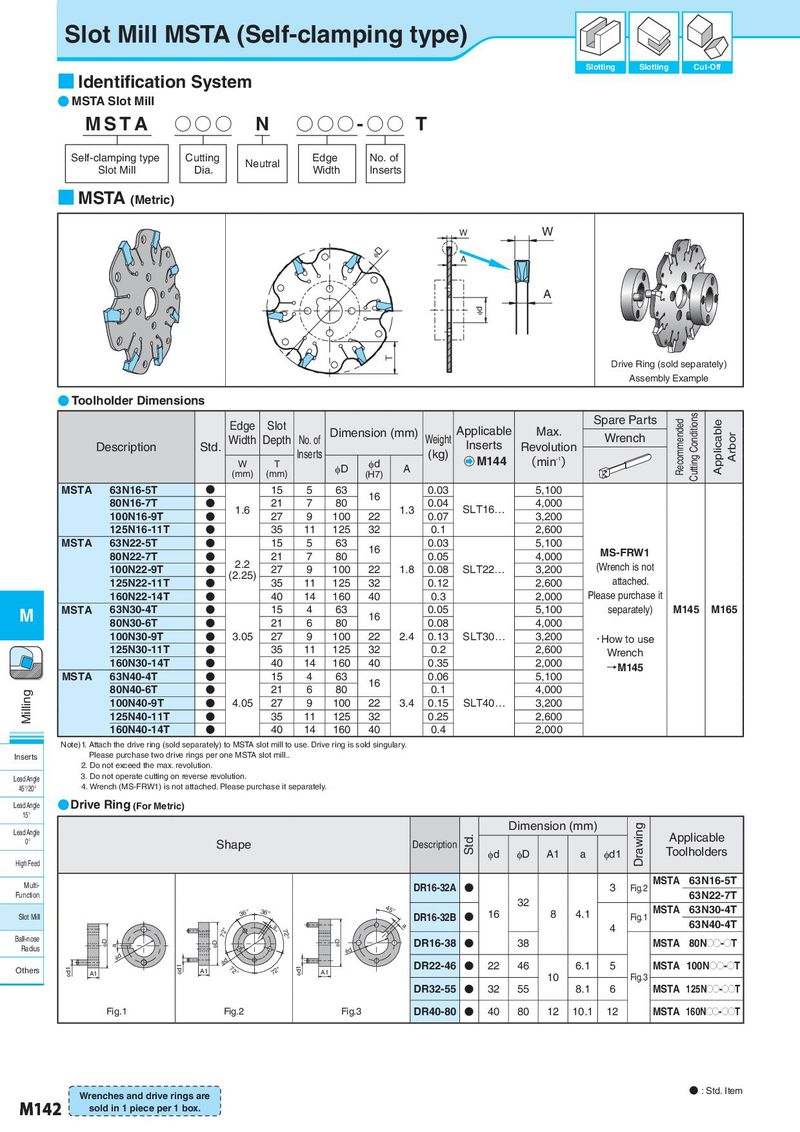

Slot Mill MSTA (Self-clamping type) Slotting Slotting Cut-Off ■ Identification System ● MSTA Slot Mill MSTA ○○○ N ○○○-○○ T Self-clamping type Cutting Neutral Edge No. of Slot Mill Dia. Width Inserts ■ MSTA (Metric) W W ID A A Id T Drive Ring (sold separately) Assembly Example ● Toolholder Dimensions Edge Slot Spare Parts Recommended Cutting Conditions Applicable Width Depth No. of Dimension (mm) Weight Applicable Max. Wrench Arbor Description Std. Inserts (kg) Inserts Revolution W T φD φd A M144 （min-1） (mm) (mm) (H7) MSTA 63N16-5T N 15 5 63 16 0.03 5,100 80N16-7T N 1.6 21 7 80 1.3 0.04 SLT16… 4,000 100N16-9T N 27 9 100 22 0.07 3,200 125N16-11T N 35 11 125 32 0.1 2,600 MSTA 63N22-5T N 15 5 63 16 0.03 5,100 MS-FRW1 80N22-7T N 2.2 21 7 80 0.05 4,000 100N22-9T N (2.25) 27 9 100 22 1.8 0.08 SLT22… 3,200 (Wrench is not 125N22-11T N 35 11 125 32 0.12 2,600 attached. 160N22-14T N 40 14 160 40 0.3 2,000 Please purchase it M MSTA 63N30-4T N 15 4 63 16 0.05 5,100 separately) M145 M165 80N30-6T N 21 6 80 0.08 4,000 100N30-9T N 3.05 27 9 100 22 2.4 0.13 SLT30… 3,200 ･How to use 125N30-11T N 35 11 125 32 0.2 2,600 Wrench 160N30-14T N 40 14 160 40 0.35 2,000 →M145 MSTA 63N40-4T N 15 4 63 16 0.06 5,100 Milling 80N40-6T N 21 6 80 0.1 4,000 100N40-9T N 4.05 27 9 100 22 3.4 0.15 SLT40… 3,200 125N40-11T N 35 11 125 32 0.25 2,600 160N40-14T N 40 14 160 40 0.4 2,000 Note) 1. Attach the drive ring (sold separately) to MSTA slot mill to use. Drive ring is sold singulary. Inserts Please purchase two drive rings per one MSTA slot mill.. 2. Do not exceed the max. revolution. Lead Angle 3. Do not operate cutting on reverse revolution. 45°/20° 4. Wrench (MS-FRW1) is not attached. Please purchase it separately. Lead Angle ● Drive Ring (For Metric) 15° Lead Angle Dimension (mm) Drawing 0° Shape Description Std. Applicable φd φD A1 a φd1 Toolholders High Feed Multi- DR16-32A N 3 Fig.2 MSTA 63N16-5T Function 32 63N22-7T 36° 36° 45° DR16-32B 16 8 4.1 MSTA 63N30-4T Slot Mill N Fig.1 63N40-4T a a 4 Ball-nose 72° 72° Radius ID a ID ID DR16-38 N 38 MSTA 80NOO-OT Id Id Id1 Id 72° Id1 DR22-46 N 22 46 6.1 5 MSTA 100NOO-OT Others Id1 A1 A1 72° A1 10 Fig.3 DR32-55 N 32 55 8.1 6 MSTA 125NOO-OOT Fig.1 Fig.2 Fig.3 DR40-80 N 40 80 12 10.1 12 MSTA 160NOO-OOT Wrenches and drive rings are ● : Std. Item M142 sold in 1 piece per 1 box.
