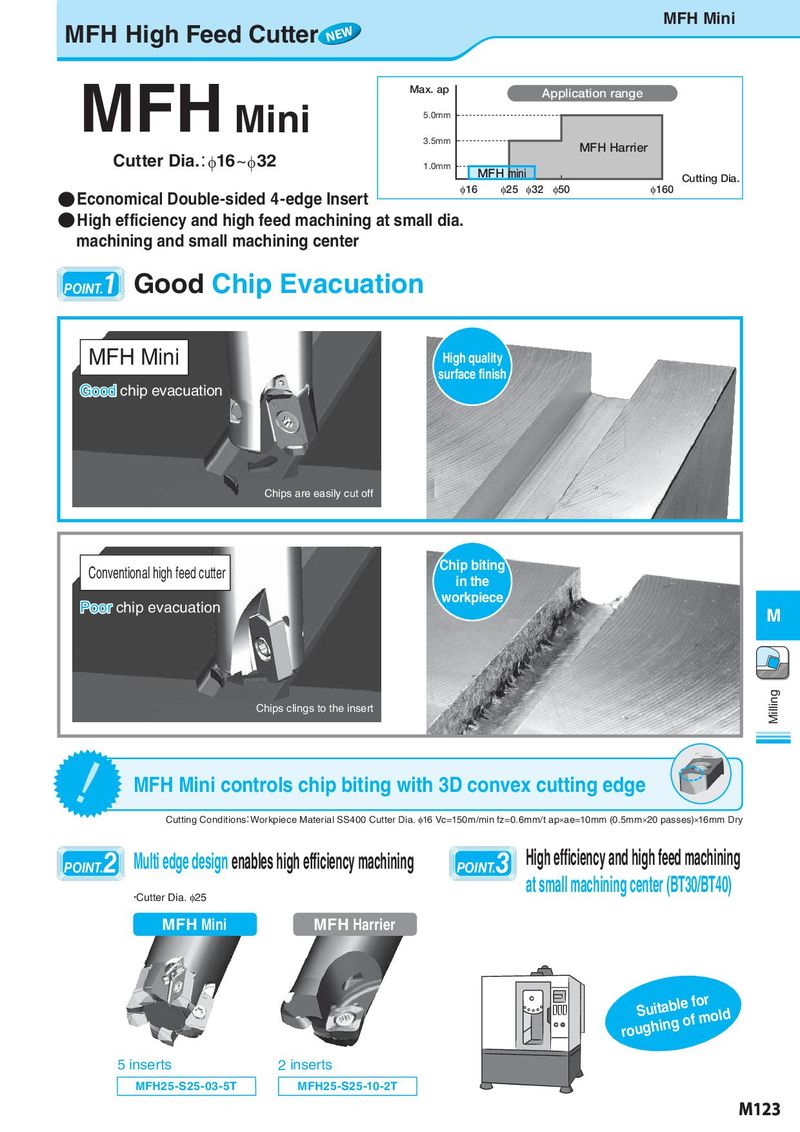

MFH High Feed Cutter NEW MFH Mini MFH Mini Max. ap Application range 5.0mm 3.5mm MFH Harrier Cutter Dia： . φ16~φ32 1.0mm MFH mini Cutting Dia. ● Economical Double-sided 4-edge Insert φ16 φ25 φ32 φ50 φ160 ● High efficiency and high feed machining at small dia. machining and small machining center 1 POINT. Good Chip Evacuation MFH Mini High quality surface finish Good chip evacuation Chips are easily cut off Conventional high feed cutter Chip biting in the Poor chip evacuation workpiece M Chips clings to the insert Milling ! MFH Mini controls chip biting with 3D convex cutting edge Cutting Conditions：Workpiece Material SS400 Cutter Dia. φ16 Vc=150m/min fz=0.6mm/t ap×ae=10mm (0.5mm×20 passes)×16mm Dry 2 POINT. Multi edge design enables high efficiency machining 3 POINT. High efficiency and high feed machining ・Cutter Dia. φ25 at small machining center (BT30/BT40) MFH Mini MFH Harrier rouSguhitianbgleoffomr old 5 inserts 2 inserts MFH25-S25-03-5T MFH25-S25-10-2T M123
