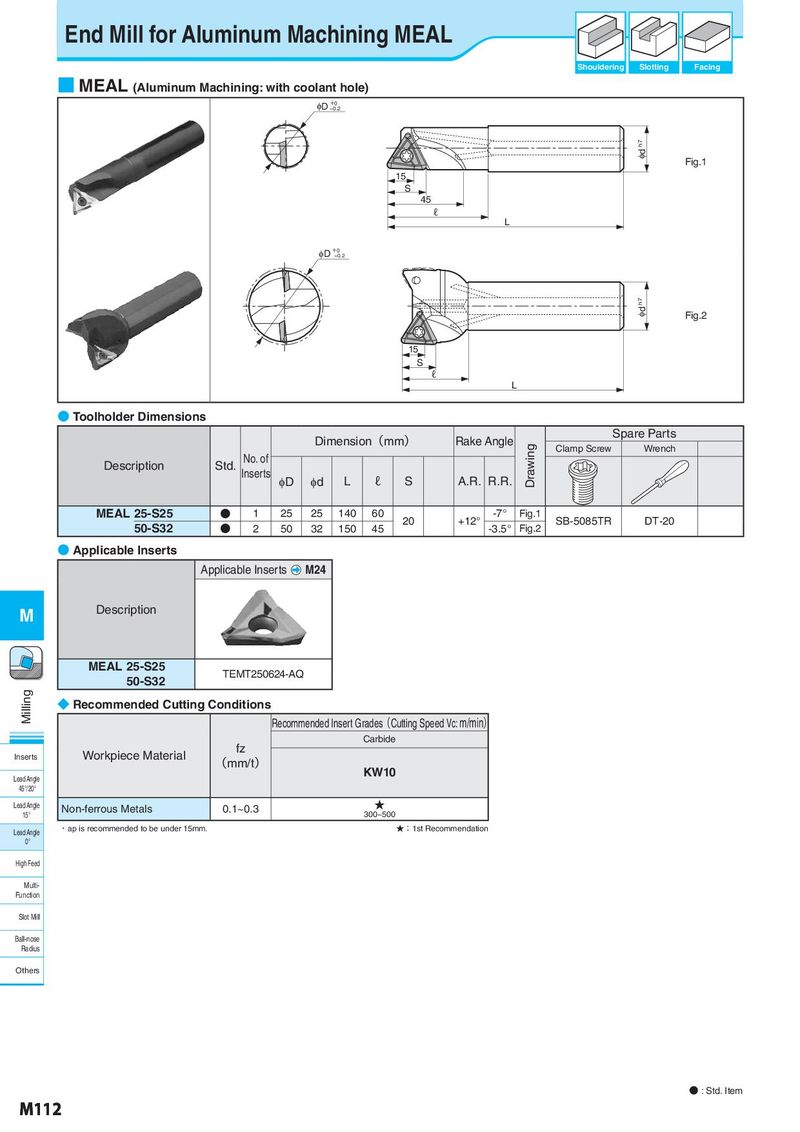

End Mill for Aluminum Machining MEAL Shouldering Slotting Facing ■ MEAL (Aluminum Machining: with coolant hole) φD ＋0 −0.2 φd h7 Fig.1 15 S 45 ℓ L φD ＋0 −0.2 φd h7 Fig.2 15 S ℓ L ● Toolholder Dimensions Dimension（mm） Rake Angle Spare Parts Drawing Clamp Screw Wrench Description Std. No. of Inserts φD φd L ℓ S A.R. R.R. MEAL 25-S25 ● 1 25 25 140 60 20 +12° -7° Fig.1 SB-5085TR DT-20 50-S32 ● 2 50 32 150 45 -3.5° Fig.2 ● Applicable Inserts Applicable Inserts M24 M Description MEAL 25-S25 TEMT250624-AQ 50-S32 Milling ◆ Recommended Cutting Conditions Recommended Insert Grades（Cutting Speed Vc: m/min） fz Carbide Inserts Workpiece Material （mm/t） Lead Angle KW10 45°/20° Lead Angle Non-ferrous Metals 0.1~0.3 ★ 15° 300~500 Lead Angle ・ap is recommended to be under 15mm. ★：1st Recommendation 0° High Feed Multi- Function Slot Mill Ball-nose Radius Others ● : Std. Item M112
