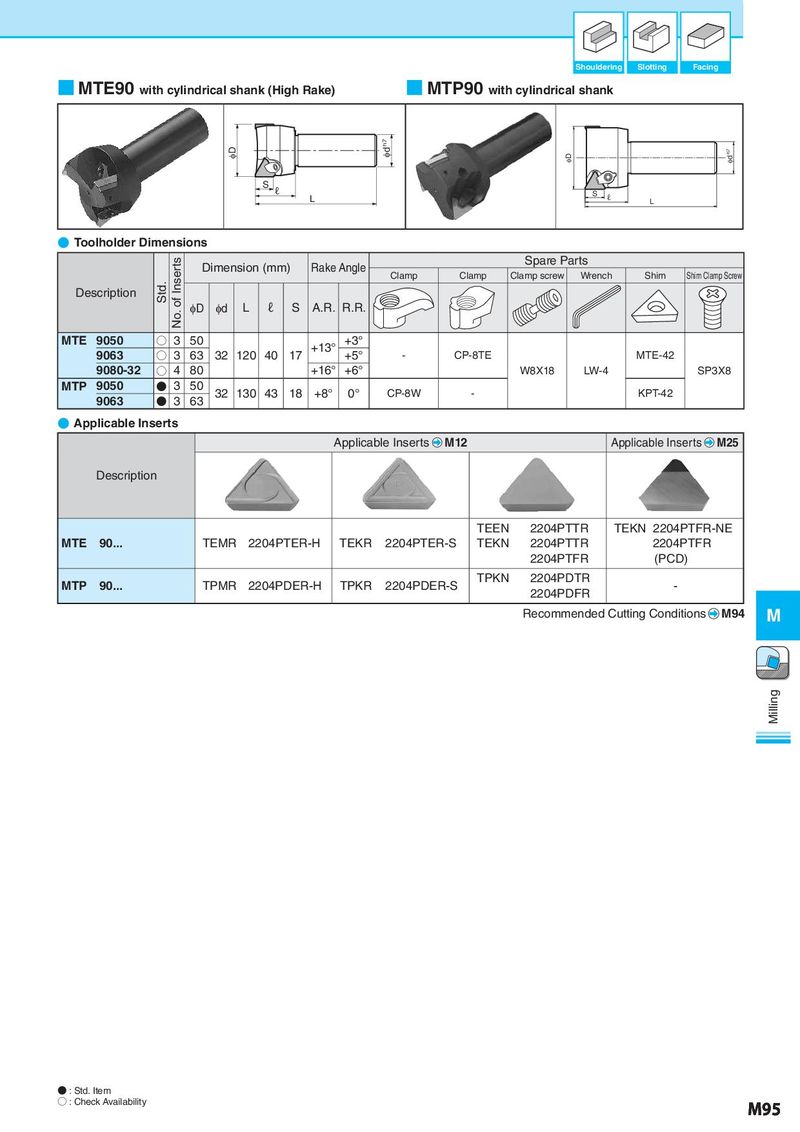

Shouldering Slotting Facing ■ MTE90 with cylindrical shank (High Rake) ■ MTP90 with cylindrical shank φD φd h7 φD φd h7 S ℓ L S ℓ L ● Toolholder Dimensions No. of Inserts Dimension (mm) Rake Angle Spare Parts Clamp Clamp Clamp screw Wrench Shim Shim Clamp Screw Description Std. φD φd L ℓ S A.R. R.R. MTE 9050 ○ 3 50 +13° +3° 9063 ○ 3 63 32 120 40 17 +5° - CP-8TE MTE-42 9080-32 ○ 4 80 +16° +6° W8X18 LW-4 SP3X8 MTP 9050 ● 3 50 32 130 43 18 +8° 0° CP-8W - KPT-42 9063 ● 3 63 ● Applicable Inserts Applicable Inserts M12 Applicable Inserts M25 Description TEEN 2204PTTR TEKN 2204PTFR-NE MTE　90... TEMR 2204PTER-H TEKR 2204PTER-S TEKN 2204PTTR 2204PTFR 2204PTFR (PCD) MTP　90... TPMR 2204PDER-H TPKR 2204PDER-S TPKN 2204PDTR - 2204PDFR Recommended Cutting Conditions M94 M Milling ● : Std. Item ○ : Check Availability M95
