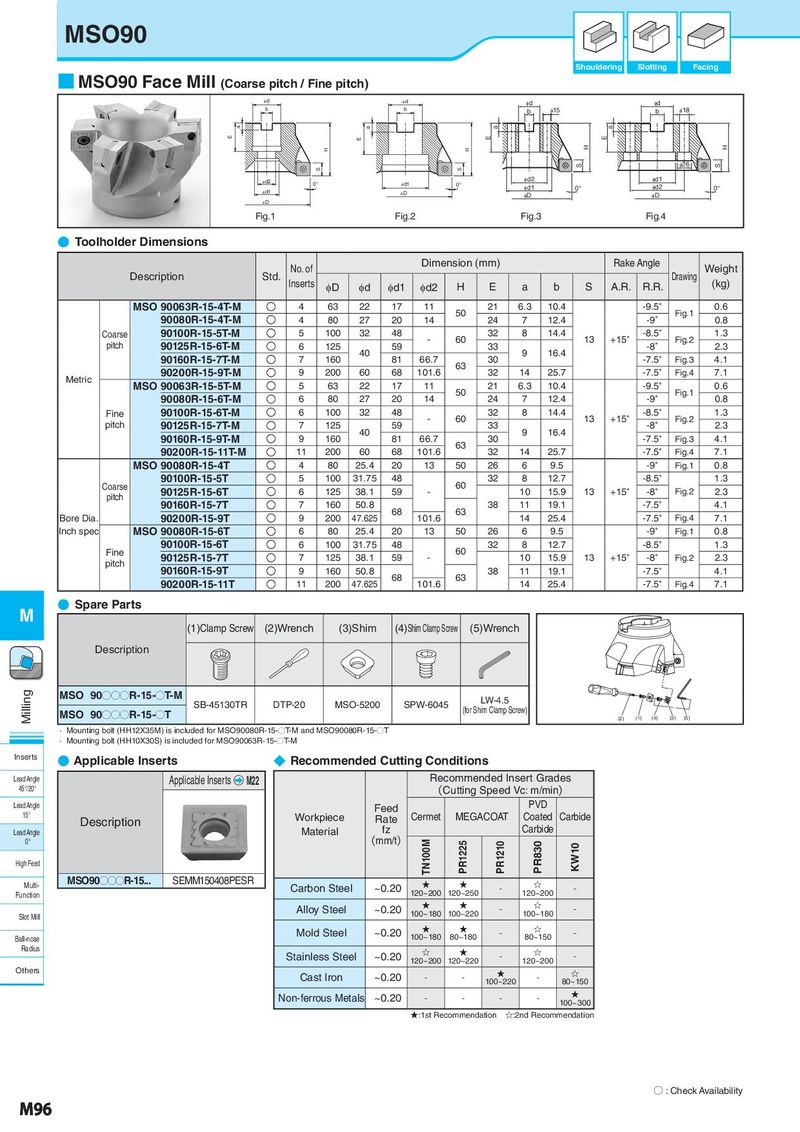

MSO90 Shouldering Slotting Facing ■ MSO90 Face Mill (Coarse pitch / Fine pitch) φφdd φφdd Id Id bb bb b I15 b I18 aa aa a a EE EE E E HH HH H H SS SS S I26 S φφdd22 00°° φφdd11 00°° Id2 Id1 φφdd11 Id1 0° Id2 0° φφDD ID ID φφDD Fig.1　　　 　Fig.2　 　Fig.3　 　Fig.4　　 MSO90___R-15-_T Fig4 MSO90___R-15-_T Fig3 ● Toolholder Dimensions No. of Dimension (mm) Rake Angle Weight Description Std. Inserts Drawing (kg) φD φd φd1 φd2 H E a b S A.R. R.R. MSO 90063R-15-4T-M O 4 63 22 17 11 50 21 6.3 10.4 -9.5ﾟ Fig.1 0.6 90080R-15-4T-M O 4 80 27 20 14 24 7 12.4 -9ﾟ 0.8 Coarse 90100R-15-5T-M O 5 100 32 48 - 60 32 8 14.4 13 +15ﾟ -8.5ﾟ Fig.2 1.3 pitch 90125R-15-6T-M O 6 125 40 59 33 9 16.4 -8ﾟ 2.3 90160R-15-7T-M O 7 160 81 66.7 63 30 -7.5ﾟ Fig.3 4.1 Metric 90200R-15-9T-M O 9 200 60 68 101.6 32 14 25.7 -7.5ﾟ Fig.4 7.1 MSO 90063R-15-5T-M O 5 63 22 17 11 50 21 6.3 10.4 -9.5ﾟ Fig.1 0.6 90080R-15-6T-M O 6 80 27 20 14 24 7 12.4 -9ﾟ 0.8 Fine 90100R-15-6T-M O 6 100 32 48 - 60 32 8 14.4 13 +15ﾟ -8.5ﾟ Fig.2 1.3 pitch 90125R-15-7T-M O 7 125 40 59 33 9 16.4 -8ﾟ 2.3 90160R-15-9T-M O 9 160 81 66.7 63 30 -7.5ﾟ Fig.3 4.1 90200R-15-11T-M O 11 200 60 68 101.6 32 14 25.7 -7.5ﾟ Fig.4 7.1 MSO 90080R-15-4T O 4 80 25.4 20 13 50 26 6 9.5 -9ﾟ Fig.1 0.8 Coarse 90100R-15-5T O 5 100 31.75 48 60 32 8 12.7 -8.5ﾟ 1.3 pitch 90125R-15-6T O 6 125 38.1 59 - 10 15.9 13 +15ﾟ -8ﾟ Fig.2 2.3 90160R-15-7T O 7 160 50.8 68 63 38 11 19.1 -7.5ﾟ 4.1 Bore Dia. 90200R-15-9T O 9 200 47.625 101.6 14 25.4 -7.5ﾟ Fig.4 7.1 Inch spec MSO 90080R-15-6T O 6 80 25.4 20 13 50 26 6 9.5 -9ﾟ Fig.1 0.8 Fine 90100R-15-6T O 6 100 31.75 48 60 32 8 12.7 -8.5ﾟ 1.3 pitch 90125R-15-7T O 7 125 38.1 59 - 10 15.9 13 +15ﾟ -8ﾟ Fig.2 2.3 90160R-15-9T O 9 160 50.8 68 63 38 11 19.1 -7.5ﾟ 4.1 90200R-15-11T O 11 200 47.625 101.6 14 25.4 -7.5ﾟ Fig.4 7.1 M ● Spare Parts (1)Clamp Screw (2)Wrench (3)Shim (4)Shim Clamp Screw (5)Wrench Description Milling MSO 90OOOR-15-OT-M LW-4.5 SB-45130TR DTP-20 MSO-5200 SPW-6045 (for Shim Clamp Screw) MSO 90OOOR-15-OT (2) (1) (4) (3) (5) · Mounting bolt (HH12X35M) is included for MSO90080R-15-OT-M and MSO90080R-15-OT · Mounting bolt (HH10X30S) is included for MSO90063R-15-OT-M Inserts ● Applicable Inserts ◆ Recommended Cutting Conditions Lead Angle Applicable Inserts M22 Recommended Insert Grades 45°/20° （Cutting Speed Vc: m/min） Lead Angle Feed PVD 15° Description Workpiece Rate Cermet MEGACOAT Coated Carbide Lead Angle Material fz Carbide 0° （mm/t） TN100M PR1225 PR1210 PR830 KW10 High Feed Multi- MSO90OOOR-15... SEMM150408PESR Carbon Steel ~0.20 ★ ★ - ☆ - Function 120~200 120~250 120~200 Alloy Steel ~0.20 ★ ★ - ☆ - Slot Mill 100~180 100~220 100~180 Mold Steel ~0.20 ★ ★ - ☆ - Ball-nose 100~180 80~180 80~150 Radius Stainless Steel ~0.20 ☆ ★ ☆ 120~200 120~220 - 120~200 - Others Cast Iron ~0.20 - - ★ - ☆ 100~220 80~150 Non-ferrous Metals ~0.20 - - - - ★ 100~300 ★:1st Recommendation　☆:2nd Recommendation ○ : Check Availability M96
