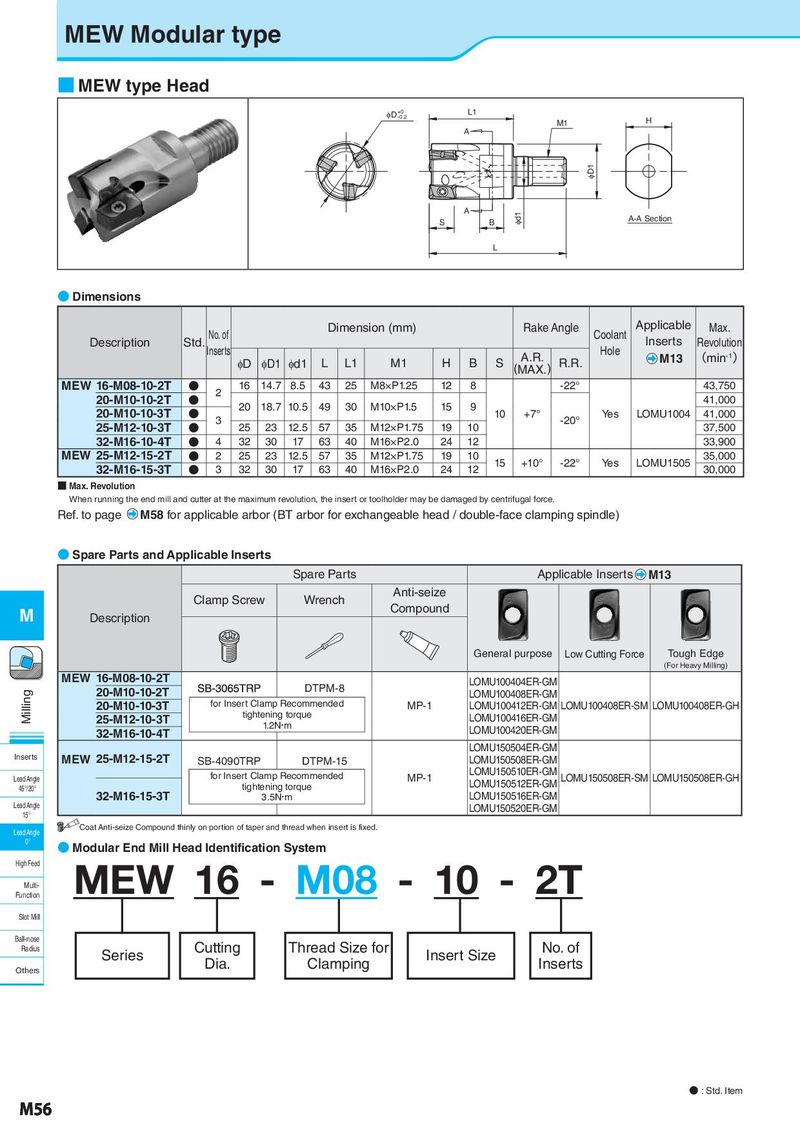

MEW Modular type ■ MEW type Head φD +0 L1 -0.2 H M1 A φD1 A φd1 S B A-A Section L ● Dimensions No. of Dimension (mm) Rake Angle Coolant Applicable Max. Description Std. Inserts Hole Inserts Revolution φD φD1 φd1 L L1 M1 H B S A.R. R.R. M13 （min-1） (MAX.) MEW 16-M08-10-2T ● 2 16 14.7 8.5 43 25 M8×P1.25 12 8 -22° 43,750 20-M10-10-2T ● 20 18.7 10.5 49 30 M10×P1.5 15 9 41,000 20-M10-10-3T ● 3 10 +7° -20° Yes LOMU1004 41,000 25-M12-10-3T ● 25 23 12.5 57 35 M12×P1.75 19 10 37,500 32-M16-10-4T ● 4 32 30 17 63 40 M16×P2.0 24 12 33,900 MEW 25-M12-15-2T ● 2 25 23 12.5 57 35 M12×P1.75 19 10 15 +10° -22° Yes LOMU1505 35,000 32-M16-15-3T ● 3 32 30 17 63 40 M16×P2.0 24 12 30,000 ■ Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Ref. to page M58 for applicable arbor (BT arbor for exchangeable head / double-face clamping spindle) ● Spare Parts and Applicable Inserts Spare Parts Applicable Inserts M13 Clamp Screw Wrench Anti-seize M Description Compound General purpose Low Cutting Force Tough Edge (For Heavy Milling) MEW 16-M08-10-2T DTPM-8 LOMU100404ER-GM Milling 20-M10-10-2T LOMU100408ER-GM 20-M10-10-3T for Insert Clamp Recommended MP-1 LOMU100412ER-GM LOMU100408ER-SM LOMU100408ER-GH 25-M12-10-3T tightening torque LOMU100416ER-GM 32-M16-10-4T 1.2N・m LOMU100420ER-GM LOMU150504ER-GM Inserts MEW 25-M12-15-2T SB-4090TRP DTPM-15 LOMU150508ER-GM Lead Angle for Insert Clamp Recommended MP-1 LOMU150510ER-GM LOMU150508ER-SM LOMU150508ER-GH 45°/20° tightening torque LOMU150512ER-GM 32-M16-15-3T 3.5N・m LOMU150516ER-GM Lead Angle LOMU150520ER-GM 15° Lead Angle Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. 0° ● Modular End Mill Head Identification System High Feed MEW 16 - M08 - 10 - 2T Multi- Function Slot Mill Ball-nose Cutting Thread Size for No. of Radius Series Insert Size Others Dia. Clamping Inserts ● : Std. Item M56
