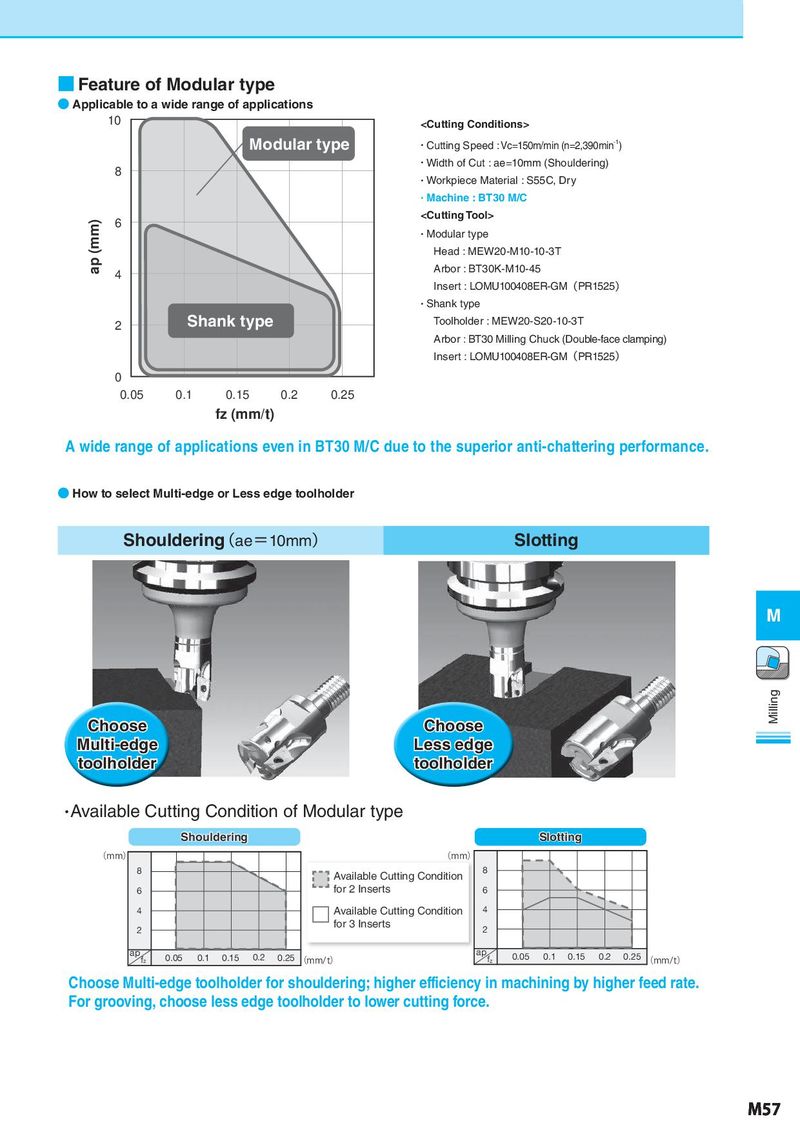

■ Feature of Modular type ● Applicable to a wide range of applications 　 10 Modular type ・Cutting Speed : Vc=150m/min (n=2,390min-1) 8 ・Width of Cut : ae=10mm (Shouldering) ・Workpiece Material : S55C, Dry ・‌Machine : BT30 M/C ap (mm) 6 ・Modular type Head : MEW20-M10-10-3T 4 Arbor : BT30K-M10-45 Insert : LOMU100408ER-GM（PR1525） ・Shank type 2 Shank type Toolholder : MEW20-S20-10-3T Arbor : BT30 Milling Chuck (Double-face clamping) Insert : LOMU100408ER-GM（PR1525） 0 0.05 0.1 0.15 0.2 0.25 fz (mm/t) A wide range of applications even in BT30 M/C due to the superior anti-chattering performance. ● How to select Multi-edge or Less edge toolholder Shouldering（ae＝10mm） Slotting M Choose Choose Milling Multi-edge Less edge toolholder toolholder ・Available Cutting Condition of Modular type Shouldering Slotting （mm） （mm） 8 Available Cutting Condition 8 6 for 2 Inserts 6 4 Available Cutting Condition 4 2 for 3 Inserts 2 ap fz 0.05 0.1 0.15 0.2 0.25 （mm/t） ap fz 0.05 0.1 0.15 0.2 0.25 （mm/t） Choose Multi-edge toolholder for shouldering; higher efficiency in machining by higher feed rate. For grooving, choose less edge toolholder to lower cutting force. M57
